Brand: JVC
Category: Camcorder
Document Type: Manual
Language: EN

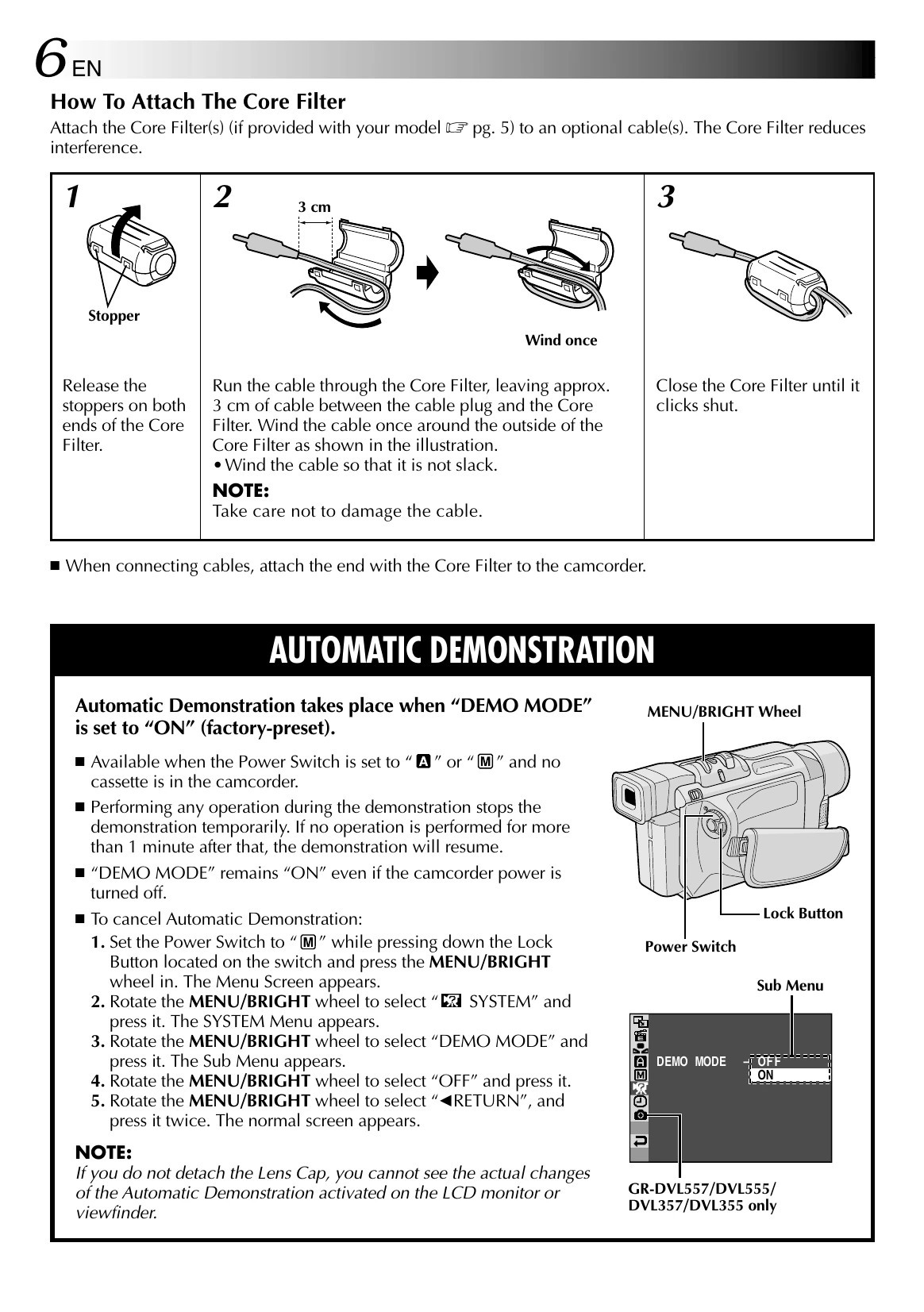

Manual for GR-DVL557
Uploaded: Aug. 10, 2025, 12:36 a.m.
Warranty Information
None
Getting Started
- Power: Charging the battery pack or using AC power.
- Grip & Viewfinder Adjustment: Customize for comfortable shooting.
- Strap & Tripod Mounting: Securely attach the camcorder.
- Date/Time Settings: Set the internal clock.
- Cassette Loading: Insert and eject Mini DV cassettes properly.
- Recording Mode: Select between SP (Standard Play) and LP (Long Play).
- Memory Card: Load and unload SD/MultiMediaCards for still images.
- Picture Quality: Choose between FINE and STANDARD settings.
Video Recording
- Basic Recording: Start and stop recording, adjust display brightness.
- Journalistic Shooting & Self-Recording: Utilize flexible camera angles and self-monitoring.
- Operation Modes: Select between Manual (M) and Full Auto (A) for recording.
- Zooming: Use the Power Zoom Lever for magnification.
- Video Light: Brighten scenes in low light conditions.
- Time Code: Records location data for editing.
Video Playback
- Normal Playback: Watch recorded content.
- Still/Shuttle/Frame-By-Frame Playback: Navigate through recordings.
- Connections: Connect to TV/VCR using provided cables.
Troubleshooting and error codes
| Indications | Function |
|---|---|
| Displays the battery remaining power. Remaining power level: high, low, exhausted. Battery indicator blinks when power is low. Turns off automatically when exhausted. | |
| Appears when no tape is loaded. | |
| CHECK TAPE'S ERASE PROTECTION TAB | Appears when the erase protection tab is set to "SAVE" while in VIDEO mode. |
| Appears if dirt is detected on the heads during recording. Use an optional cleaning cassette. | |
| CONDENSATION OPERATION PAUSED PLEASE WAIT | Appears if condensation occurs. Wait until it disappears. |
| TAPE! | Appears if a tape is not loaded when Recording Start/Stop or Snapshot is pressed in VIDEO mode. |
| TAPE END | Appears when the tape ends during recording or playback. |
| DIFFERENT FORMATTED TAPE | Appears if a tape in another format is loaded. |
| SET DATE/TIME! | Appears when the date/time is not set or the built-in clock battery is depleted. Consult dealer for replacement. |
| LENS CAP | Appears for 5 seconds after power on if the lens cap is attached. |
| A. DUB ERROR! <CANNOT DUB ON A LP RECORDED TAPE> <CANNOT DUB ON A 16BIT RECORDING> <CHECK TAPE'S ERASE PROTECTION TAB> | Appears if Audio Dubbing is attempted on a blank portion, LP recorded tape, 16-bit audio tape, or when erase protection is set to "SAVE". |
| INSERT ERROR! | Appears if Insert Editing is attempted on a blank portion of a tape, LP mode tape, or when erase protection is set to "SAVE". |
| MEMORY IS FULL | Appears when the memory card is full and shooting is not possible. |
| COPYING FAILED | Appears during dubbing of copyguarded signals, or when dubbing from tape to memory card (no card, full card, unformatted card, copy-protected card), or from memory card to tape (condensation, no tape, erase protection, wrong format, tape end). |
| MEMORY CARD! | Appears when a memory card is not loaded during SNAPSHOT in DSC mode. |
| PLEASE FORMAT | Appears if there is a problem with a memory card or it is not initialized. Initialize the memory card. |
| NO IMAGES STORED | Appears if there are no images stored in the memory card during DSC playback. |
| CARD ERROR! | Appears when the camcorder takes too long to recognize the memory card. Remove and reinsert the card. If persists, the card may be corrupted. |
| CHECK CARD'S WRITE PROTECTION SWITCH | Appears when attempting to shoot digital still images with a copy-protected SD Memory Card. |
| E01-E06 | Error indications showing malfunction type. Turn off unit, remove power supply, wait, then reconnect. Consult dealer if indication remains. |
