Manual for GR-DVL307
Uploaded: Nov. 21, 2025, 7:52 p.m.
Warranty Information
No warranty information is present in the provided manual pages.

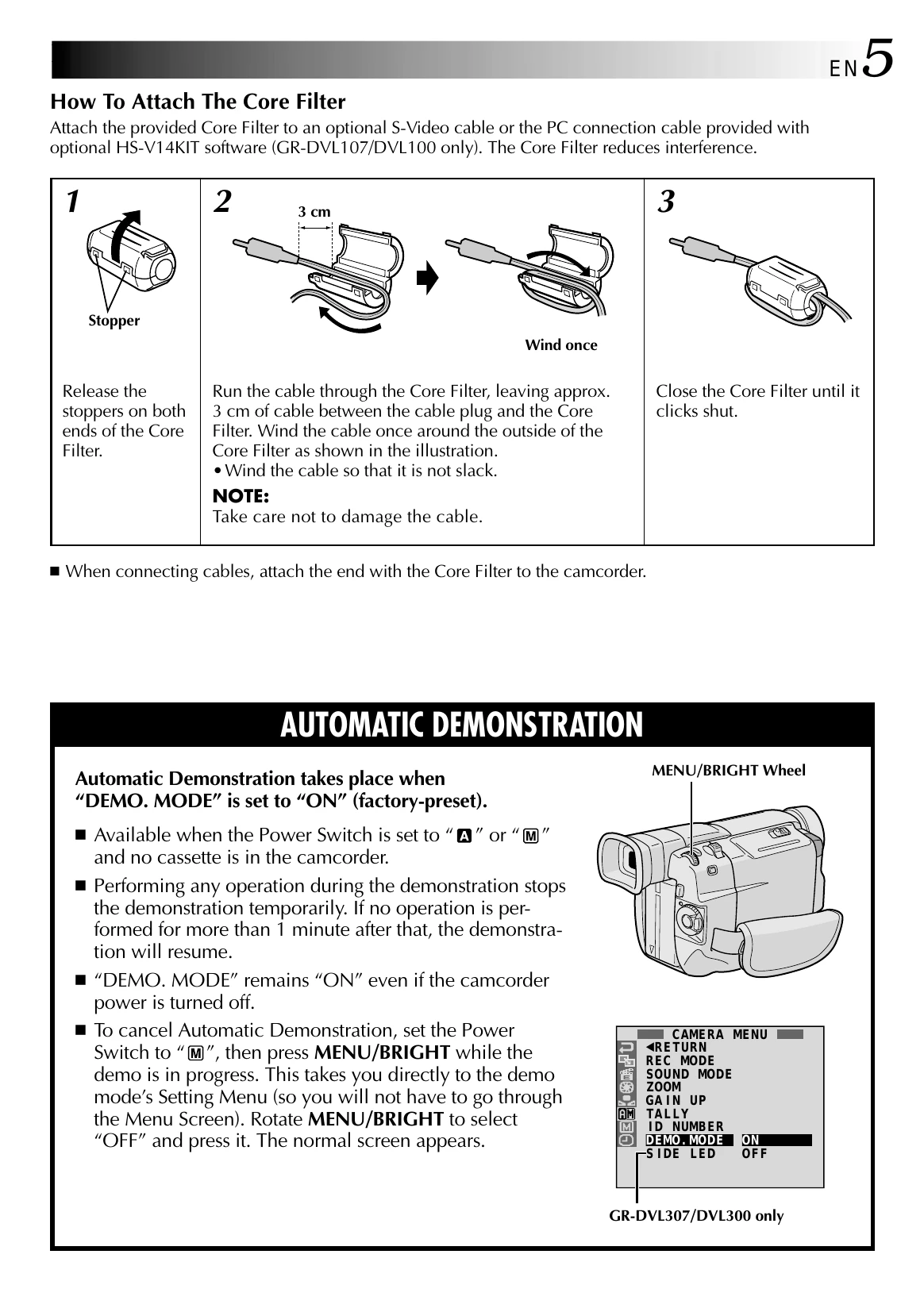

- Charging the Battery Pack: Ensure the camcorder is unplugged from the DC cord. Plug the AC Adapter/Charger into an AC outlet. Attach the battery pack, aligning the marks. The CHARGE indicator blinks during charging and stays lit when complete. Slide and lift off the battery. Unplug the AC cord.
- Using the Battery Pack: Tilt viewfinder up. Align battery pack with mount, push slightly, and slide down until it locks. To detach, tilt viewfinder up and slide battery up while pressing the release button. Ensure correct battery orientation to prevent malfunction.
- Using AC Power: Connect the AC Power Adapter/Charger to the camcorder and an AC outlet.
- Grip Adjustment: Separate Velcro. Pass hand through loop and grasp grip. Adjust for easy operation of buttons. Refasten Velcro.
- Viewfinder Adjustment: Set Power Switch to "A" or "M" while pressing Lock Button. Adjust Dioptre Control until viewfinder indications are clear.
- Shoulder Strap Attachment: Remove battery pack or DC cord. Thread strap through eyelets and buckle as illustrated.
- Tripod Mounting: Align tripod screw and camera stud with mounting socket and stud hole. Tighten screw. Ensure tripod legs are fully extended for stability.
- Date/Time Settings: Set Power Switch to "M" (with Lock Button pressed). Press MENU/BRIGHT. Select "DISPLAY MENU". Select "CLOCK ADJ.". Input day, month, year, hour, and minute. Return to exit.
- Loading/Unloading a Cassette: Power up the camcorder. Slide OPEN/EJECT to open cassette holder cover and then the holder. Insert/remove tape and press "PUSH HERE" to close. Wait for the holder to recede completely before closing the cover.
- Recording Mode Setting: Set Power Switch to "M" (with Lock Button pressed). Press MENU/BRIGHT. Select "CAMERA MENU". Select "REC MODE". Choose "SP" or "LP". Return to exit.
- Basic Recording: Ensure camcorder is powered, cassette loaded, and mode set. Set Power Switch to "A" or "M" (with Lock Button pressed). Shoot using LCD monitor or viewfinder. Press Recording Start/Stop Button to record/stop.
- Snapshot: Set Power Switch to "A" or "M" (with Lock Button pressed). Press MODE repeatedly to select snapshot mode. Press SNAPSHOT to record a still image.
- Zooming: Slide Power Zoom Lever towards "T" (In) or "W" (Out).
- Recording From The Middle Of A Tape: Play back to find the spot, engage Still Playback. Set Power Switch to "A" or "M" and start recording.
- Video Light: Set LIGHT OFF/AUTO/ON switch as required. AUTO turns light on when lighting is insufficient. ON keeps light on. OFF turns it off.
Troubleshooting and error codes
| Index | Controls, Connectors And Indicators | Page |
| Controls | 1 Monitor Open Button [PUSH OPEN] | 12 |
|---|---|---|
| 2 Dioptre Adjustment Control | 8 | |
| 3 Battery Release Button [BATTERY RELEASE] | 7 | |
| 4 • MENU Wheel [+, -, PUSH] | 20 | |
| • LCD Monitor BRIGHT (Brightness) Control [+, –] | 12 | |
| 5 Snapshot Button [SNAPSHOT] | 14, 15 | |
| 6 • Power Zoom Lever [T/W] | 16 | |
| • Speaker Volume Control [VOL.] | 29 | |
| 7 Snapshot Mode Button [MODE] | 14 | |
| 8 OPEN/EJECT Switch | 10 | |
| 9 Stop Button [■] | 29 | |
| 10 Rewind Button [◄◄] | 29 | |
| • BACKLIGHT Button | 27 | |
| 11 Play/Pause Button [►/II] | 29 | |
| 12 Fast-Forward Button [►►] | 29 | |
| • FOCUS Button | 19 | |
| 13 Power Switch [A, M PLAY, OFF] | 13 | |
| 14 Recording Start/Stop Button | 12 | |
| 15 Lock Button | 12 | |
| 16 Video Light Switch [LIGHT OFF/AUTO/ON] | 18 | |
| Connectors | To connect cables to the following connectors 17 and 18, open the LCD monitor. | |
| 17 PC (DIGITAL PHOTO) Connector | 34 | |
| 18 J Terminal/Edit Connector [JLIP (Joint Level Interface Protocol)/EDIT] | 44 | |
| • Connect the editing cable when performing Random Assemble Editing. | ||
| • Connect to a JLIP-compatible camcorder or VCR to control it from the computer using the Software (GR-DVL307/DVL300: provided, GR-DVL107/DVL100: optional software such as the HS-V14KIT). | ||
| 19 DC Input Connector | 7 | |
| Audio/Video Output Connector [AV] | 32, 36, 44 | |
| Digital Video Connector [DV IN/OUT: GR-DVL307/DVL107, DV OUT: GR-DVL300/DVL100] (i.link*) | 34, 35, 37, 38 | |
| * i.Link refers to the IEEE1394-1995 industry specification and extensions thereof. The ☑ logo is used for products compliant with the i.Link standard. | ||
| 20 S-Video Output Connector [S] | 32, 36, 44 | |
| Indicators | 21 Tally Lamp | 12 |
| 22 Side LED Indicator (GR-DVL307/DVL300 only) | 22 | |
| 23 Power Lamp | 12 | |
| Other Parts | 24 Remote Sensor | 39 |
| • Camera Sensor Be careful not to cover this area, a sensor necessary for shooting is built-in here. | ||
| 25 Viewfinder | 8 | |
| 26 Video Light | 18 | |
| 27 Stereo Microphone | 49 | |
| 28 Shoulder Strap Eyelets | 8 | |
| 29 Grip Strap | 8 | |
| 30 Battery Pack Mount | 7 | |
| 31 LCD Monitor | 12, 13 | |
| 32 Speaker | 29 | |
| 33 Stud Hole | 8 | |
| 34 Tripod Mounting Socket | 8 |
