Brand: JVC
Category: Audio System
Document Type: Manual
Language: EN
Manual for RX-ES1SL
Uploaded: Nov. 21, 2025, 9:08 p.m.
Manual Publish Date: 2003
Warranty Information
No specific warranty period is mentioned in the provided sections of the manual.

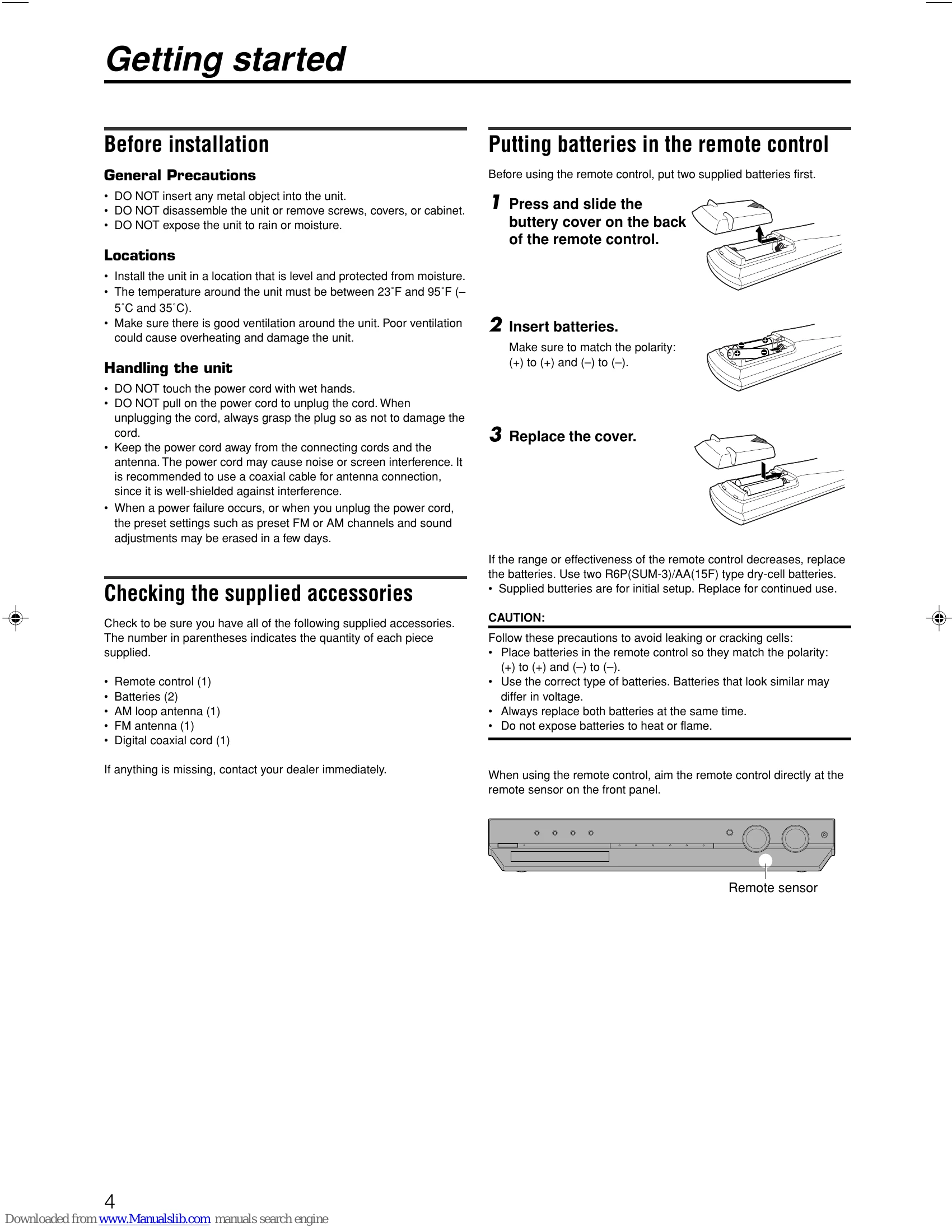

Getting Started:
- Before Installation: General precautions, location, and handling the unit.
- Checking Accessories: Verify all supplied items are present.
- Remote Control Batteries: Insert batteries correctly.
- Connections: Connect FM/AM antennas, speakers, subwoofer, video components (DVD player, VCR, TV, DBS tuner), and digital audio sources.
- Power: Plug in the power cord.
Basic Operations:
- Power On/Off: Use the STANDBY/ON button.
- Source Selection: Choose the desired source using SOURCE SELECTOR or remote buttons.
- Volume Adjustment: Use MASTER VOLUME control or VOLUME +/- buttons.
- Headphones: Connect headphones to the PHONES jack.
- Display Brightness: Adjust using the DIMMER button.
- Muting: Temporarily turn off sound with the MUTING button.
- Sleep Timer: Set to automatically turn off the unit.
Troubleshooting and error codes
| PROBLEM | POSSIBLE CAUSE | SOLUTION |
|---|---|---|
| The power does not come on. | The power cord is not plugged in. | Plug the power cord into an AC outlet. |
| No sound from speakers. | Speaker signal cables are not connected. | Check speaker wiring and reconnect if necessary. |
| An incorrect source is selected. | Select the correct source. | |
| Muting is activated. | Press MUTING to cancel the mute. | |
| Sound from one speaker only. | An incorrect input mode (analog or digital) is selected. | Select the correct input mode (analog or digital). |
| Connections are incorrect. | Check connections. | |
| The STANDBY lamp lights up after turning on the power, but soon the unit turns off (into standby mode). | Speakers are overloaded because of high volume. | 1. Press STANDBY/ON O/I on the front panel to turn off the unit. 2. Stop the playback source. 3. Turn on the unit again, and adjust the volume. |
| Remote control does not operate as you intend. | Speakers are overloaded because of a short circuit at the speaker terminals. | Check the speaker wiring. If speaker wiring is not short-circuited, contact your dealer. |
| The unit is overloaded because of a high voltage. | Consult your dealer after unplugging the power cord. | |
| Remote control does not work. | The remote control is not ready for your intended operation. | Press a source selecting button or TONE first, then press the buttons you want to use. (See pages 21 and 34 – 37.) |
| Bass sound is reinforced too much when listening in stereo. | There is an obstruction hiding the remote sensor on the unit. | Remove the obstruction. |
| Batteries are weak. | Replace batteries. | |
| The mode selector is set to the incorrect position. | Set the mode selector to the proper position. | |
| Appropriate bass level is not selected. | Adjust audio position level (see page 22). | |
| Surround mode cannot be selected. | Surround mode is not available on the software being played back, or only the front speakers are set for use. | Play not multi-channel software or check the speaker setting. |
| DSP mode cannot be selected. | DSP mode is not available on the software being played back, or only the front speakers are set for use. | Play back Linear PCM or analog software or check the speaker setting. |
| Continuous hiss or buzzing during FM reception. | Incoming signal is too weak. | Connect an outdoor FM antenna or contact your dealer. |
| The station is too far away. | Select a new station. | |
| Occasional cracking noise during FM reception. | An incorrect antenna is used. | Check with your dealer to be sure you have the correct antenna. |
| Antennas are not connected properly. | Check connections. | |
| Ignition noise from automobiles. | Move the antenna farther from automobile traffic. |
