Manual for ASD-G9ETH
Uploaded: Nov. 21, 2025, 7:01 p.m.
Manual Publish Date: 2008-08-01
Warranty Information
The interface is covered by ICC, Inc. warranty for 12 months from installation, not exceeding 18 months from shipment.

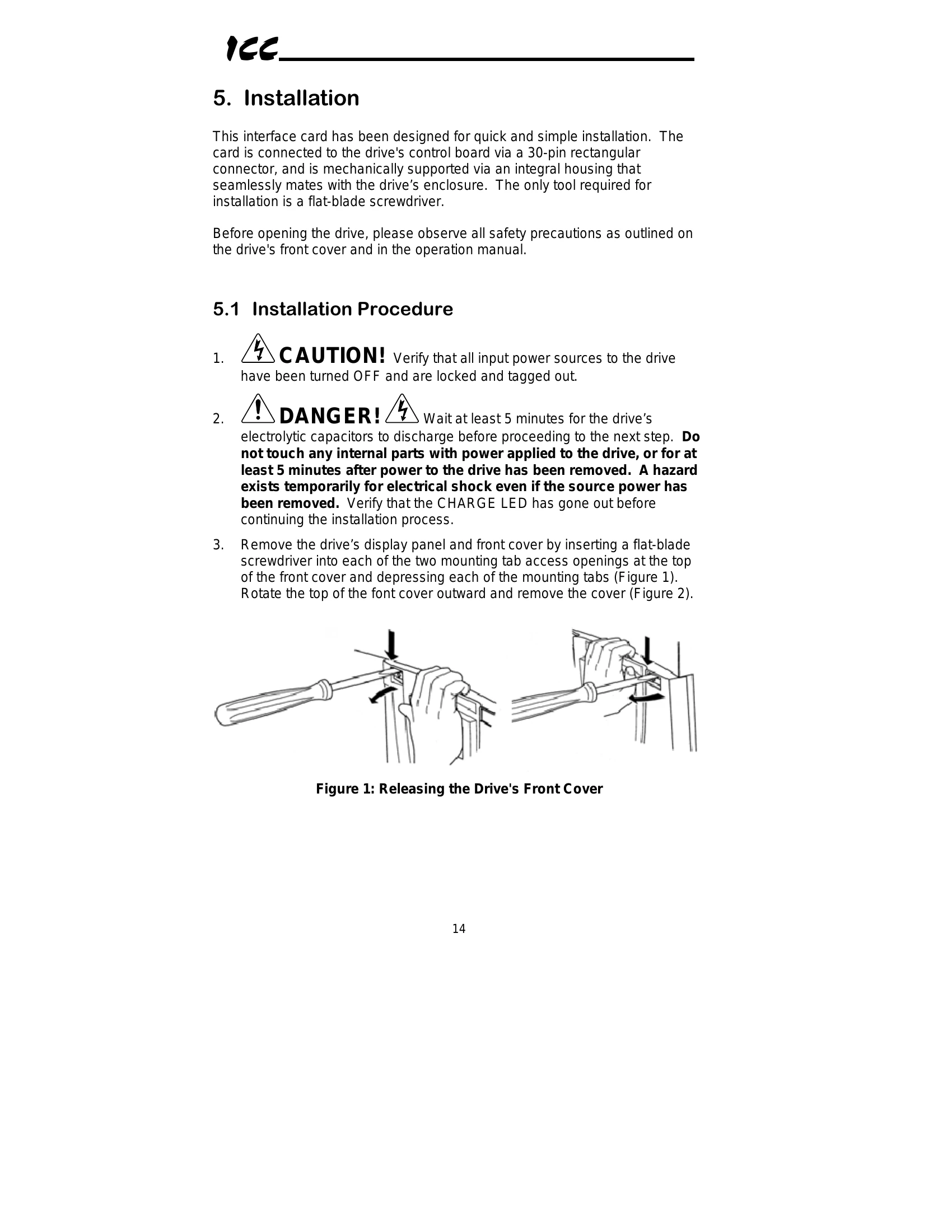

This manual details the installation, configuration, and operation of the ICC ASD-G9ETH Multiprotocol Ethernet Interface for Toshiba ASDs. The interface allows seamless information transfer between the drive and Ethernet-based fieldbus networks. Key features include a 10/100BaseT Ethernet port, support for multiple protocols (Modbus TCP, EtherNet/IP, PCCC, BACnet/IP, Profinet IO), an embedded web server for remote monitoring and control, and XML configuration file management. The manual covers LED indicators, IP address configuration via utility or web page, and interaction with the filesystem. It also provides detailed protocol-specific information for Modbus/TCP, EtherNet/IP, PCCC, BACnet, and Profinet IO, including object support and configuration examples.
Troubleshooting and error codes
| Item | Specification |
|---|---|
| Operating Environment | Indoors, less than 1000m above sea level, do not expose to direct sunlight or corrosive / explosive gasses |
| Operating Temperature | -10 ~ +50°C (+14 ~ +122°F) |
| Storage Temperature | -40 ~ +85°C (-40 ~ +185°F) |
| Relative Humidity | 20% ~ 90% (without condensation) |
| Vibration | 5.9m/s² {0.6G} or less (10 ~ 55Hz) |
| Grounding | Non-isolated, referenced to ASD control power ground |
| Cooling Method | Self-cooled |
| Communication Speed | 10/100BaseT auto sensing |
