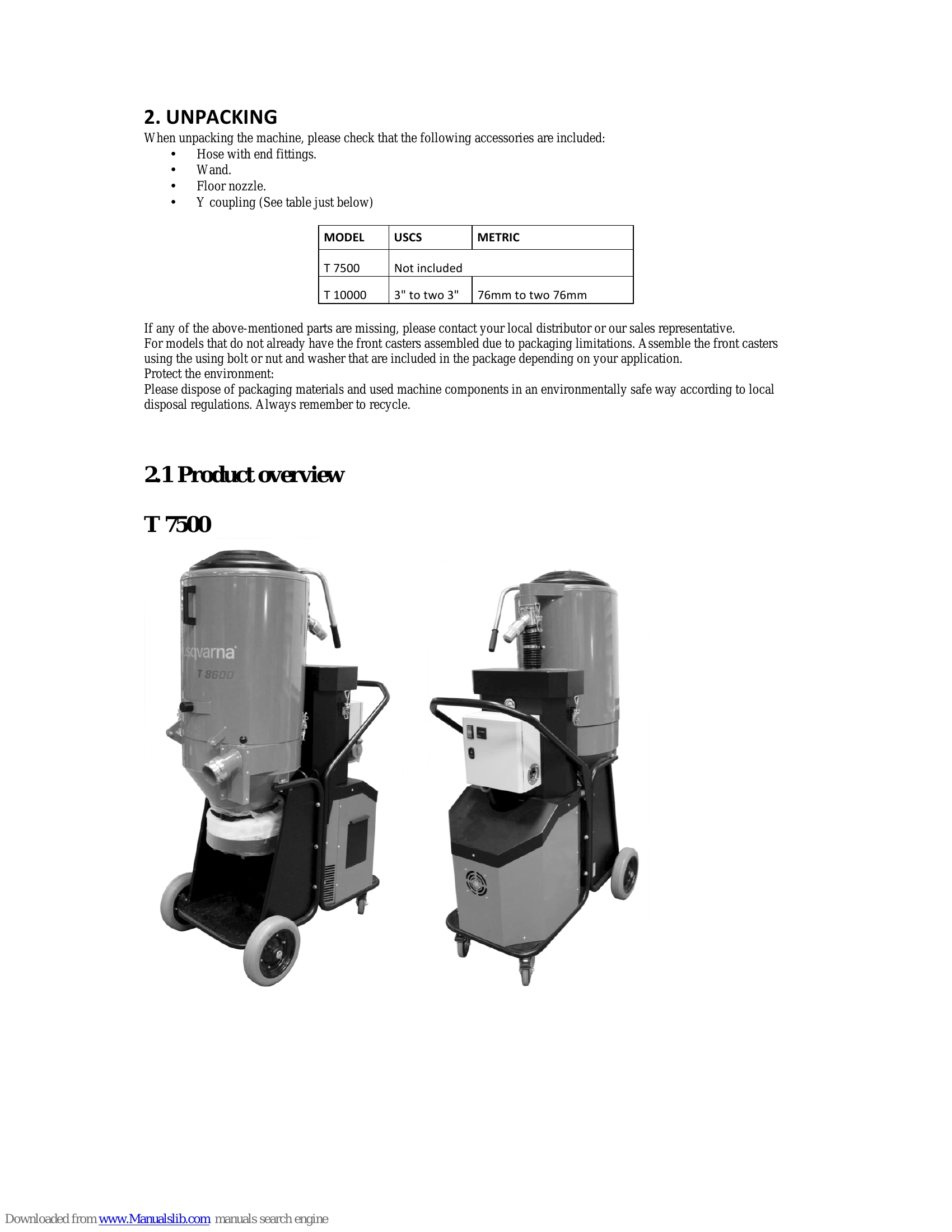

Manual for T 4000, T 7500, T 10000

Manual for T 4000, T 7500, T 10000

Brand: Husqvarna

Category: Dust Extractor

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 7:13 p.m.

Manual Publish Date: 2017-09-01

Warranty Information

Offers a 12-month factory warranty, extendable to 36 months with return of warranty slip.

Starting and Stopping:

  • Start the dust extractor by pressing the green button on the electrical cabinet.
  • Stop the machine by pressing the red button located below the start button.

Functionality:

  • The machine vacuums and separates dry, non-combustible dust.
  • Dust-laden air is drawn in, slowed by a cyclone to separate coarse particles, and then filtered.
  • The machine is designed for filter cleaning by reverse air pulse.
  • Separated dust accumulates in a cyclone and drops into a plastic bag when the machine is switched off.

Filter Cleaning:

  • Cover the inlet, build vacuum for 4-5 seconds, then quickly push and release the key five times, allowing vacuum to rebuild between each.
  • Uncover the inlet after motor stops.

Dust Storage:

  • Uses a Longopac system or regular plastic bags for dust collection.

Troubleshooting and error codes

IssueCauseSolution
Motor doesn't start No power Plug in machine
Cable defective Replace cable
Switch defective Replace switch
Contactor combination defective Replace contactor combination
Phase error (red lamp lights up) Switch two phases
Wrong fuse Connect to correct fuse
Motor stops immediately after starting Shortcut in cable/machine Order service
Hose not connected Connect hose
Motor runs but there is not suction Hose blocked Clean hose
No dust collection bag Fit dust collection system
Hole in hose Replace hose
Motor runs but poor suction Filter clogged Clean filter/Replace filter
Loose top cover Adjust
Dirt in the flap Clean the flap
Dust blown from motor Defective gaskets Replace affected gaskets
Abnormal noise Wrongly assembled or damaged filter system Adjust/Replace filters
Order service
