Manual for FusionModule2000-S
Uploaded: Nov. 21, 2025, 6:35 p.m.
Manual Publish Date: 2021-07-15
Warranty Information
Huawei will not be liable for any consequence caused by violation of general safety requirements or unauthorized modifications.

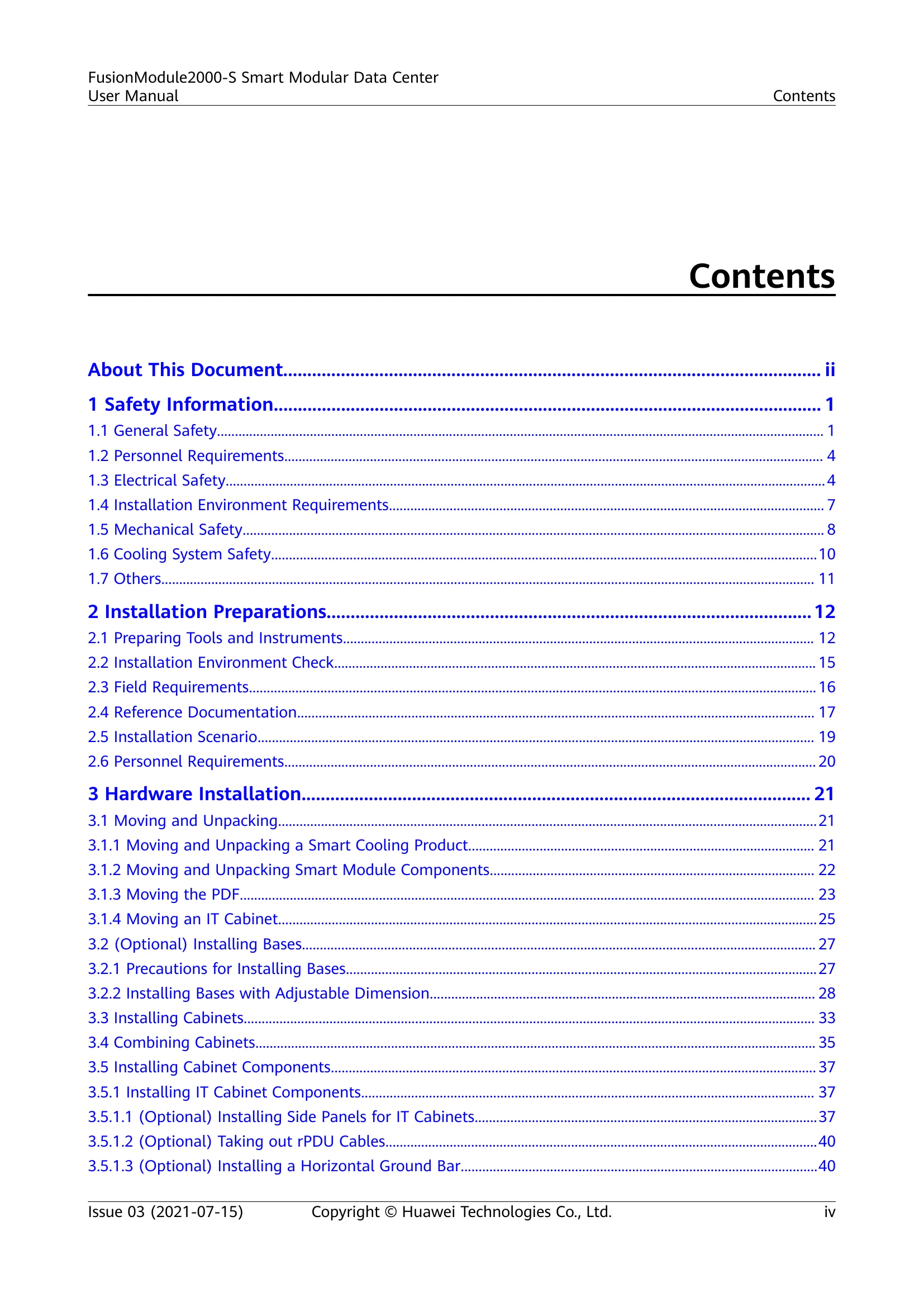

The manual covers the installation, commissioning, and maintenance of the FusionModule2000-S smart modular data center. It includes sections on safety information, installation preparations, hardware installation, system cabling, power-on commissioning, and operation and maintenance. Specific procedures detail tasks like installing components, connecting cables, and troubleshooting alarms. The appendix provides additional information on installing expansion bolts, preparing various cables, common screw torques, installation verification checklists, and acronyms.
Troubleshooting and error codes
| No. | Check Item | Check Result |
|---|---|---|
| 1 | The cabinets are placed according to the equipment room layout diagram. | |
| 2 | The height deviation of all cabinets and the depth deviation of adjacent cabinets are less than 5 mm. | |
| 3 | All bolts and screws are firmly tightened, especially on electrical connections. Flat and spring washers are used with each bolt, and spring washers are placed on the top of flat washers. | |
| 4 | The cabinets are clean and meet dustproof requirements. | |
| 5 | The paint on the cabinet exterior is intact. If paint flakes off, repaint that area immediately to avoid corrosion. | |
| 6 | The cabinet doors and locks work properly. | |
| 7 | All labels are correct, clear, and complete. | |
| 8 | There is no foreign matter such as adhesive tape, cable ties, paper, or packing materials left around the cabinets. | |
| 9 | The cabinet filler panels are adjusted to ensure that the cold aisle and hot aisle are isolated. |
