Quick Start Guide for CloudEngine 8800
Uploaded: Nov. 21, 2025, 8:49 p.m.
Manual Publish Date: 2019-12-09
Warranty Information
No specific warranty period is mentioned in this document.

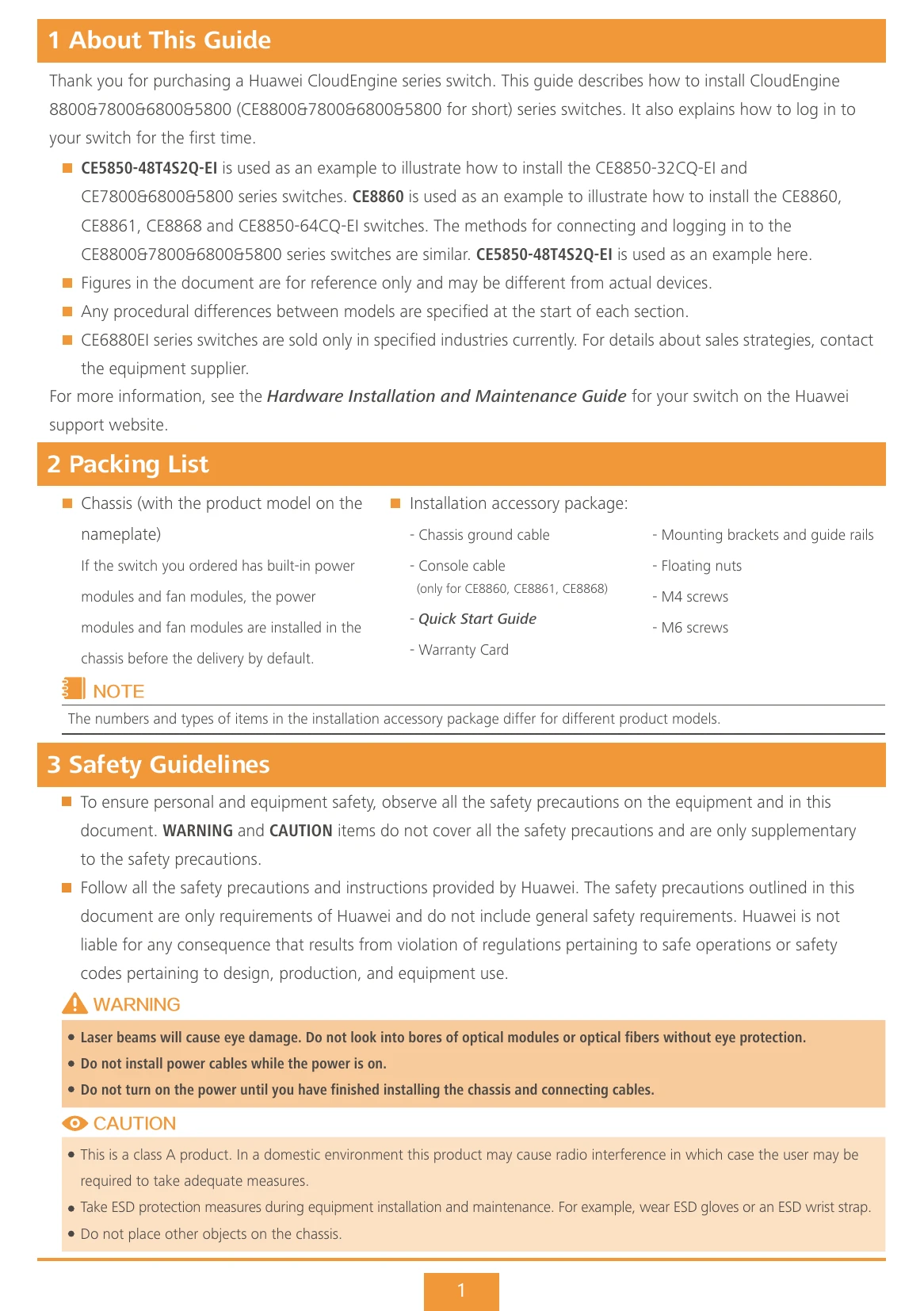

About This Guide
This guide describes how to install CloudEngine 8800, 7800, 6800, and 5800 series switches, and how to log in for the first time. It uses specific models as examples for installation and highlights similarities across series.
Packing List
Includes chassis, installation accessory package (ground cable, console cable, mounting brackets, screws, guide rails, floating nuts), Quick Start Guide, and Warranty Card. Items may differ based on the product model.
Safety Guidelines
Emphasizes observing safety precautions for personal and equipment safety. Includes warnings about laser beams, power cables, and general cautions regarding environmental factors and electrostatic discharge (ESD).
Site Environment
Recommends installing the product in a non-flammable/explosive environment, free from water and excessive humidity, with good ventilation and adequate clearance for heat dissipation.
Installing the Chassis
Provides detailed instructions and diagrams for installing the chassis in a cabinet, including chassis dimensions, cabinet requirements, and specific procedures for different switch series (e.g., CE8850-32CQ-EI, CE7800&6800&5800, CE8860, CE8861, CE8868, CE8850-64CQ-EI).
Installing Power Modules and Fan Modules
Explains how to select and install power modules and fan modules, emphasizing matching product models, airflow direction, and hot-pluggable nature. Provides guidelines for front-to-back and back-to-front airflow.
Installing a Card into the Chassis
Details the procedure for installing cards into extended slots on specific switch models (CE8860, CE8861, CE8868), including handling filler panels and hot-swappable cards.
Connecting Cables
Covers various cable connections, including ground cables, Ethernet cables, optical fibers, AC and DC power cables, and Mini USB connections. It specifies cable types, connection points, and safety considerations.
Logging In to the Switch
Provides step-by-step instructions for logging into the switch via the console port and the Mini USB port, including required software, communication parameters, and initial password configuration.
Obtaining Product Documentation and Technical Support
Directs users to Huawei's enterprise technical support website and community for documentation and assistance.
