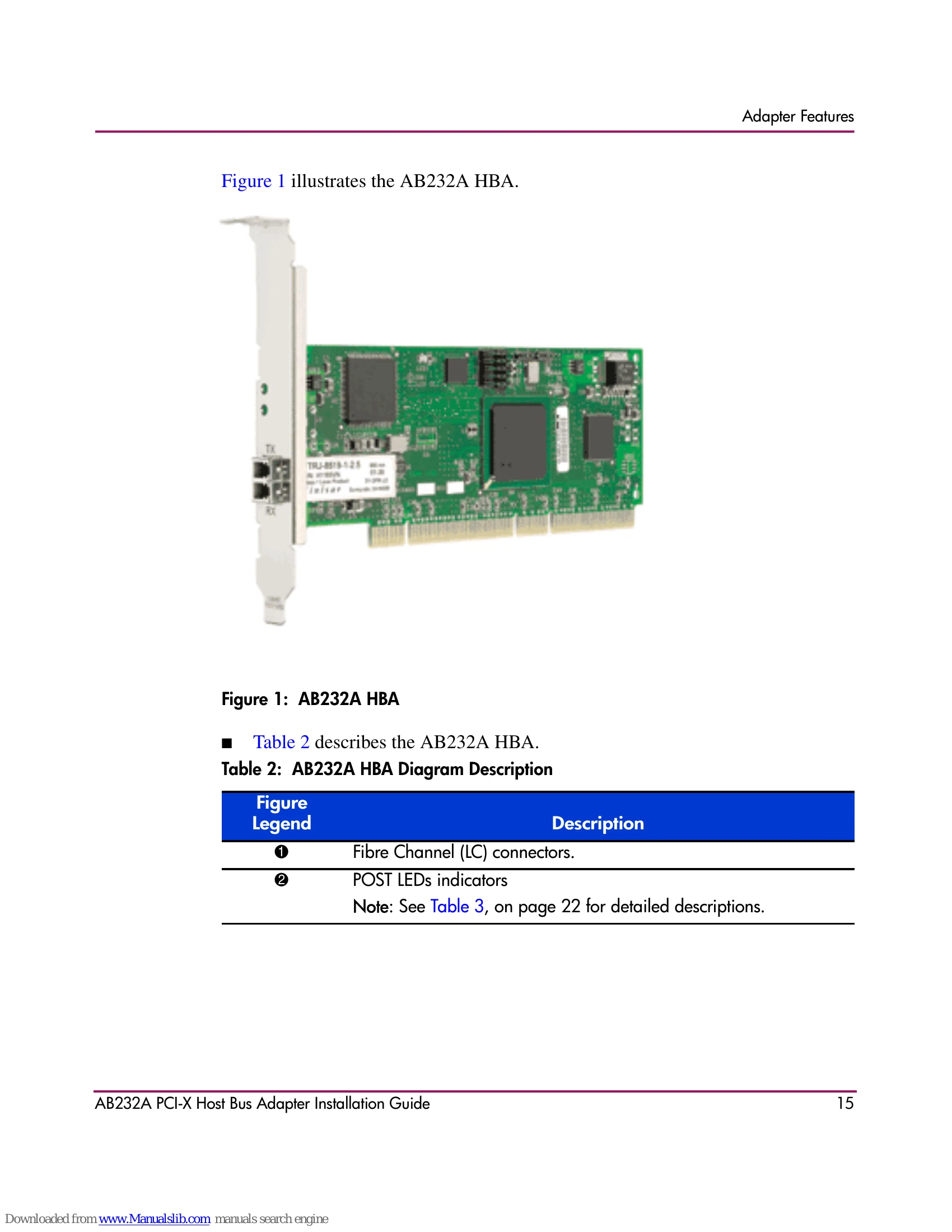

Installation Guide for AB232A PCI-X Host Bus Adapter
Uploaded: Nov. 21, 2025, 6:24 p.m.
Manual Publish Date: 2004-06-01
Warranty Information
None
This installation guide provides information to help you install, configure, and use the diagnostic utilities for the AB232A PCI-X host bus adapter for 64-bit Windows systems. It includes details on adapter features, installation procedures, driver installation, troubleshooting, and diagnostic utilities.
Troubleshooting and error codes
| Amber LED (L1) | Green LED (L2) | State |
|---|---|---|
| Off | Off | Wake-up failure (dead board) |
| On | Off | POST failure (dead board) |
| Slow blink (1 Hz) | Off | Wake-up failure (dead board) |
| Fast blink (4 Hz) | Off | Failure in POST (dead board) |
| Flashing (irregular) | Off | POST processing in progress |
| Off | On | Failure while functioning |
| On | On | Failure while functioning |
| Slow blink (1 Hz) | On | Normal—1 Gb link rate |
| Fast blink (4 Hz) | On | Normal—2 Gb link rate |
| Off | Blink (1 Hz) | Normal—link down or not yet started |
