Warranty Information
Warranty information can be found by visiting sps.honeywell.com and navigating to Support > Warranties.

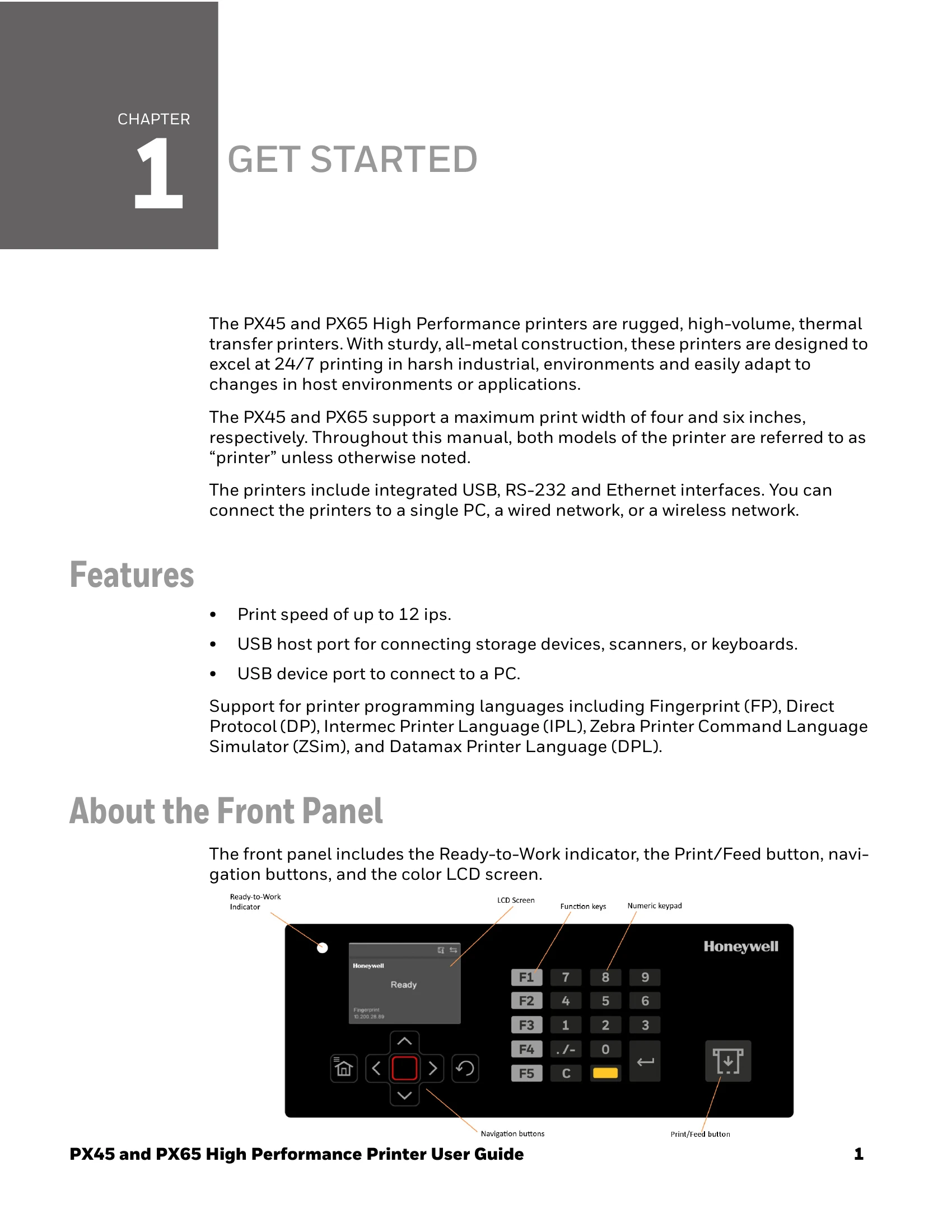

The PX45 and PX65 High Performance printers are rugged, high-volume, thermal transfer printers designed for 24/7 printing in harsh environments. They support print widths of four and six inches, respectively, and feature integrated USB, RS-232, and Ethernet interfaces for connectivity to PCs, wired, or wireless networks. Key features include a print speed of up to 12 ips, a USB host port for external devices, and support for multiple printer programming languages like Fingerprint, Direct Protocol, IPL, ZSim, and DPL. The front panel includes a Ready-to-Work indicator, Print/Feed button, navigation buttons, and an LCD screen. Operation involves setting up media, loading ribbon (if applicable), connecting the printer, and configuring settings through menus or a web page. The printers also offer wizards for quick setup of printing and communication parameters, and support for INPrint features for creating and printing labels via web forms.
Troubleshooting and error codes
| Alert | Description |
|---|---|
| Delay Unit | Selects the unit of measure that determines how often the alert is sent out. |
| Message | Sets the message that is sent out with alert for a specific printer event. |
Error
To view these settings:
- From the printer Main Menu, select Printer Settings > Alerts > Error.
- From the printer web page, click Configure > Alerts > Error.
| Errors Alerts | Status | Delay Repeat | Delay Unit | Message |
|---|---|---|---|---|
| Next Label Not found | Disable | 1 | Occurrences | Error-Next label not found |
| Out of Media | Enable | 1 | Occurrences | Error-Out of media |
| Out of Ribbon | Enable | 1 | Occurrences | Error-Out of ribbon |
| Printer in Pause Mode | Disable | 1 | Occurrences | Error-Printer in pause mode |
| Printer in Menu Mode | Disable | 1 | Occurrences | Error-Printer in menu mode |
| Application Break | Disable | 1 | Occurrences | Error-Application break |
| RFID not installed | Disable | 1 | Occurrences | Error-RFID not installed |
| No RFID Tag found | Disable | 1 | Occurrences | Error-No RFID tag found |
| Printhead Lifted | Enable | 1 | Occurrences | Error-Printhead lifted |
| Printhead Not Detected | Disable | 1 | Occurrences | Error-Printhead not detected |
| Printhead Too Hot | Disable | 1 | Occurrences | Error-Printhead too hot |
| Motor Too Hot | Disable | 1 | Occurrences | Error-Motor too hot |
| Power Supply Too Hot | Disable | 1 | Occurrences | Error-Power supply too hot |
| Memory Full | Disable | 1 | Occurrences | Error-Memory Full |
| Flash Memory Full | Disable | 1 | Occurrences | Error-Flash Memory Full |
Warning
To view these settings:
- From the printer Main Menu, select Settings > Alerts > Warning.
- From the printer web page, click Configure > Alerts > Warning.
| Warning Alerts | Status | Delay Repeat | Delay Unit | Message |
|---|---|---|---|---|
| Ribbon installed | Disable | 1 | Occurrences | Warning-Ribbon installed |
| Media Low | Enable | 1 | Occurrences | Warning-Media Low |
| Ribbon Low | Enable | 1 | Occurrences | Warning-Ribbon Low |
| Upgrading Firmware | Disable | 1 | Occurrences | Warning-Upgrading firmware |
| Odometer (User Resettable) | Disable | 1 | Occurrences | Warning-Odometer (User Resettable) has reached a preset value. |
| Odometer (Printhead) | Disable | 1 | Occurrences | Warning-Odometer (Printhead) has reached a preset value. |
| Odometer (Printer) | Disable | 1 | Occurrences | Warning-Odometer (Printer) has reached a preset value. |
| Replace Printhead | Disable | 1 | Occurrences | Warning-Replace printhead |
| Clean Printhead | Disable | 1 | Occurrences | Warning-Clean printhead |
| Faulty Dot | Disable | 1 | Occurrences | Warning-Faulty dot is detected |
| Memory Low | Disable | 1 | Occurrences | Warning-memory low |
| Flash Memory Low | Disable | 1 | Occurrences | Warning-Flash Memory low |
Information
To view these settings:
- From the printer Main Menu, select Printer Settings > Alerts > Information.
- From the printer web page, click Configure > Alerts > Information.
| Warning Alerts | Status | Delay Repeat | Delay Unit | Message |
|---|---|---|---|---|
| Print Job Complete | Disable | 1 | Occurrences | Print Job Complete |
| Started | Disable | 1 | Occurrences | Printer is started |
| Printer is Rebooting | Disable | 1 | Occurrences | Printer is Rebooting |
