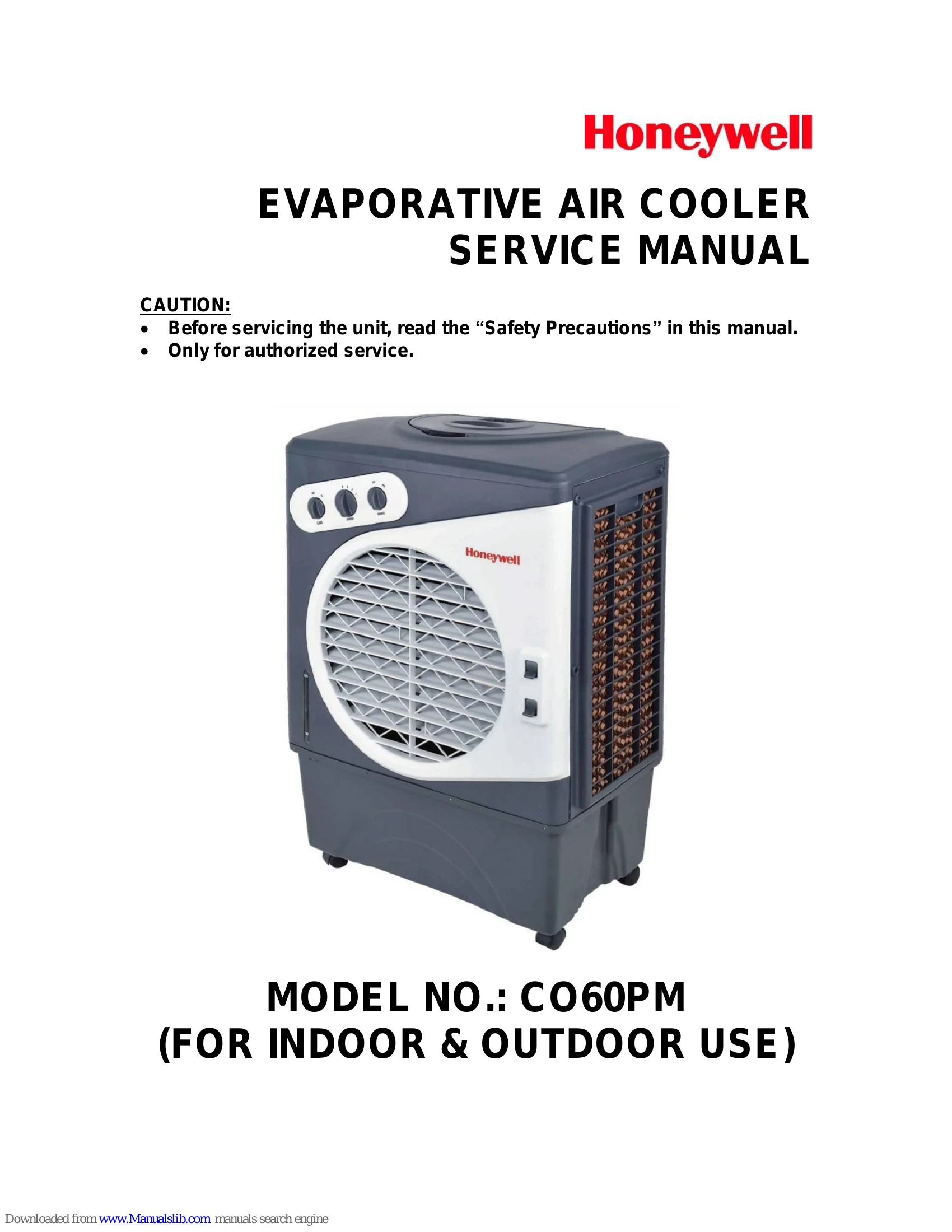

Manual for CO60PM
Uploaded: Nov. 21, 2025, 6:54 p.m.
Warranty Information
Warranty information is not detailed in this manual; contact customer service for details.
Cooler Operation Summary
This evaporative air cooler functions as an air cooler, humidifier, and fan. To operate, ensure the water tank is filled with clean water. Place the unit near an open window or door for optimal cross-ventilation. Use the "COOL" setting for cooling, ensuring the water level is above the minimum mark. The "SWING" function activates automatic louver movement for air circulation. Speeds can be adjusted from Low to High using the "SPEED" knob. For humidification, close windows and doors. Regular cleaning of the water tank and honeycomb media is recommended.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No discharge of air | Cord is not plugged in. | Make sure power cord is plugged in and the supply switch is on. |
| Power is not on. | Turn the unit ON. | |
| Humidity output minimal to none | Water is below minimum water level in tank. | Turn off the unit. Follow instruction to fill the water tank with clean water. |
| Water pump is damaged. | Replace the water pump according to the procedure 2.3. | |
| Water color yellowish at initial use | Color fasts from honeycomb filter. | This is natural. After several use, the water color will be clean. |
| Abnormal noise inside the product | Noise of water pump when water not up-to min water level. | Turn off the product. Add water, and then turn on the product again. |
| Motor or blade problem. | Turn off and unplug the product or change the main motor according to the procedure 2.4. | |
| Musty or unpleasant odor | When the Cooler is new. | When the unit is used for the first time, the Honeycomb Cooling Media will have an odor, which will dissipate within a few hours of initial use. |
| Stale or stagnant water in water tank. | Drain, flush and clean water tank. | |
| Media mildewed or clogged. | Replace media according to the procedure 2.1. | |
| Not cooling | Pump is not turned on. | Check the water level and turn on the pump. |
| Low or no water. | ||
| Damaged water pump. | Replace the water pump according to the procedure 2.3. |
