Brand: Honeywell
Category: Fire Alarm Systems
Document Type: Manual
Language: EN

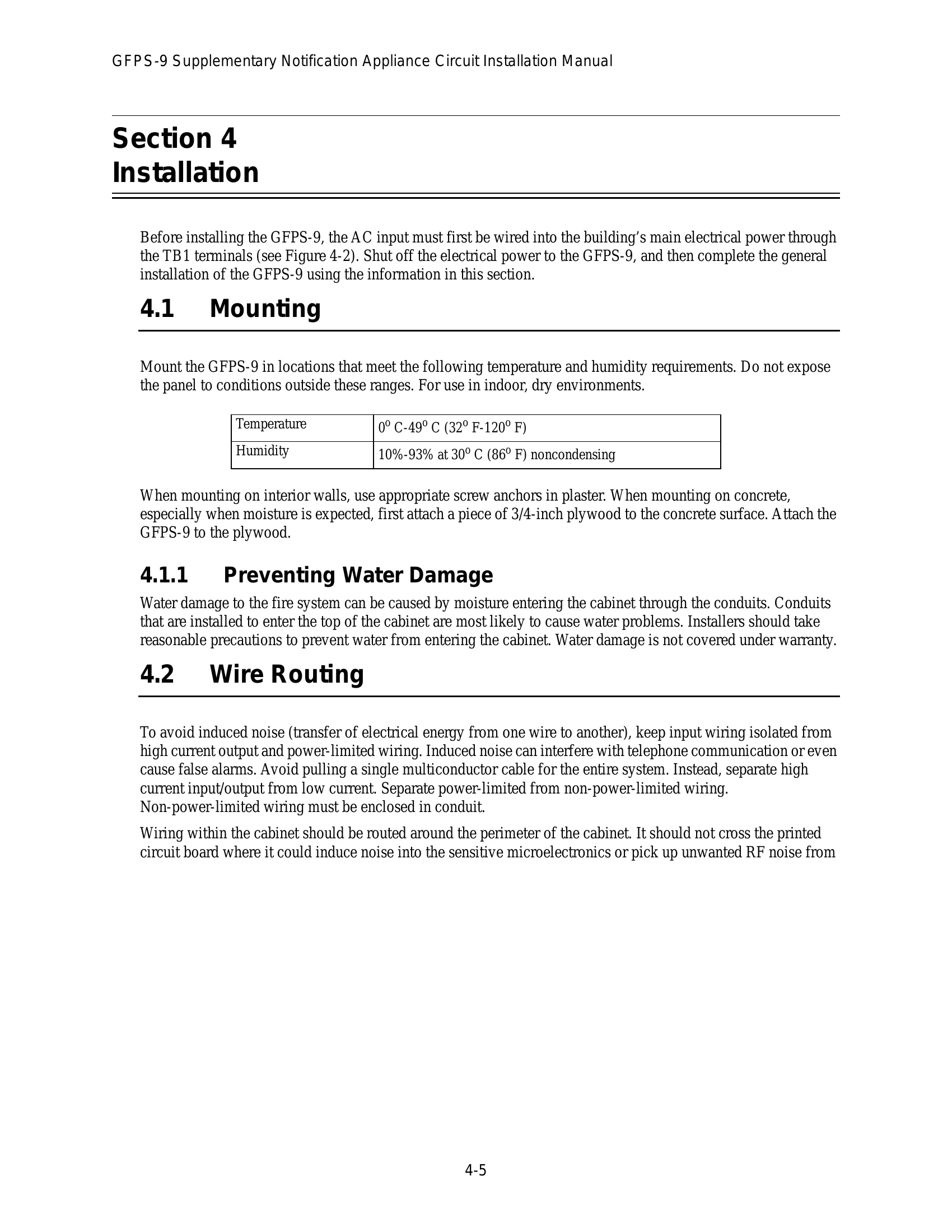

Manual for GFPS-9
Uploaded: Nov. 21, 2025, 9:21 p.m.
Warranty Information
Manufacturer warrants products for 36 months from the date of manufacture against defects in material and workmanship.
The GFPS-9 is a notification appliance circuit and auxiliary power expander providing up to 9 amps of 24-volt power. It connects to fire alarm control panels to power notification appliances and auxiliary devices. It features two optically isolated signaling inputs, four power-limited notification appliance circuits (configurable as Class A/B), and a dedicated auxiliary output. It also includes a Form C trouble relay and earth fault detection. The GFPS-9 supports synchronized appliances and ANSI temporal-coded outputs, simplifying installation by eliminating the need for separate synchronization modules.
Troubleshooting and error codes
| Trouble Condition | Possible Cause | Remedy |
|---|---|---|
| Low AC Power | No AC power to GFPS-9 | Check AC power source, fuses, and wiring. |
| Low Battery | Batteries are discharged or faulty. | Check battery connections, charge batteries, or replace if necessary. |
| Earth Fault | Ground fault to system power or ground. | Check wiring for ground faults and correct as needed. |
| Output Trouble | EOL supervision trouble or power-limited condition at an output. | Check output wiring, EOL resistor, and connected devices for faults or overloads. |
| Input Trouble | Trouble condition on the input circuit from the control panel. | Check wiring from the control panel to the GFPS-9 inputs. |
