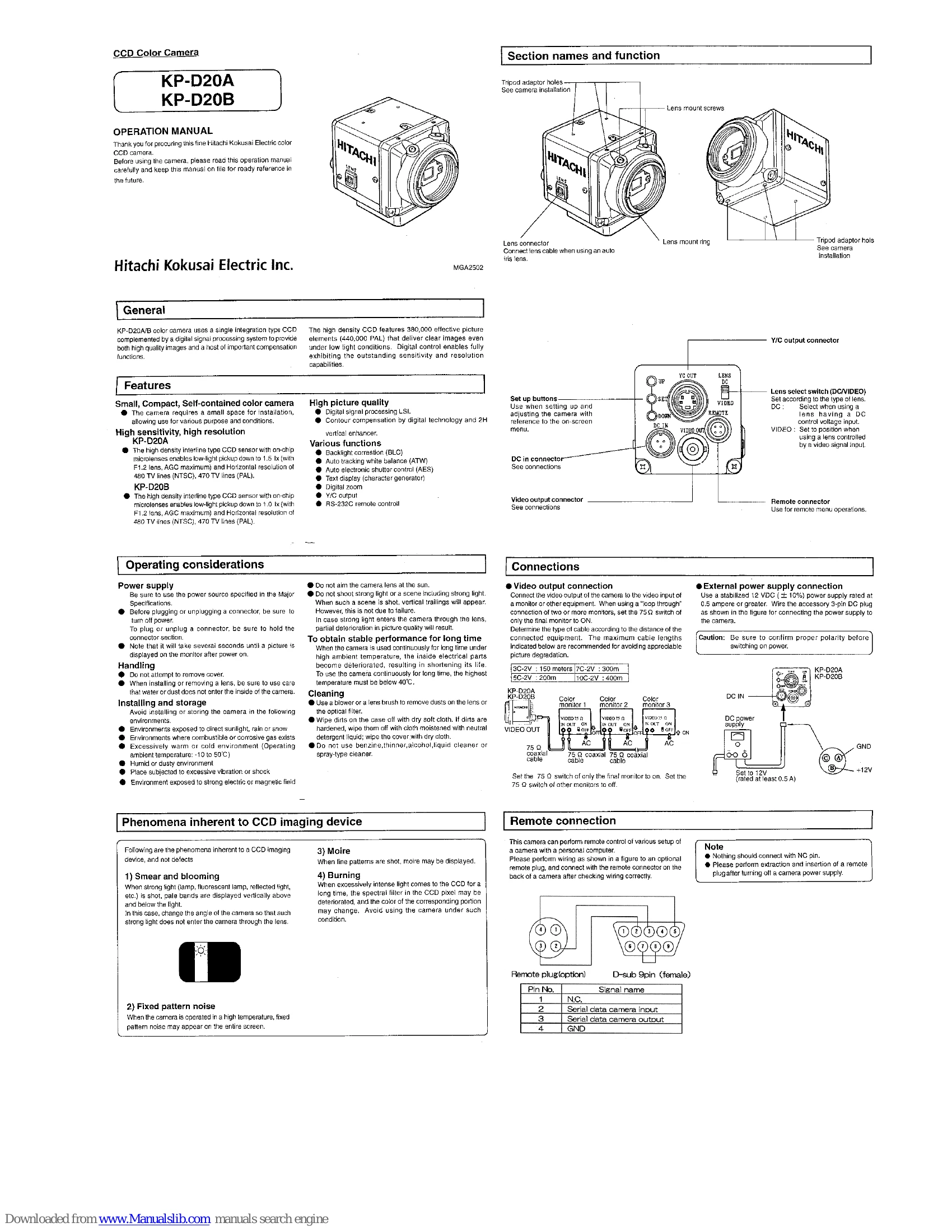

Manual for KP-D20A/KP-D20B
Uploaded: Nov. 21, 2025, 6:36 p.m.
Warranty Information
No specific warranty period is mentioned in the manual.
This manual provides operation and installation instructions for the Hitachi Kokusai Electric KP-D20A/KP-D20B CCD color camera. It covers general features, operating considerations, connections, inherent phenomena, remote control, main specifications, lens selection, flangeback adjustment, camera mounting, and menu settings. Key features include high sensitivity, high resolution, digital signal processing, and various adjustable functions like backlight correction, white balance, and electronic shutter. The manual details how to connect the camera, adjust settings via on-screen menus, and select appropriate lenses. It also includes important safety precautions and a list of supplied and optional accessories.
Troubleshooting and error codes
| Phenomena inherent to CCD imaging device | Notes |
|---|---|
| 1) Smear and blooming | When strong light (lamp, fluorescent lamp, reflected light, etc.) is shot, pale bands are displayed vertically above and below the light. In this case, change the angle of the camera so that such strong light does not enter the camera through the lens. |
| 2) Fixed pattern noise | When the camera is operated in a high temperature, fixed pattern noise may appear on the entire screen. |
| 3) Moire | When fine patterns are shot, moire may be displayed. |
| 4) Burning | When excessively intense light comes to the CCD for a long time, the spectral filter in the CCD pixel may be deteriorated, and the color of the corresponding portion may change. Avoid using the camera under such condition. |
