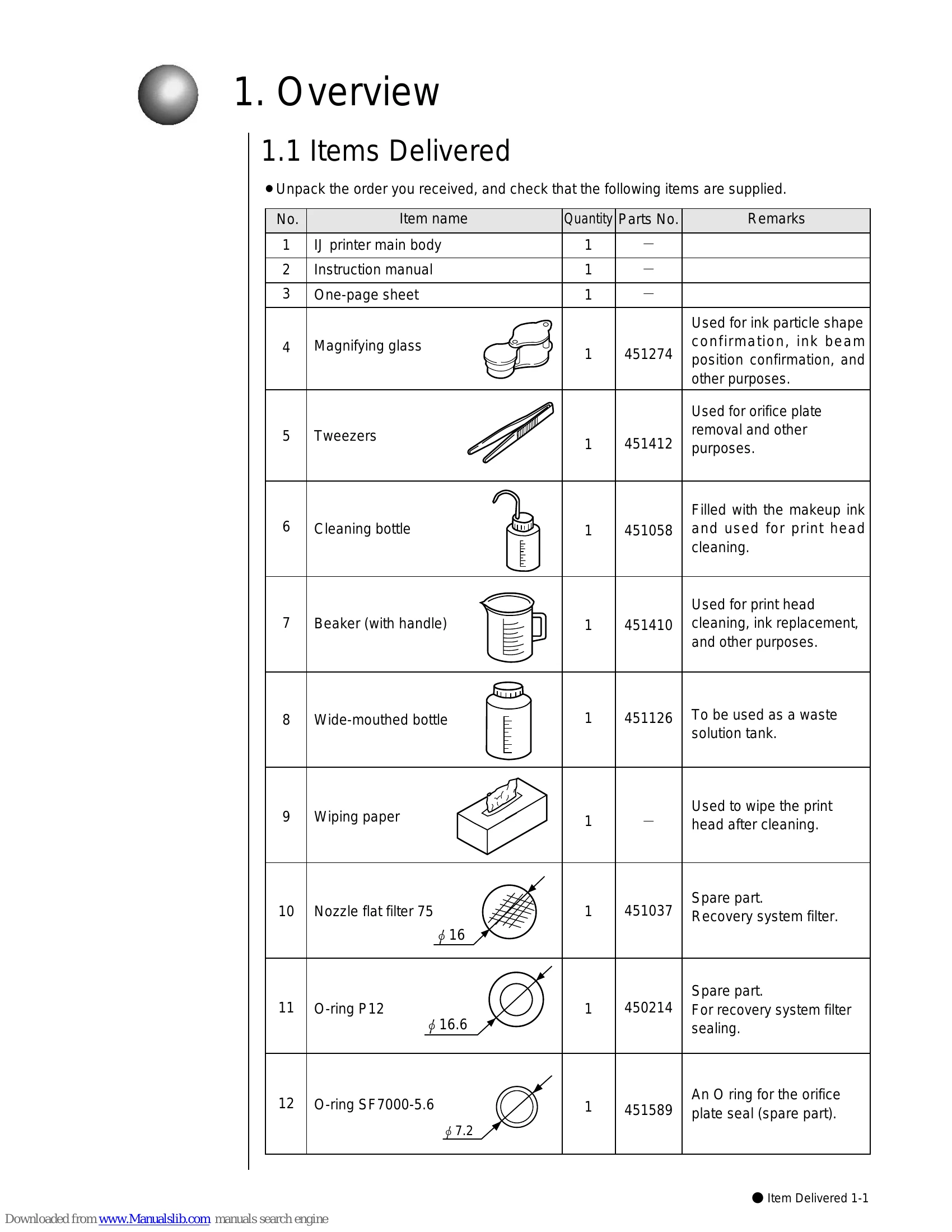

Manual for PXR-D
Uploaded: Nov. 21, 2025, 8:41 p.m.
Warranty Information
Refer to appropriate regulations for waste disposal. Consult local distributors for specific ink and tank replacement.
Basic Operation Summary
- Startup: Follow the procedure to start the printer. If a fault occurs at the beginning, refer to the troubleshooting section.
- Shutdown: The printer has an automatic nozzle cleaning sequence. A "no-cleaning stop" option is available for immediate shutdown, but requires immediate post-shutdown ink ejection to prevent nozzle clogging.
- Ink and Makeup Ink Management: The printer features an automatic replenishment system. Regular checks and replacements of ink and makeup ink are necessary, with specific intervals provided based on ink type and operating conditions. Proper storage and handling precautions are crucial to prevent fire hazards and ensure performance.
- Printing: The manual details how to set print lines, format, and characters (fixed, dedicated, special, calendar, elapsed days, month, week number, Arabic). It also covers saving, recalling, and editing print data.
- Environment Setup: Users can manage operations, set the user environment, date/time, password, and control executable functions.
- Auxiliary Functions: Includes managing created print data, creating user patterns, copying data, calibrating the touch screen, and selecting languages.
- Communication: Covers setting the communication environment, transmission specifications, and various standard communication functions for data transfer.
Troubleshooting and error codes
| Error Code | Description | Remedial Action |
|---|---|---|
| Cooling fan fault | Cooling fan is not working. | Never let the printer run if the cooling fan is not working. |
| Excessive format count | Exceeds the maximum allowed format count. | Check and adjust format settings. |
| F memory fault M | Memory fault related to the main memory. | Contact service personnel. |
| F memory fault S | Memory fault related to the storage memory. | Contact service personnel. |
| Hardware error C | Communication error related to hardware. | Contact service personnel. |
| Ink alarm time | Ink alarm time exceeded. | Check ink levels and replenish if necessary. |
| Ink pressure high | Ink pressure is too high. | Check the pressure adjustment settings and components. |
| Ink pressure low | Ink pressure is too low. | Check the pressure adjustment settings and components. |
| Ink shelf life exceeded | Ink has exceeded its shelf life. | Replace the ink. |
| Noise fault M | Communication noise affecting the main system. | Check wiring and environmental factors causing noise. |
| Noise fault S | Communication noise affecting the secondary system. | Check wiring and environmental factors causing noise. |
| No ink drop charge | Issue with ink drop charging. | Refer to "Ink drop charge too high" or "Ink drop charge too low". |
| Nozzle property test | Test failed for nozzle property. | Check nozzle condition and excitation settings. |
| Off-line (Com=0) | Communication with external device not established. | Check communication setup and connections. |
| On-line (Com=1) | Communication with external device established. | No print data changes can be made. |
| Output signal | Abnormal output signal. | Contact service personnel. |
| Pulse rate division factor | Incorrect pulse rate division factor setting. | Adjust the pulse rate division factor. |
| Pump motor fault | Pump motor failure. | Contact service personnel. |
| Rotary encoder signal | Abnormal rotary encoder signal. | Contact service personnel. |
| Target sensor fault | Fault in the target sensor. | Check sensor installation and connections. |
| Target sensor filter | Clogged target sensor filter. | Clean or replace the filter. |
| Target spacing too close | Print target spacing is too close. | Adjust print settings or conveyor speed. |
| Viscometer temperature sensor fault | Fault in the viscometer temperature sensor. | Contact service personnel. |
| Viscosity reading instability | Unstable viscosity readings. | Check ink condition and sensor. |
| Viscosity readings out of range | Viscosity readings are outside the acceptable range. | Check ink condition and sensor. |
