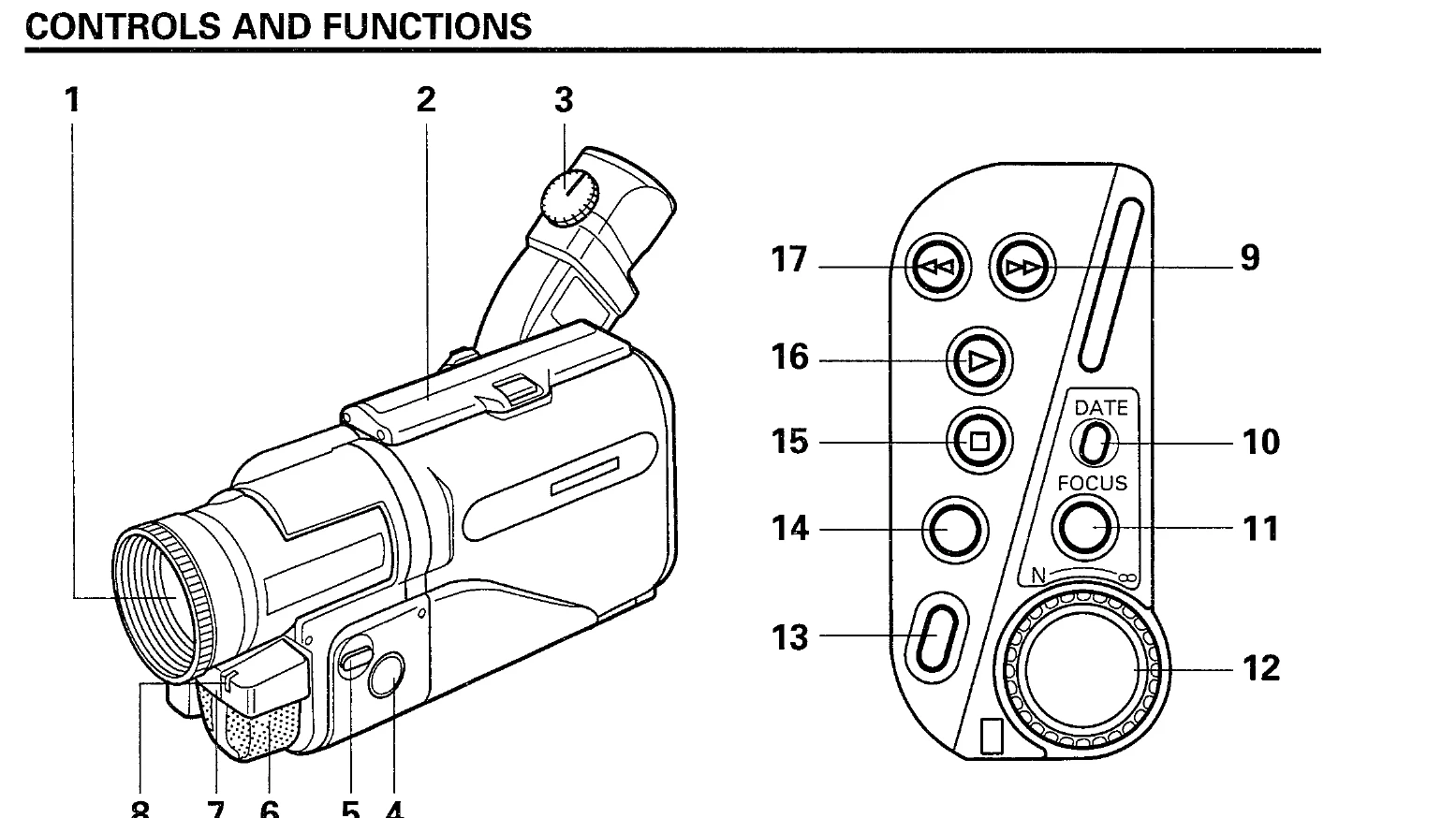

Basic Operation

This manual outlines the operation of the HITACHI VM-H70E/VM-H71E camcorder. Key operations include:

  • Powering On/Off: Use the OPERATE switch.
  • Recording: Set OPERATE switch to "CAM", insert cassette, and press the Start/Stop button.
  • Playback: Set OPERATE switch to "VIDEO", insert cassette, and press the PLAY button.
  • Zooming: Use the Power Zoom Switch (W for wide, T for tele).
  • Focusing: Use the FOCUS Select button for auto/manual focus and the Focus Control for manual adjustment.
  • Viewfinder: Adjust diopter for clear viewing.
  • Water-resistant features: Ensure all covers and buckles are securely closed to maintain water resistance.
  • Battery Charging: Use the AC adapter/charger to charge the battery, either attached or loaded in the camera.

Troubleshooting and error codes

Symptom Check Point & Correction
Cassette holder cannot be opened when you press the EJECT button. Connect the power source.
Cassette cannot be inserted into cassette compartment. Load cassette in direction indicated by arrow on cassette. The cassette window must be towards the outside.
Picture does not appear in the viewfinder. Remove the lens cap. Slide OPERATE switch to "CAM".
The camera/recorder cannot go into the recording mode, even when Start/Stop button is pressed. Check the record-protect tab on the cassette. Set OPERATE switch to "CAM" position. Push the cassette holder embossed PUSH to close it.
PLAY button cannot be engaged. The " " indication in the viewfinder flashes to indicate battery is discharged. Try another battery or charge the battery. Set OPERATE switch to "VIDEO" position.
Interference on playback picture. (The TV is connected to the camera/recorder using the RF output adapter.) When you see the playback picture on your TV, adjust fine tuning knob on television set to obtain the best picture.
Picture is out of focus. Auto-focus does not operate correctly. Press the FOCUS select button to erase "FOCUS" from the viewfinder. Auto-Focus does not operate correctly if a special-effects filter is attached or with the objects shown on page 25.
Power is interrupted. If the record pause mode continues for more than 5 minutes, power is shut off automatically. Press the Start/Stop button to restore the power.
Power is not turned on and no button operations are accepted. Remove the power source, and after about one minute, push the reset switch (behind the jack cover) gently using a toothpick, etc. until you feel a click. The display will be reset. Then set the information again. (beside the AV out jack)
"TAPE" appears in the viewfinder. Have you moved the camera/recorder or cassette from a cold place to a warm place so that its temperature changed abruptly? If the temperature has changed, remove the cassette and set the OPERATE switch to "OFF", then wait for about one hour.
Playback volume is low or no sound recorded. Recording was done with the microphone cap attached.
Sound is heard only from one channel or no sound was recorded. If water splashes directly on the microphone, no sound may be recorded. Dry the microphone thoroughly and make a trial recording before using the camera/recorder.
