Manual for VM-E54A
Uploaded: Aug. 10, 2025, 12:50 a.m.
Manual Publish Date: 1994-01-01
Warranty Information
Limited warranty covers defects in parts and workmanship for 1 year for parts and 90 days for labor.
Getting Started
This section guides you through the initial preparation of the camera/recorder. Familiarize yourself with the controls and prepare for recording. Read and understand all safety instructions before beginning.

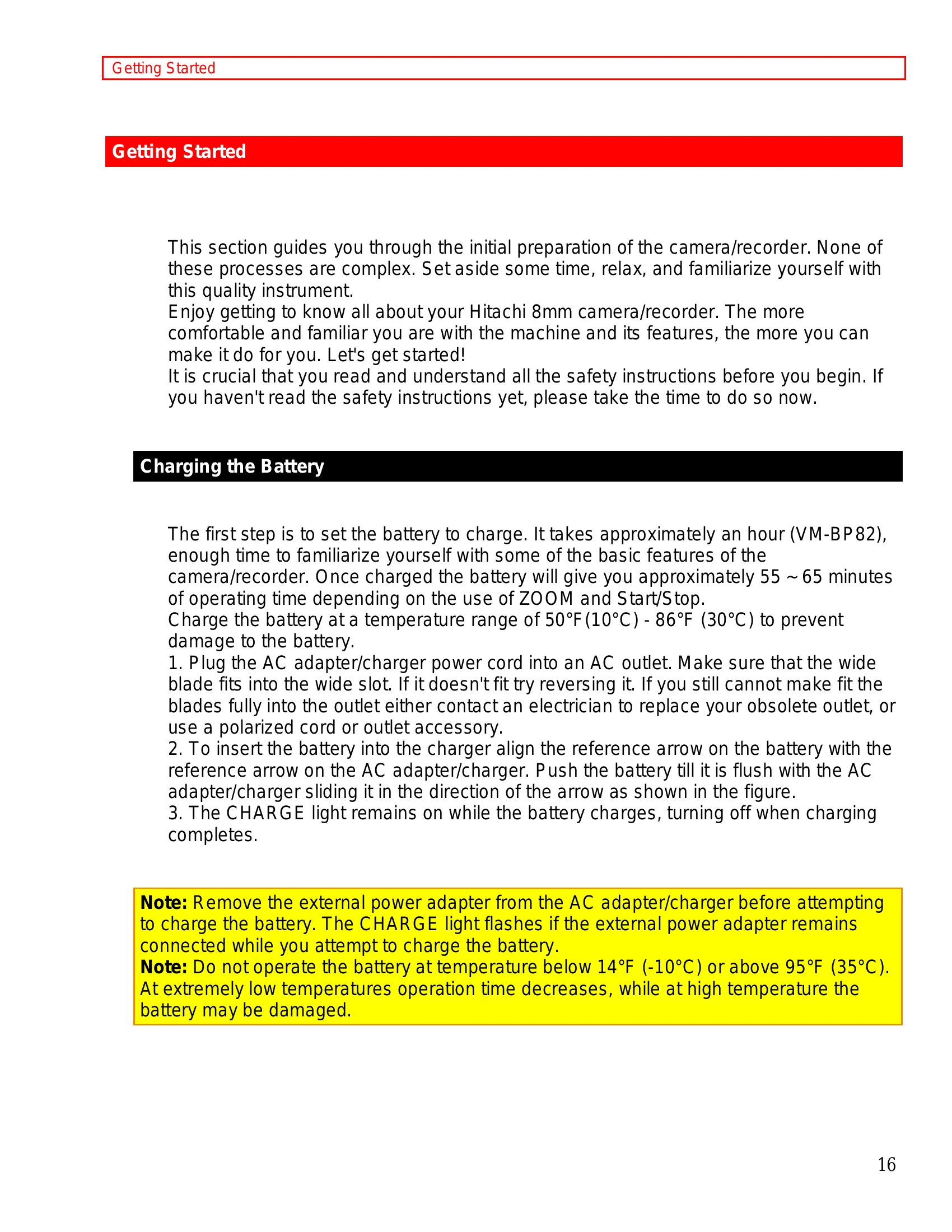

Charging the Battery
Charge the battery (VM-BP82) for approximately one hour. A charged battery provides 55-65 minutes of operating time. Charge within the temperature range of 50°F(10°C) - 86°F (30°C).
- Plug the AC adapter/charger power cord into an AC outlet.
- Align the battery's reference arrow with the adapter's reference arrow and slide the battery in.
- The CHARGE light indicates charging status.
Adjusting the Electronic Viewfinder
Pivot the electronic viewfinder for a comfortable viewing position. Return it to the original position before storing or carrying the camera/recorder.
Eyepiece Adjustment
Pull out the eye cup and adjust the diopter control for the clearest image. Push the eye cup in after use.
Loading Batteries
Remote Control Battery: Insert the battery into the holder with the '+' terminal facing outwards. Replace the holder securely.
Camera/Recorder Battery: Ensure the battery is fully charged. Align the battery's arrow with the camera/recorder's guide arrow and slide it in.
Removing the Battery
Push the BATT EJECT switch and slide the battery out.
Checking the Battery's Charge
The viewfinder displays battery charge status with three symbols: fully charged, partially charged, or nearly out of power.
Using Alternative Power Sources
AC Adapter/Charger: Ensure the camera/recorder switch is OFF. Plug the adapter into an AC outlet and connect it to the DC OUTPUT jack.
Alkaline Dry-Cell Batteries: Insert six "AA" batteries into the optional battery case. Ensure correct polarity. Attach the case to the camera/recorder.
Troubleshooting and error codes
| SYMPTOM | CHECK POINT & CORRECTION |
|---|---|
| "PLAY" button cannot be engaged. | *Set the CAMERA/OFF/VIDEO switch to VIDEO |
| No picture appears on television screen when “PLAY” is pressed. | Set the television to the camera/.recorder channel (3 or 4) depending upon the selected channel in the RF channel. |
| (TV is connected to the camera/recorder by using RF output adapter. | When you see the playback picture on your TV, adjust fine tuning knob on television set to obtain best picture. |
| Picture bends at the top of the TV screen. | TV receiver is older type. It needs to be modified to work properly with camera/recorder. |
| Color of your TV screen is too bright, too faint or change. | Tape is damaged try another cassette. TV set has VIR circuit. Turn it off during playback. |
| BATTERY CONDITION | |
| The ( ) indication in the electronic viewfinder flashes to indicate the battery is discharged. | Try another battery or charge the battery. |
| NO OPERATION IS ACCEPTED | |
| Power is not turned on and no button operations are accepted | Remove the power source and after about one minute, push the reset switch gently using a toothpick, etc, until you feel a click. The display will be reset. Then, set the information again. |
