Brand: HITACHI
Category: Camcorder
Document Type: Manual
Language: EN
Manual for DZ-MV100E
Uploaded: Aug. 10, 2025, 12:52 a.m.

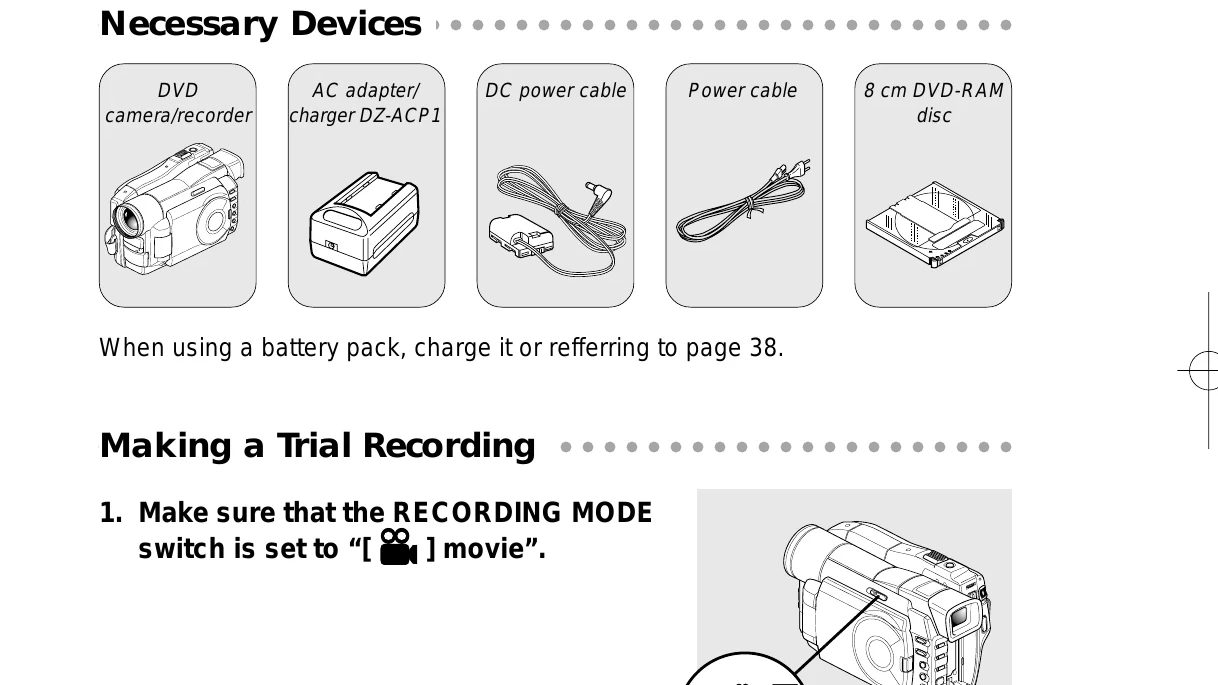

- Trial Recording: Connect to AC power, insert DVD-RAM disc, set recording mode, and press REC to start. Press REC again to stop.
- Playback: Press the Play button to enter playback mode. Press the button to stop playback.
- Power Off: Hold the POWER switch and press down to turn off the unit. Wait for indicators to go off before removing accessories.
Troubleshooting and error codes
| Power | Symptom | Check to see | Correction | Reference page |
|---|---|---|---|---|
| Battery supplies | Battery cannot be charged. | Is DC power cable plugged into the AC adapter/charger? | Disconnect it. | 38 |
| Is the battery attached correctly? | Remove the battery once, make sure of the orientation, and then reattach it. | |||
| The CHG. or CHG.80 indicator on AC adapter/charger blinks during charging. | Is the battery abnormally hot? | Remove the battery, leave it for a while to cool down, then charge it. | ||
| Is the ambient temperature too low or too high? | Charge the battery at 10-30°C. | |||
| The POWER indicator on AC adapter/charger blinks during charging. | Has the battery been unused for a long time? | Remove the battery, and then reattach it. If the battery is still not charged, it may be dead: Purchase a new one. | 41 | |
| During recording | Pressing the REC button will not start recording. | Is the RECORDING MODE switch set to "still"? | If it is set to still, recording is not possible by pressing REC. Set the switch to the movie mode. | 64 |
| Recording starts but stops immediately. | Is disc scratched or does dirt or fingerprint adhere to it? | Clean the disc. If there is still no improvement, replace the disc. | 36 |
