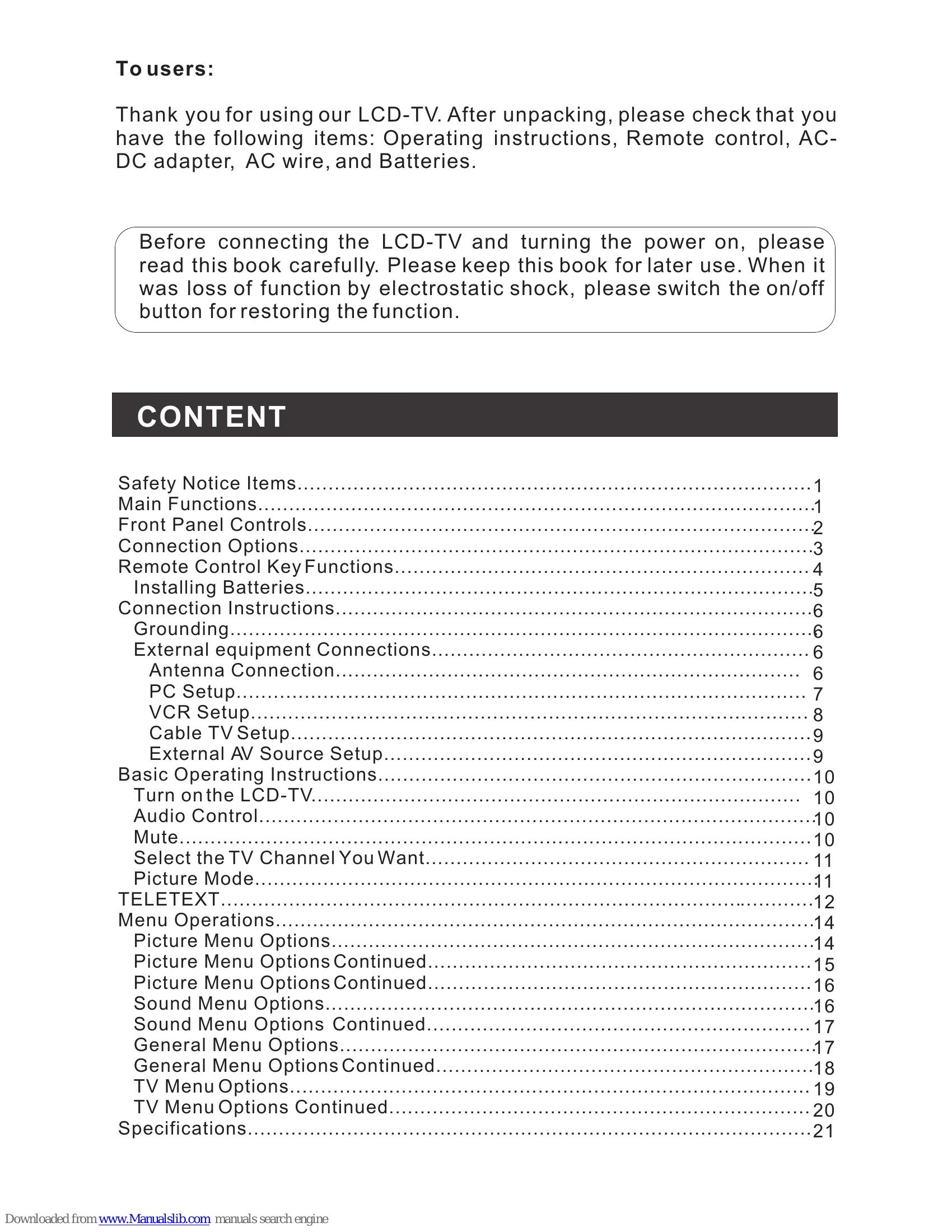

Manual for L15SV6-A0
Uploaded: Nov. 21, 2025, 7:03 p.m.
Warranty Information
Note: Warranty card is only for special countries and areas.
1. **Turning on the TV:** Press the POWER button on the remote or TV panel. The indicator light changes from red to green. The input mode appears on screen for 3 seconds.
2. **Switching Inputs:** Press the TV/AV button to cycle through TV, SCART, PC-RGB, AV, and S-VIDEO modes.
3. **Audio Control:** Use V+ to increase volume and V- to decrease volume. A number indicates the volume level.
4. **Muting Sound:** Press the MUTE button to temporarily mute sound (a mute icon appears). Press MUTE or V+ again to restore sound.
5. **Selecting Channels:** Use number keys (0-9) on the remote to directly select channels up to 9. For channels larger than 9, enter the two digits within 3 seconds.
6. **Picture Mode:** Press the PSM button to cycle through PERSONAL, STANDARD, MILD, and FRESH picture modes.
Troubleshooting and error codes
| No picture/sound | No power | Check the power cord is connected and the power outlet is working. |
| Poor picture quality | Antenna/cable connection | Check the antenna/cable connection. Adjust antenna direction. Use a signal amplifier if needed. |
| No picture in PC mode | Incorrect input selection | Press the TV/AV button to select PC-RGB mode. |
| No sound | Mute is on | Press the MUTE button or V+ to restore sound. |
| Remote control not working | Batteries depleted | Replace the batteries in the remote control. |
