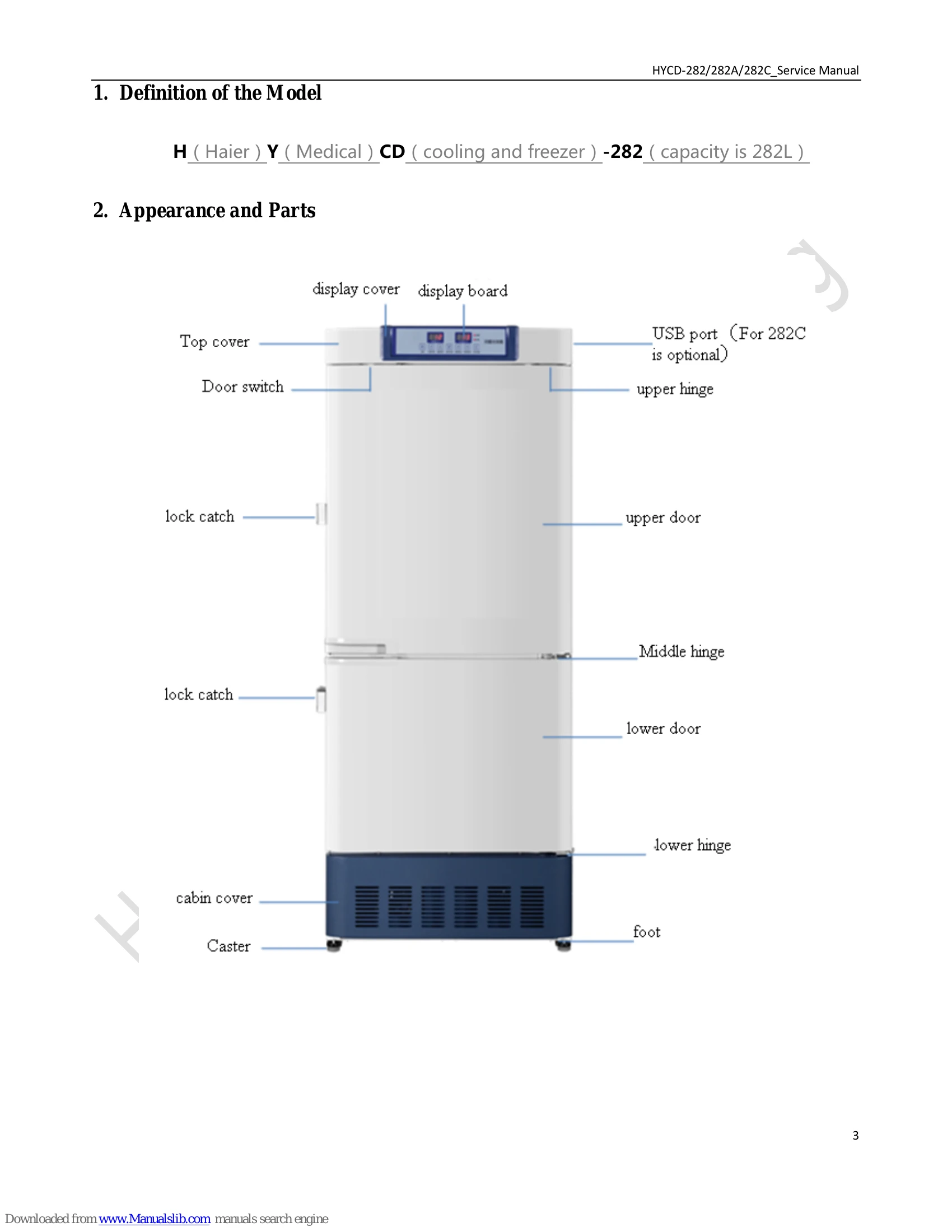

Parts/Service for HYCD-282/282A/282C
Uploaded: Nov. 21, 2025, 6:05 p.m.
HYCD-282/282A/282C Operation Summary
Control Panel Functions:
- Set: Setting parameters and confirm.
- Digit Tran: Adjusting the bit of the parameter.
- Temp Adjust: Adjusting the temperature.
- Temp Zone Tran: Swaps the display between refrigerator and freezer zones.
- Alarm Test: Inquiries alarm code (locked status) or checks LEDs (unlocked status).
- Silence: Pauses alarm sound.
- Defrost: Initiates forced defrosting (hold for 5s in unlock status).
- Light: Cabinet light switch (HYCD-282A only).
Temperature Setting:
- Unlock the keyboard using the specified button combination.
- Press 'Set' to enter temperature setting mode.
- Use 'Digit Tran' to select the parameter (temperature, high/low alarm, etc.).
- Use 'Temp Adjust' to change the value.
- Press 'Set' to save.
Defrosting:
- Forced defrost in the freezer can be initiated by holding the 'Freezing Defrost' button for over 5s.
- The compressor stops, and 'dF' is displayed.
- To stop defrosting, hold the 'Freezing Defrost' button again in unlock status.
USB Storage (HYCD-282C Optional):
- Plug in a U-disk to export data.
- Use 'Unlock' and 'Alarm Test' to check export status.
Troubleshooting and error codes
| Alarm Code | Instruction | Alarm type | Solution |
|---|---|---|---|
| E0 | Ambient sensor failed | light | Inspect Ambient sensor |
| E3 | Cooling sensor failed | Buzz +light+code | Inspect Cooling sensor |
| E6 | Freezer sensor failed | Buzz +light+code | Inspect Freezer sensor |
| N/A | Door open for 15min | Buzz +light | Close door or check the door switch |
| E9 | Temp is higher than limit value | Buzz +light+code | - |
| E10 | Temp is lower than limit value | Buzz +light | - |
| N/A | Power failed | Buzz +light+temp. | Check power |
| E5 | Low battery or switch is off | Light | Check battery or switch |
| N/A | High temperature alarm Low temperature alarm Power falied alarm |
- | - |
