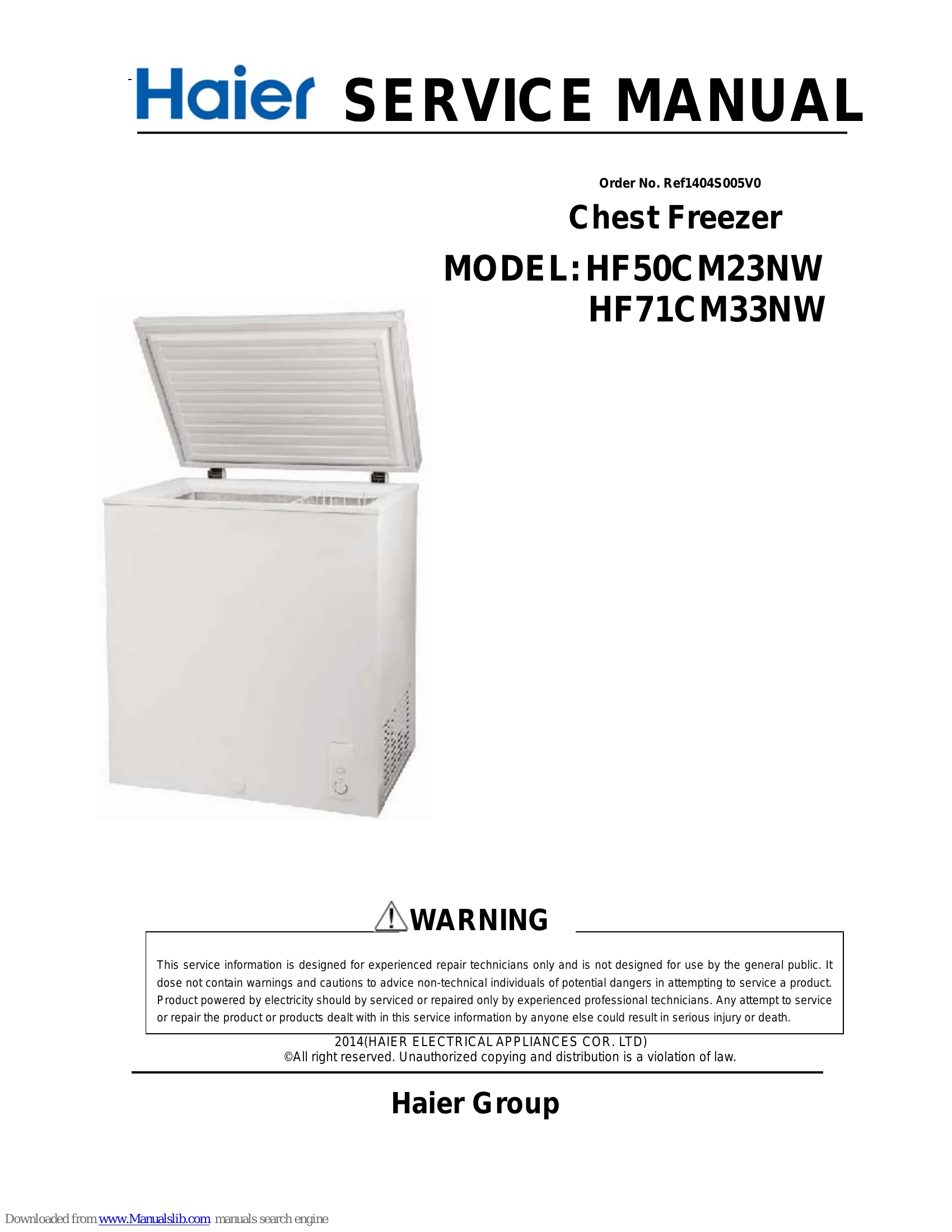

Manual for HF50CM23NW/HF71CM33NW
Uploaded: Nov. 21, 2025, 7:02 p.m.
Manual Publish Date: 2014-04-12
Warranty Information
Refer to the warranty card for detailed warranty information.
Freezer Operation: The freezer temperature is adjusted using a control from 1 to 7, with 7 being the coldest. Adjust the temperature one step at a time and allow several hours for stabilization. For initial startup, clean the interior, connect to power, set the temperature control to 4, and allow the freezer to operate for at least four hours before loading food. On models with a Temperature Monitor or High-Temp Alarm Switch, set the switch to the Min position initially and then to the ON position after loading food.
Troubleshooting and error codes
| Problem | Possible Causes | What To Do |
|---|---|---|
| Freezer does not operate or Power-On Light is not on | Temperature control in OFF or Min or 0 position. | Move the control to a temperature setting. |
| Freezer is unplugged. | Push the plug completely into the outlet. | |
| The fuse is blown/circuit breaker is tripped. | Replace fuse or reset the breaker | |
| Freezer starts/stops too frequently | Door/lid left open. | Check to see if package is holding door/lid open. |
| Too frequent or too long door/lid openings. | ||
| Temperature control set too cold. | See About the operation of the freezer | |
| Freezer operates too long | Door/lid left open. | Check to see if package is holding door/lid open. |
| Too frequent or too long door/lid openings. | ||
| Temperature control set too cold. | See About the operation of the freezer | |
| Inadequate air circulation space around cabinet. | See Preparing to install the freezer | |
| Fast Freeze switch is in the ON position (on some models) | See About the operation of the freezer | |
| Noisy operation or vibrates | Floor may be weak, causing freezer to vibrate when compressor is on. | Placing 2 X 4s (51 mm X 102 mm) under the length of the freezer will help support it and may reduce vibration. |
| Cabinet is not positioned solidly on floor | See Preparing to install the freezer Or use shims for uneven floor | |
| Freezer temperature too warm | Door/lid left open. | Check to see if package is holding door/lid open. |
| Too frequent or too long door/lid openings. | ||
| Foods defrosting | Temperature control OFF or Min or 0 positions. | Move the control to a temperature setting. |
| Freezer is unplugged. | Push the plug completely into the outlet. | |
| The fuse is blown/circuit breaker is tripped. | Replace fuse or reset the breaker | |
| Freezer temperature too cold | Door/lid left open. | Check to see if package is holding door/lid open. |
| Too frequent or too long door/lid openings. | ||
| Temperature control set too cold. | See About the operation of the freezer | |
| Fast Freeze switch is in the ON position or has run for too long (on some models) | About the operation of the freezer | |
| Moisture forms on outside of cabinet | Not unusual during periods of high humidity | Wipe surface dr |
| Interior light does not work (on some models) | No power at outlet. | Replace fuse or reset the breaker |
| Freezer is unplugged. | Push the plug completely into the outlet. | |
| Light bulb burned out. | Replace bulb. | |
| Door/lid wont fully close by itself | Package holding door/lid open. | Check to see if package is holding door/lid open. |
| Slow starting time after being off | Built-in overload product. | |
| Door/lid left open. | Check to see if package is holding door/lid open. | |
| Excessive frost build-up | Too frequent or too long door/lid openings. | |
| Not unusual during periods of high humidity |
