Brand: Haier
Category: Dryers
Document Type: Manual
Language: EN
Manual for HD90-A2979
Uploaded: Nov. 21, 2025, 6:31 p.m.
Warranty Information
Refer to the warranty card provided with the product for warranty details.

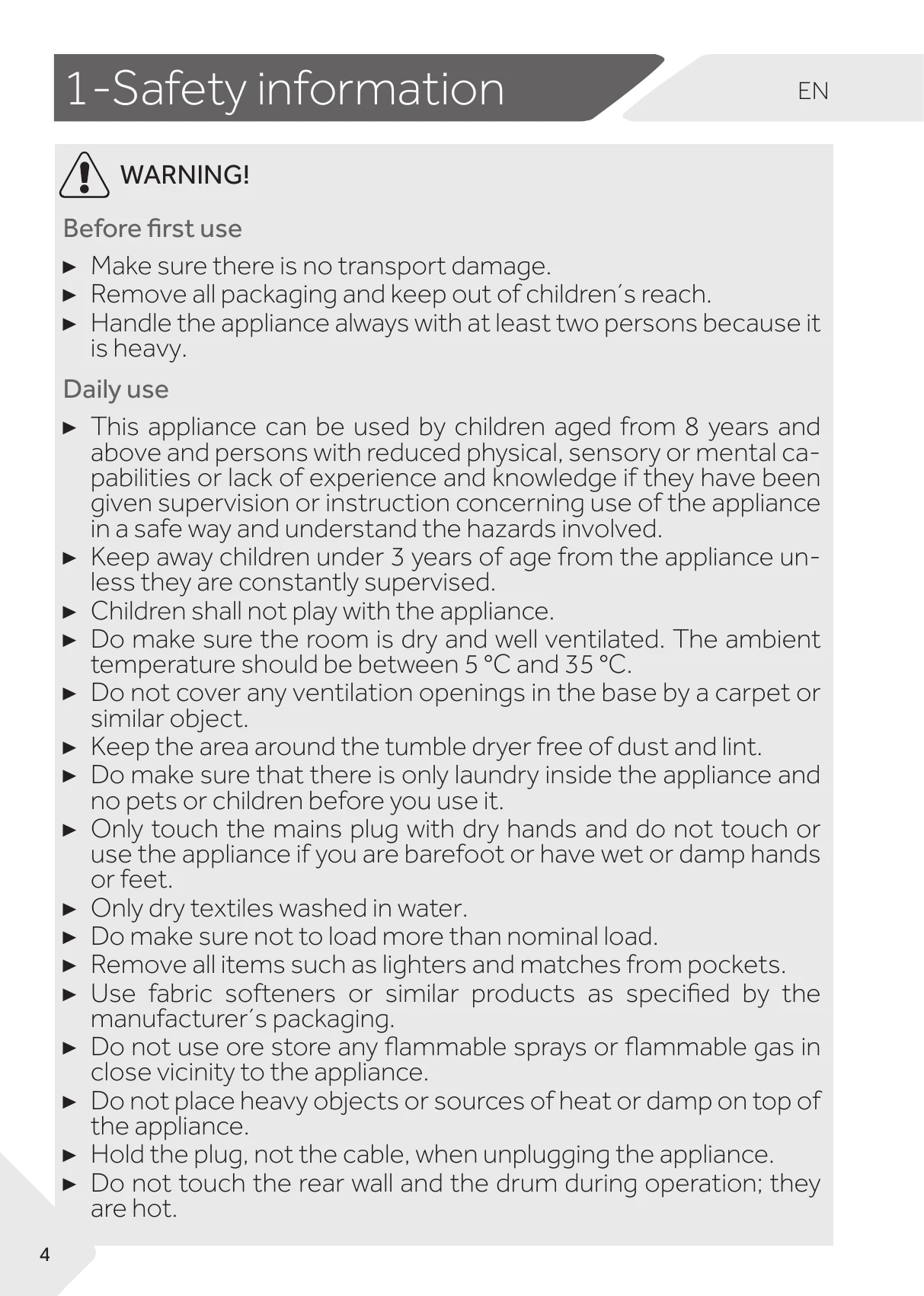

The appliance is intended for drying items washed in water and marked suitable for tumble drying. It is designed for domestic use. Ensure the room is dry and well-ventilated (5°C-35°C). Do not cover ventilation openings. Keep the area around the dryer free of dust and lint. Only dry laundry washed in water and not overloaded. Remove items from pockets. Do not use flammable sprays nearby. Hold the plug, not the cable, when unplugging. Do not touch the rear wall and drum during operation as they are hot. Do not dry unwashed items, items contaminated with flammable substances, or items with rubber/foam rubber filling. Clean lint filters and condenser filter regularly. Empty water tank after each cycle. Use a damp cloth for external cleaning.
Troubleshooting and error codes
| Code | Cause | Solution |
|---|---|---|
| F2 | Drain pump error. | Contact the customer service. |
| F32 | The condenser thermal sensor is open-circuited or short-circuited. | Contact the customer service. |
| F33 | Temperature of the laundry in the drum does not change. | Contact the customer service. |
| F5 | Communication failure between PCB and display. | Contact the customer service. |
| LO | Temperature is too low. | Use the dryer when air temperature is higher than 5 °C. |
| E2 | The door is not closed or door lock failure. Note:only for HD100-2979. | Close the door or contact the customer service. |
