Brand: Haier
Category: Dishwashers
Document Type: Manual
Language: EN

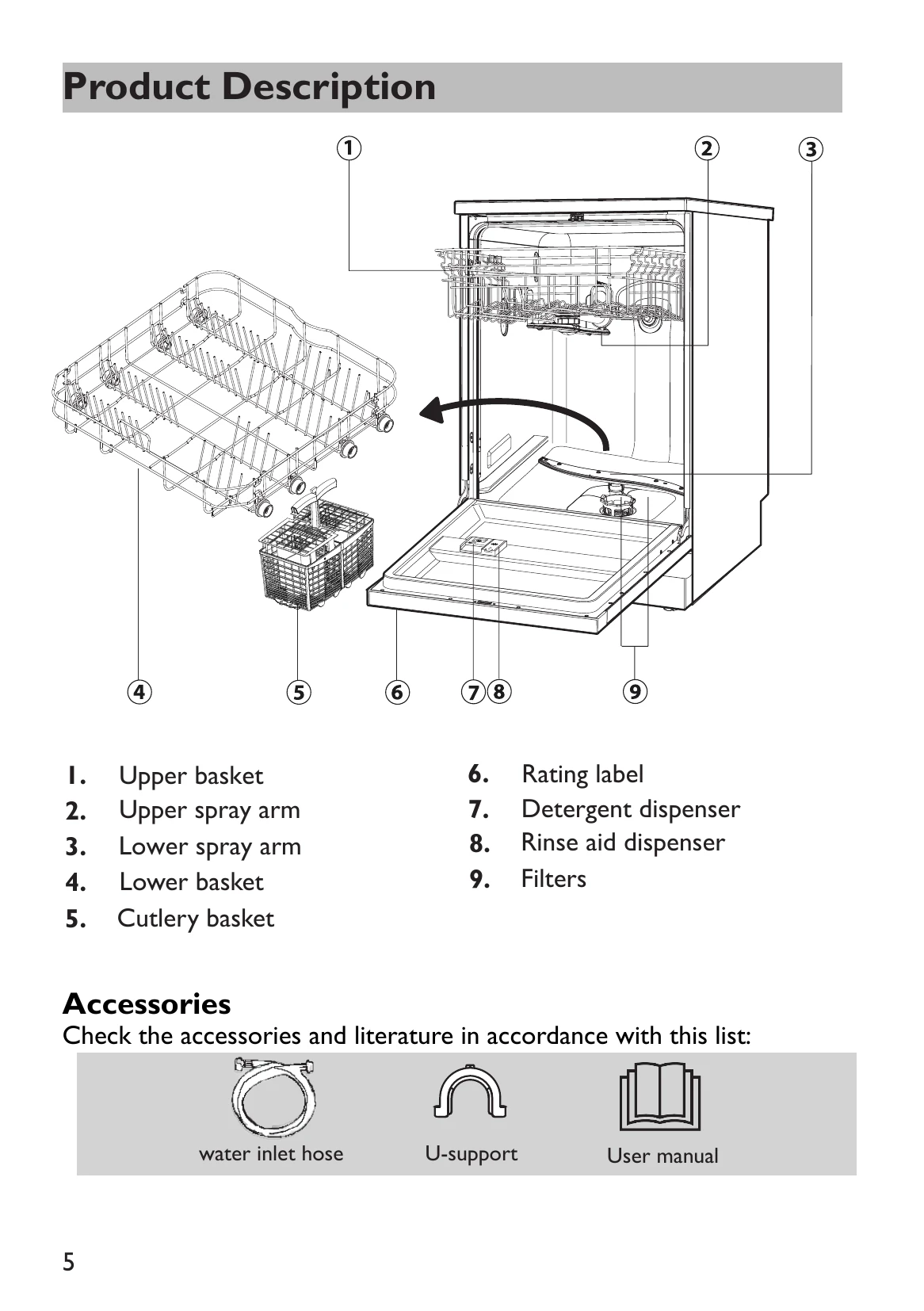

Manual for HDWI13VIWI
Uploaded: Nov. 21, 2025, 9:19 p.m.
Warranty Information
Refer to the warranty card for specific warranty information.
Loading the baskets:
Place dishes, cups, cutlery, pots, and pans in the appropriate baskets. Ensure items are dishwasher-safe and free of food debris. For optimal results, arrange items to allow water to reach all surfaces. Avoid overcrowding and ensure spray arms can rotate freely.
Selecting a programme:
Press the ON/OFF button. Select the desired wash programme based on the type and soil level of the dishes. Options include Auto, Heavy, Light, Glass, Rinse, and ECO.
Adding detergent and rinse aid:
Use dedicated dishwasher detergent. Add detergent to the main wash compartment and, if necessary, the pre-wash compartment. Ensure rinse aid dispenser is filled and adjust the setting if needed.
Starting and interrupting:
Close the door and press the START/PAUSE button to begin. To interrupt, press START/PAUSE or open the door. Close the door or press START/PAUSE again to resume.
End of programme:
The appliance will indicate the end of the programme. Switch off the appliance or allow it to enter standby mode. Open the door slightly to aid drying and let dishes cool before unloading.
Troubleshooting and error codes
| Problem | Possible cause | Possible solution |
|---|---|---|
| The programme does not start. | Appliance door is open. | Close the appliance door. |
| Delay start is set. | Refer to displayed time. | |
| Mains plug is not connected in the mains socket. | Connect the mains plug. | |
| Fuse in the house circuit is damaged. | Replace the fuse. | |
| Rinse Aid Indicator is lighted. | Rinse aid dispenser is empty. | Refill Rinse aid until full. |
| Refill of rinse aid was not confirmed. | Press and hold the START/PAUSE button for 3 sec after each refill. | |
| Acoustic alarm, display shows ALARMCODE A10 The appliance does not fill with water. | Water tap is closed. | Open the water tap. Note: Whenever Error 'A10' is solved switch off the appliance and restart the programm. |
| Water inlet hose has a kink or a bend. | Make sure that the position of the hose is correct. | |
| In case of aqua-stop system: water protection is triggered; the marker (C) is red. | The hose must be replaced. | |
| Acoustic alarm, display shows ALARMCODE A20 The appliance does not drain sufficiently. | Filter in the water inlet hose is clogged. | Clean the filter at the inlet hose connections at tap and the rear of the appliance. |
| Water inlet is clogged. | Check water flow from tap. | |
| Water pressure is too low. | Contact your local water authority. | |
| Filters are clogged. | Scoop out as much water as possible. Clean filters. Continue programme by pressing the START/PAUSE button. | |
| The drainage is blocked. | Scoop out as much water as possible. Make sure that drain water-connection and piping is correct and not blocked. Continue programme by pressing the START/PAUSE button. | |
| Acoustic alarm, display shows ALARMCODE F30 Leak: The drain pump runs permanently! | Anti-flood device is on: • There are water leakages in the appliance. • The water inlet valve is open and blocked. • The drainage is blocked. | 1 Close the water tap. 2 Disconnect appliance from power supply. 3 Contact Service. |
| The dishes are not clean. | Filters are clogged. | Clean the filters. |
| Filters are not correctly assembled and installed. | Make sure that the filters are correctly assembled and installed. | |
| Spray arms are clogged. | Remove remaining food remnants with a thin pointed object. | |
| Programme was not applicable for the type of load and food remnants. | Make sure that the programme is applicable for the type of load and food remnants. | |
| Incorrect position of the items in the baskets. Water could not wash all items. | Make sure that the position of the items in the baskets is correct and that the water can easily wash all items. | |
| Spray arms could not turn freely. | Make sure that the position of the items in the baskets is correct and does not cause the blockage of the spray arms. | |
| No detergent or insufficient quantity of detergent in the detergent dispenser. | Make sure that you add the correct quantity detergent in the dispenser before you start a programme. | |
| The wash cycle was interrupted by a long break. | Do not open the door or cut power supply during the wash cycle. | |
| Whitish streaks, stains or bluish layers on glasses and dishes. | Released quantity of rinse aid is too much. | Decrease the released quantity of rinse aid. Refer to section DIFFERENT SETTINGS FOR RINSE AID. |
| Quantity of detergent was too much. | Make sure that you add the correct quantity of detergent in the dispenser before you start a programme. | |
| Multitab detergent tablets used with a short programme might not fully dissolve. | Select a longer programme when using Multitab detergent tablets. | |
| The dishes are wet. | • Programme had no drying phase. • Programme had a low temperature drying phase. | Open the door slightly and leave it ajar (about 100 mm) to help the drying process. |
| The dishes are wet and matte. | Rinse aid dispenser is empty. | Refill rinse aid into the dispenser and reset the rinse aid indicator. |
| Quality of rinse aid or Multitab. | Cleaning product too old; change the product. |
