Warranty Information
The warranty period is one year from the date of purchase.

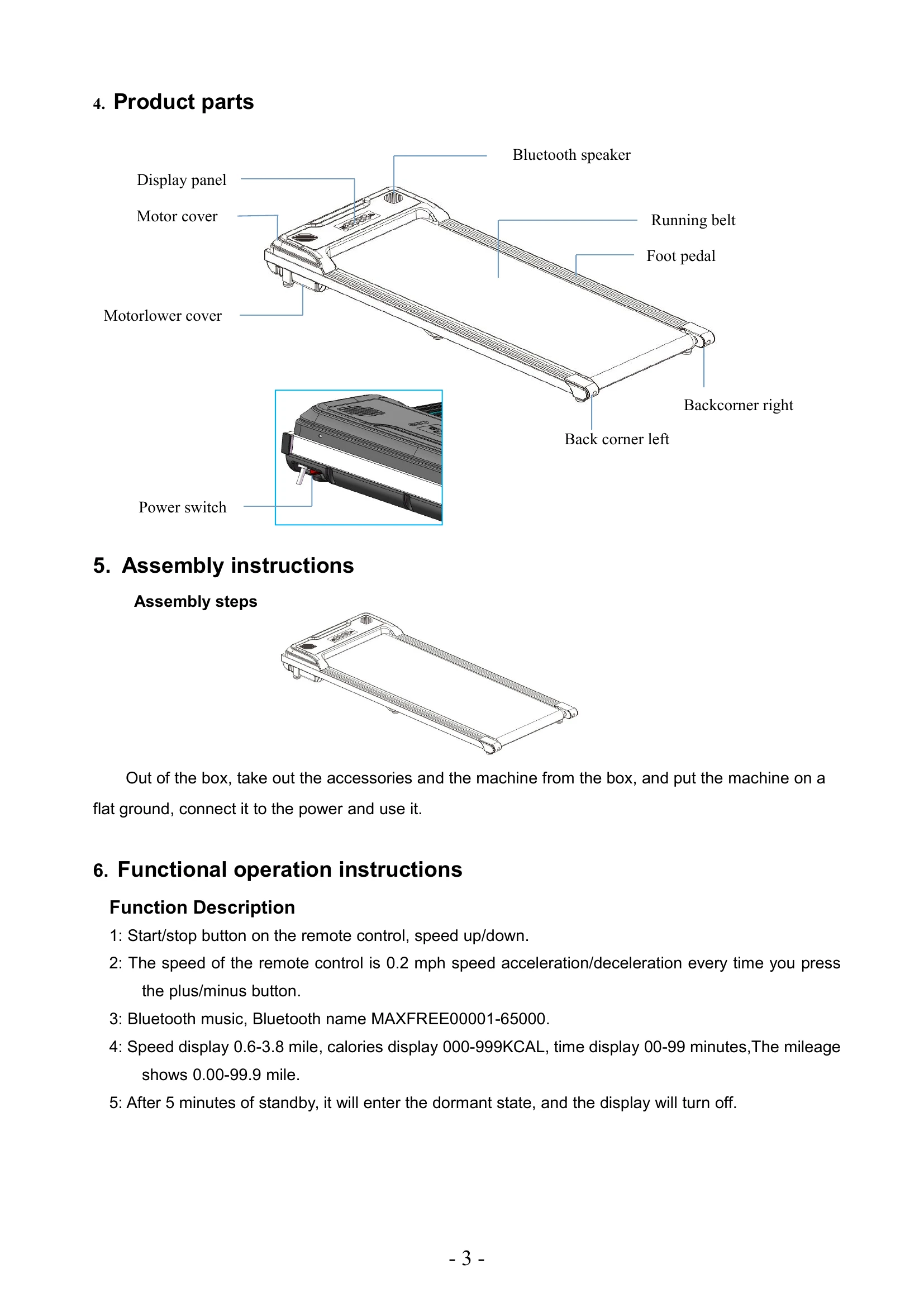

Basic Operation:
1. Start/Stop: Use the remote control's power button to start or stop the treadmill. Pressing it during operation will stop the machine.
2. Speed Control: Use the '+' and '-' buttons on the remote to adjust speed in 0.2 mph increments. A long press will continuously increase/decrease speed.
3. Bluetooth Music: Connect to the treadmill via Bluetooth using the name "maxfree 00001-65000".
4. Display: The screen shows speed (0.6-3.8 mph), calories (0-999 KCAL), time (0-99 min), and mileage (0.00-99.9 miles).
5. Standby: After 5 minutes of inactivity, the treadmill enters a dormant state and the display turns off.
1. Start/Stop: Use the remote control's power button to start or stop the treadmill. Pressing it during operation will stop the machine.
2. Speed Control: Use the '+' and '-' buttons on the remote to adjust speed in 0.2 mph increments. A long press will continuously increase/decrease speed.
3. Bluetooth Music: Connect to the treadmill via Bluetooth using the name "maxfree 00001-65000".
4. Display: The screen shows speed (0.6-3.8 mph), calories (0-999 KCAL), time (0-99 min), and mileage (0.00-99.9 miles).
5. Standby: After 5 minutes of inactivity, the treadmill enters a dormant state and the display turns off.
Troubleshooting and error codes
| Code | Causes | Resolutions |
|---|---|---|
| E01 | Poor communication between electronic meter and controller | 1. Check connection between electronic meter and controller. 2. Re-tighten main IC of controller contacts. 3. Controller power supply abnormal, change controller. |
| E02 | Explosion-proof and impact-proof protection | 1. Motor open or bad contact, replace motor or check terminals. 2. Power tube breakdown, replace it or controller. |
| E05 | Over current protection | 1. Overload. 2. Treadmill resistance too heavy, needs lubrication. 3. Motor is damaged, replace it. |
| E06 | Overload protection | 1. Overload. 2. Treadmill resistance too heavy, needs lubrication. 3. Motor is damaged, replace it. |
