Parts/Service for 318047306
Uploaded: Nov. 21, 2025, 8:38 p.m.
Warranty Information
This manual does not contain warranty information.

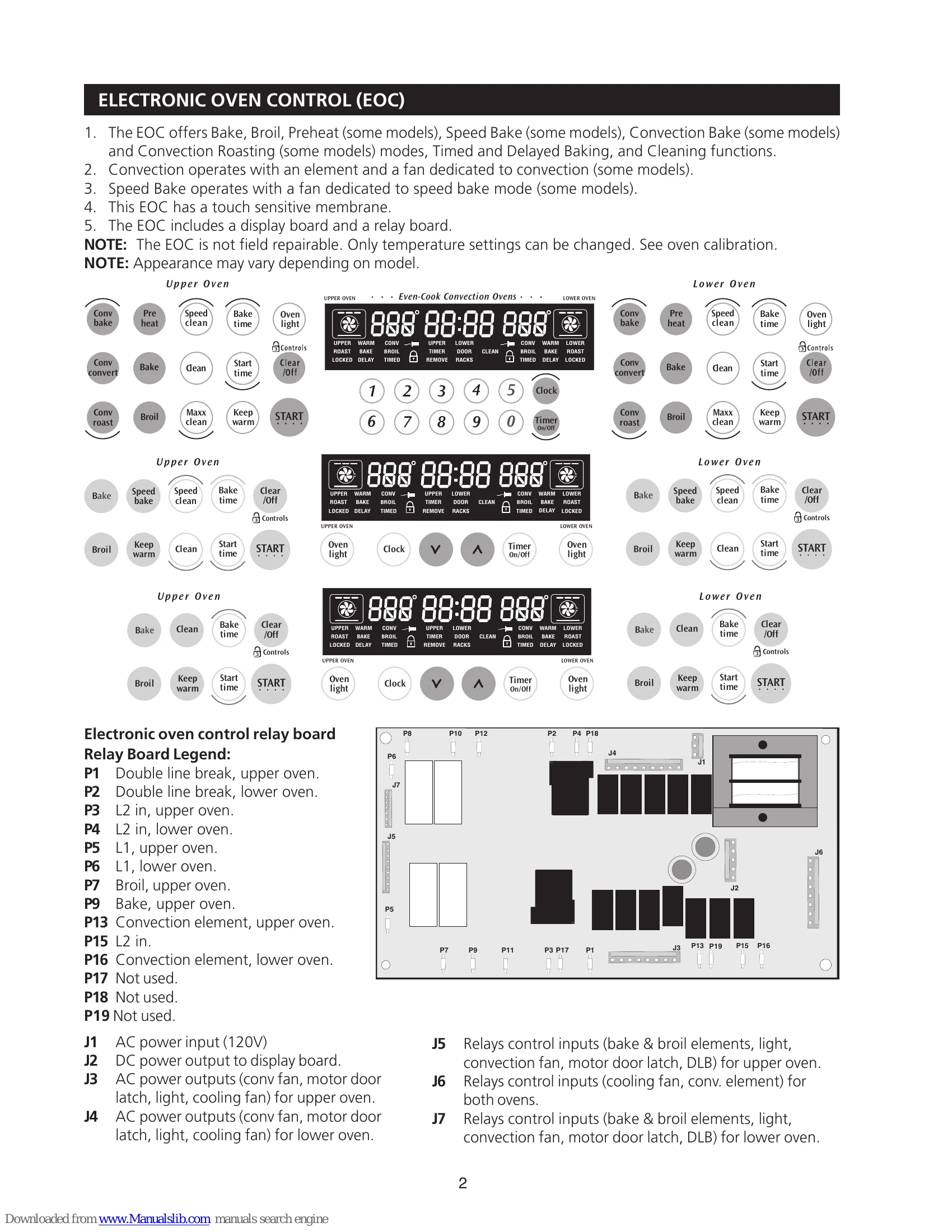

The Electronic Oven Control (EOC) offers various cooking modes including Bake, Broil, Preheat, Speed Bake, and Convection Bake/Roast. It also supports Timed and Delayed Baking, and Cleaning functions. Convection modes utilize a dedicated element and fan. Speed Bake uses a dedicated fan. The EOC features a touch-sensitive membrane, a display board, and a relay board. It is not field-repairable beyond temperature calibration. Basic operations include setting cooking modes, temperatures, and timers. Safety practices emphasize proper grounding and using specified replacement parts. The system includes fault codes for troubleshooting, such as potential runaway oven conditions, shorted keys, corrupted checksums, misconnected cables, controller self-checks, and door mechanism failures. The manual also details oven element operation for different modes and temperature adjustment procedures.
Troubleshooting and error codes
| Failure Code/Condition/Cause | Suggested Corrective Action |
|---|---|
| F10 Control has sensed a potential runaway oven condition. Control may have shorted relay, RTD sensor probe may have a gone bad. | Check RTD sensor probe and replace if necessary. If oven is overheating, disconnect power. If oven continues to overheat when power is reapplied, replace power/relay board and/or display board. Severe overheating may require the entire oven to be replaced, should damage be extensive. |
| F11 Shorted Key: a key has been detected as pressed (for more than the debounce period) will be considered a shorted key alarm and will terminate all oven activity. | Press Clear or Cancel key. If fault returns, replace the keyboard (membrane). If the problem persist, replace the display board. |
| F13 Control's internal checksum may have become corrupted. | Press Clear or Cancel key. Disconnect power, wait 30 seconds ad reapply power. If fault returns upon power-up, replace display board. |
| F14 Misconnected keyboard cable. | Disconnect power. Verify the flat cable connection between the keyboard membrane and the display board on J2. If the connection is good but the problem persist, replace the keyboard (membrane switch). If the problem persist, replace the display board. |
| F15 Controller self check failed. | Replace the display board. |
| F30 Open RTD sensor probe/ wiring problem. Note: EOC may initially display an "F10", thinking a runaway condition exists. | Check wiring in probe circuit for possible open condition. Check RTD resistance at room temperature (compare to probe resistance chart). If resistance does not match the chart, replace the RTD sensor probe. |
| F31 Shorted RTD sensor probe / wiring problem. Note: F30 or F31 is displayed when oven is in active mode or an attempt to enter an active mode is made. | Let the oven cool down and restart the function. If the problem persist, replace the display board. |
| F90 Door motor mechanism failure. | Press CLEAR key. If CLEAR key does not eliminate problem, turn off power for 30 seconds, then turn on power. Check wiring of Lock Motor, Lock Switch and Door Switch circuits. Unplug the lock motor from the board and apply power (L1) directly to the Lock Motor. If the motor does not rotate, replace Lock Motor Assembly. Check Lock Switch for proper operation (do they open and close, check with ohmmeter). The Lock Motor may be powered as in above step to open and close Lock Switch. If the Lock Switch is defective, replace Motor Lock Assembly. If all above steps fail to correct situation, replace the display board or the relay board in the event of a motor that does not rotate. |
