Basic Operation Summary

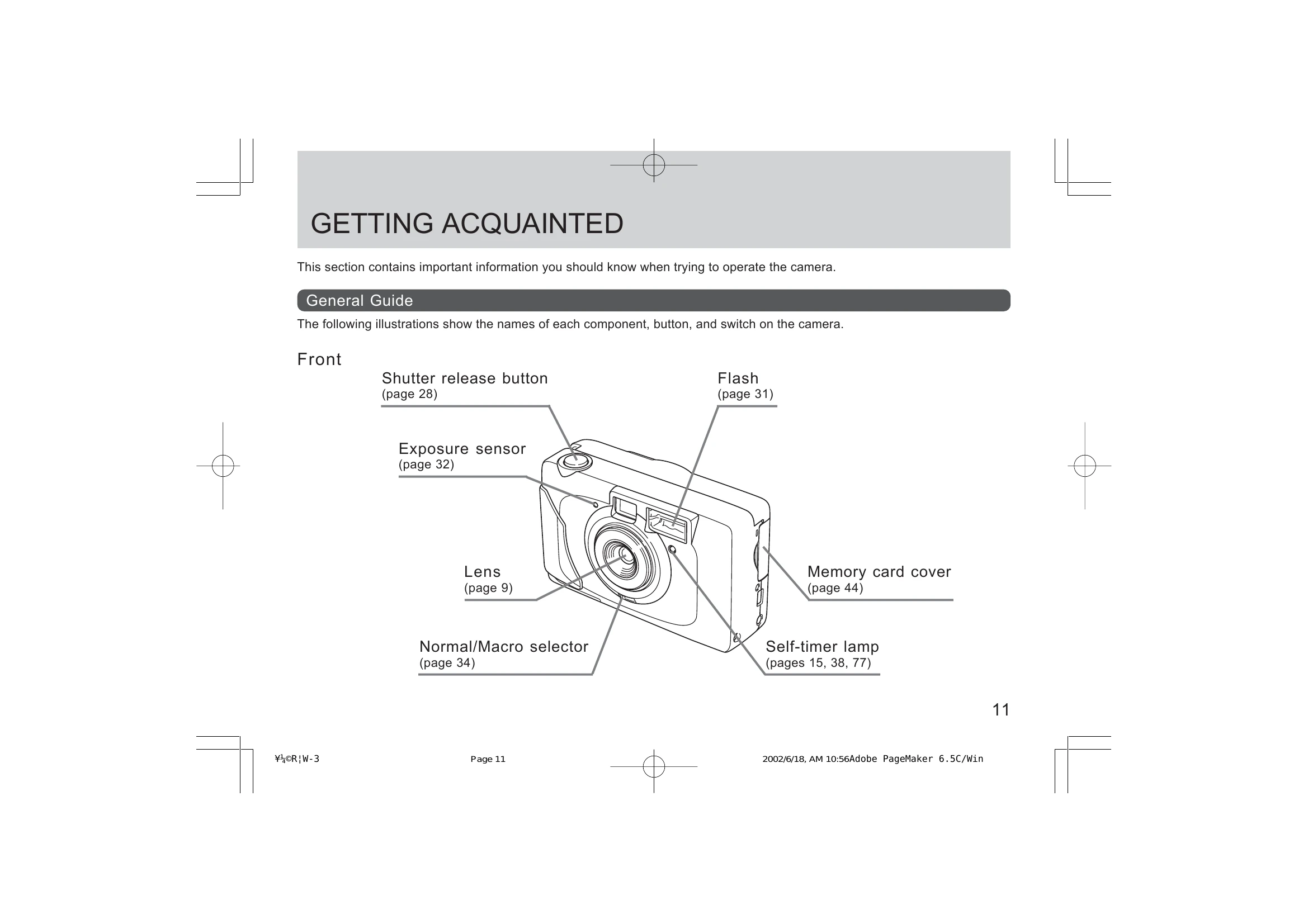

This guide covers the fundamental operations of your LCD Digital Camera. It includes sections on getting acquainted with the camera's components (front, back, side, bottom), understanding the monitor screen indicators in both REC and PLAY modes, and using indicator lamps. It also details how to attach the strap, use the soft case, and manage power requirements, including loading batteries (alkaline, lithium, Ni-MH) and using AC power. The manual explains how to turn the camera on/off, set power save features, and adjust date/time settings. Crucially, it guides users through recording images, including snapshots, using zoom, flash, self-timer, and macro mode. Playback features, image management (folders, files, protection, DPOF), deletion, and connecting to external equipment like TVs and computers via USB are also covered. Finally, it provides troubleshooting tips and display message explanations.

Troubleshooting and error codes

Problem Possible Cause Action
Power does not turn on. 1. Batteries are not oriented correctly.
2. Batteries are dead.
3. Wrong AC adaptor type being used. 		1. Orient batteries correctly (page 18).
2. Replace batteries (page 18).
3. Use only an AD-C620 AC adaptor.
Camera suddenly powers down. 1. Auto Power Function activated (page 24).
2. Batteries are dead. 		1. Turn power back on.
2. Replace batteries (page 18).
Image is not recorded when the shutter release button is pressed. 1. Mode selector is aligned with FINDER.
2. Flash unit is being charged.
3. Memory is full. 		1. Set the mode selector to LCD.
2. Wait until flash unit charging finishes.
3. Delete images you no longer need, or use a different memory card.
Digital zoom does not work. The image size setting is "S 800 x 600." Change the image size setting to "L 1600 x 1200" (page 39).
Camera powers down during self-timer countdown. Batteries are dead. Replace batteries (page 18).
Monitor screen image is out of focus. 1. Macro Mode [ICON] being used for scenery or portraits.
2. Normal Mode [ICON] being used for macro image. 		1. Set the Normal/Macro selector to [ICON] (Normal) for scenery and portraits.
2. Set the Normal/Macro selector to [ICON] (Macro) for macro images.
Recorded images are not saved in memory. 1. Camera powers down before the save operation is complete.
2. Removing the memory card before the save operation is complete. 		1. If the [ICON] indicator is on the monitor screen, replace batteries with a full set of new ones as soon as possible.
2. Do not remove the memory card before the save operation is complete.
Color of the playback image is different from the image on the monitor screen during recording. Sunlight or light from another source is shining directly into the lens during recording. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. A memory card with non-DCF images recorded with another camera is loaded in the camera. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
Monitor screen contents do not appear on the screen of a connected television. 1. There is a problem with the camera-TV connection.
2. TV setup is wrong.
3. Video system is incompatible. 		1. Use the special video cable to connect the camera to the TV correctly (page 67).
2. Consult the documentation of the TV and put it in its video mode.
3. Select the proper video output system (page 67).
The image selection screen does not appear when DELETE is selected. All the images in memory are protected. Unprotect the images you want to delete (page 55).
All buttons and switches are disabled. Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device. Remove the camera's batteries, disconnect the AC adaptor, replace the batteries, and turn on power again.
Monitor screen is off. 1. Sleep mode activated.
2. USB cable is connected.
3. Video cable is connected to the camera.
4. Mode selector is set to FINDER. 		1. Press any button to recover from the sleep mode (page 24).
2. After confirming that the computer is not accessing the memory card, disconnect the USB cable.
3. Disconnect the video cable.
4. Set the mode selector to LCD.
Cannot transfer images or perform PC camera operations after connecting to a computer with the USB cable. 1. Wrong USB mode is selected.
2. USB driver is not installed.
3. Camera is turned off. 		1. Select the USB mode that suits the operation you are trying to perform (page 64).
2. Install the USB driver in accordance with the "Installation guide".
3. Turn on the camera (page 23).
