Manual for Car Recorder
Uploaded: Aug. 10, 2025, 12:33 a.m.
Getting Started
- Inserting the Memory Card: Insert the memory card with gold contacts facing the back of the device until it clicks.

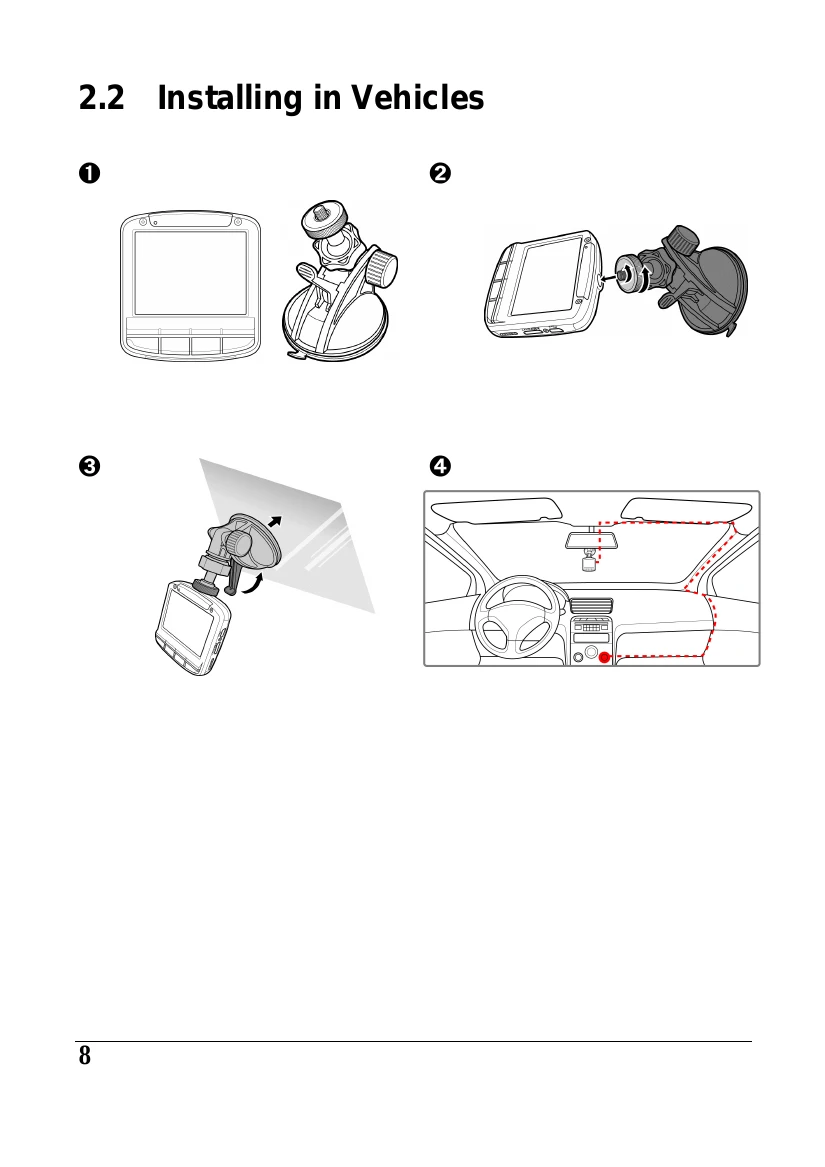

- Installing in Vehicles: Mount the device near the rear-view mirror, ensuring it's within the wiper's range. Connect the power adapter to the cigarette lighter socket.
- Connecting to Power: Use the provided car adapter. Plug one end into the device's USB connector and the other into the vehicle's cigarette lighter socket. The device turns on when the engine starts.
- Powering On/Off: The device turns on automatically with the vehicle. To turn it off manually, press and hold the POWER button for at least 2 seconds.
Basic Operations
- Recording Videos: When the engine starts and Automatic Record is enabled, recording begins automatically. Press the ▼ button to stop recording manually. To start recording manually, press the OK button.
- Emergency Recording: Press the OK button during video recording to enter emergency mode. The recorded file will be protected.
- Playback: Press the ← button to enter OSD menu, then select File Playback. Choose Video or Emergency, then press OK to play.
- Taking Snapshot: From the standby screen, press the ▼ button to take a snapshot.
Troubleshooting and error codes
| No. | Item | Description |
|---|---|---|
| 1 | Duration | Indicates the recording duration. |
| 2 | Date and time | Indicates the current recording date and time. |
| 3 | Guide icon (Menu) | Press the ← button to enter the OSD menu. |
| 4 | Guide icon (Playback) | Press the △ button to switch to Playback mode. |
| 5 | Resolution | Indicates the video resolution. |
| 6 | Battery | Indicates the remaining battery power. |
| 7 | Guide icon (Stop) | Press the ▼ button to stop the recording. |
| 8 | Guide icon (Emergency) | Press the OK button to continuously record the video in one file until the recording is manually stopped. |
