Manual for ZDP30
Uploaded: Nov. 21, 2025, 7:19 p.m.
Manual Publish Date: 2004-03-01
Warranty Information
Offers a one-year full warranty and a limited five-year warranty on gas surface burners.

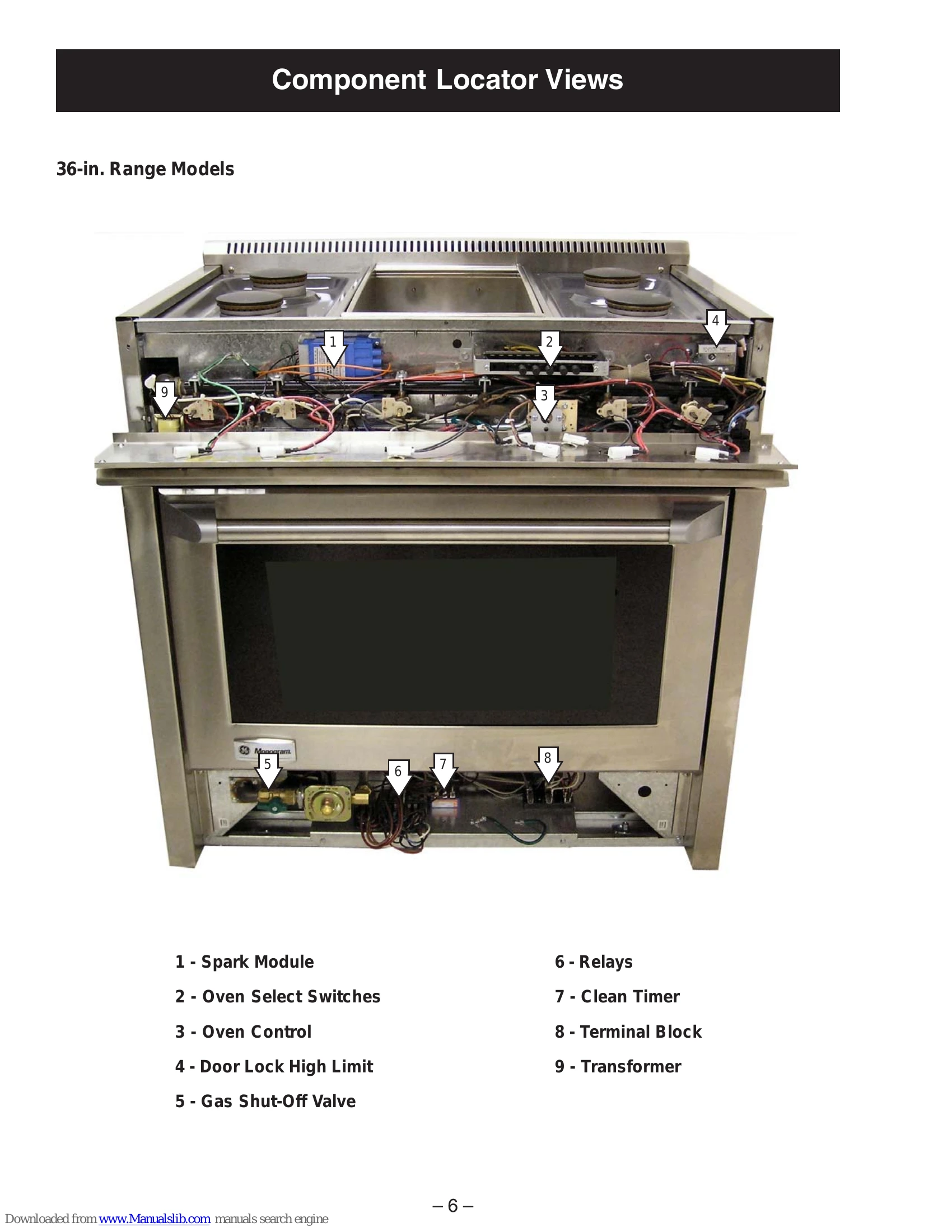

This technical service guide provides detailed information for Monogram Dual Fuel Pro Ranges and Monogram Gas Cooktops. It covers component access, removal, and installation for various parts including oven doors, burners, griddles, igniters, fans, and electrical components. The guide also includes troubleshooting steps, flame characteristics, orifice sizes, and wiring diagrams for different models (30-in., 36-in., and 48-in.). Safety warnings and maintenance procedures are emphasized throughout.
Troubleshooting and error codes
| PROBLEM | POSSIBLE CAUSE | CORRECTION |
|---|---|---|
| Burner will not light | Igniter not sparking |
• Check spark module, transformer, and wiring connections. • Ensure electrodes are clean and properly seated. |
| Igniter sparks continuously | Flame not sensed |
• Check electrode for water; ensure it is dry. • Verify burner assembly is seated properly. |
| Flame is yellow or lifting | Incorrect air mixture | • Adjust air shutter (see Grill or Griddle Air Adjustment). |
| Oven temperature inaccurate | Thermostat calibration | • Recalibrate oven thermostat (see Oven Thermostat Calibration). |
| Oven door lock not engaging/disengaging | Lock motor assembly issue | • Check K3 relay, lock motor, and associated switches. |
