Brand: GE
Category: Other
Document Type: Parts/Service
Language: EN
Parts/Service for JP3030J
Uploaded: Nov. 21, 2025, 7:22 p.m.
Manual Publish Date: 2015-11-01
Warranty Information
GE will replace any cooktop part failing due to defects in materials or workmanship within one year.

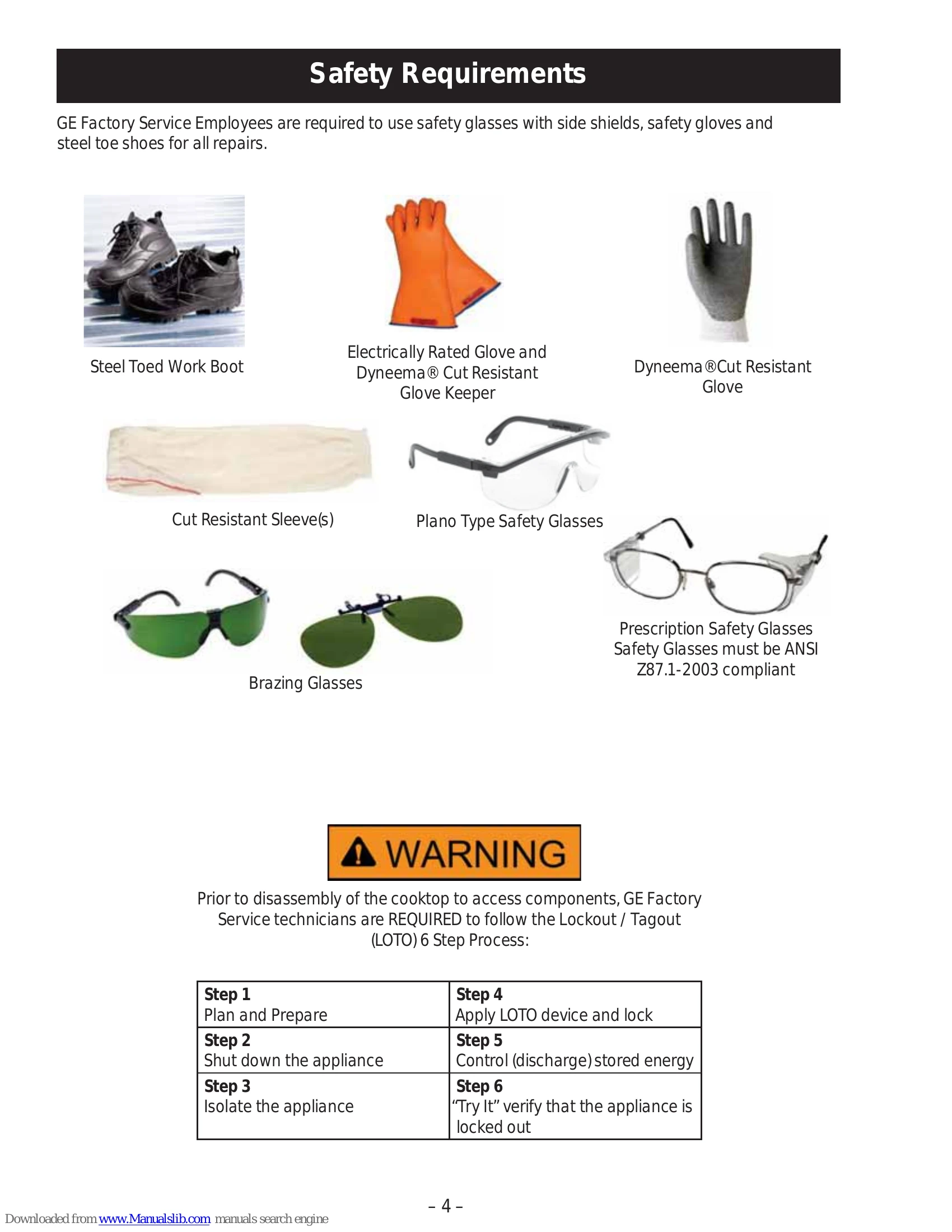

This service guide provides detailed information for the 2015 GE Electric Radiant and Induction Cooktops. It covers safety requirements, product features, component access for both electronic control and induction models, wiring diagrams, schematics, troubleshooting steps, service modes, and fault codes. Specific sections address radiant element access, infinite switch operation, and induction cooking technology. The manual also lists available accessories and provides a comprehensive index.
Troubleshooting and error codes
| Fault Code | Issue Description | Possible Fixes |
|---|---|---|
| User Interface | ||
| F1x | UL "On" Indicator Light/LED failure | Replace Display Board (under Touch Board) |
| F7x | User Interface (UI) Button Matrix Error | Replace Touch Board |
| F82 | User Interface (UI) Microprocessor Error | Replace Display Board (under Touch Board) |
| Machine Control (MC) | ||
| F6x | UI cannot communicate with Machine Control | Check wires connecting UI to MC. Replace Machine Control. Replace Display Board (under Touch Board). |
| F81 | Machine Control (MC) Microprocessor Error | Replace Machine Control |
