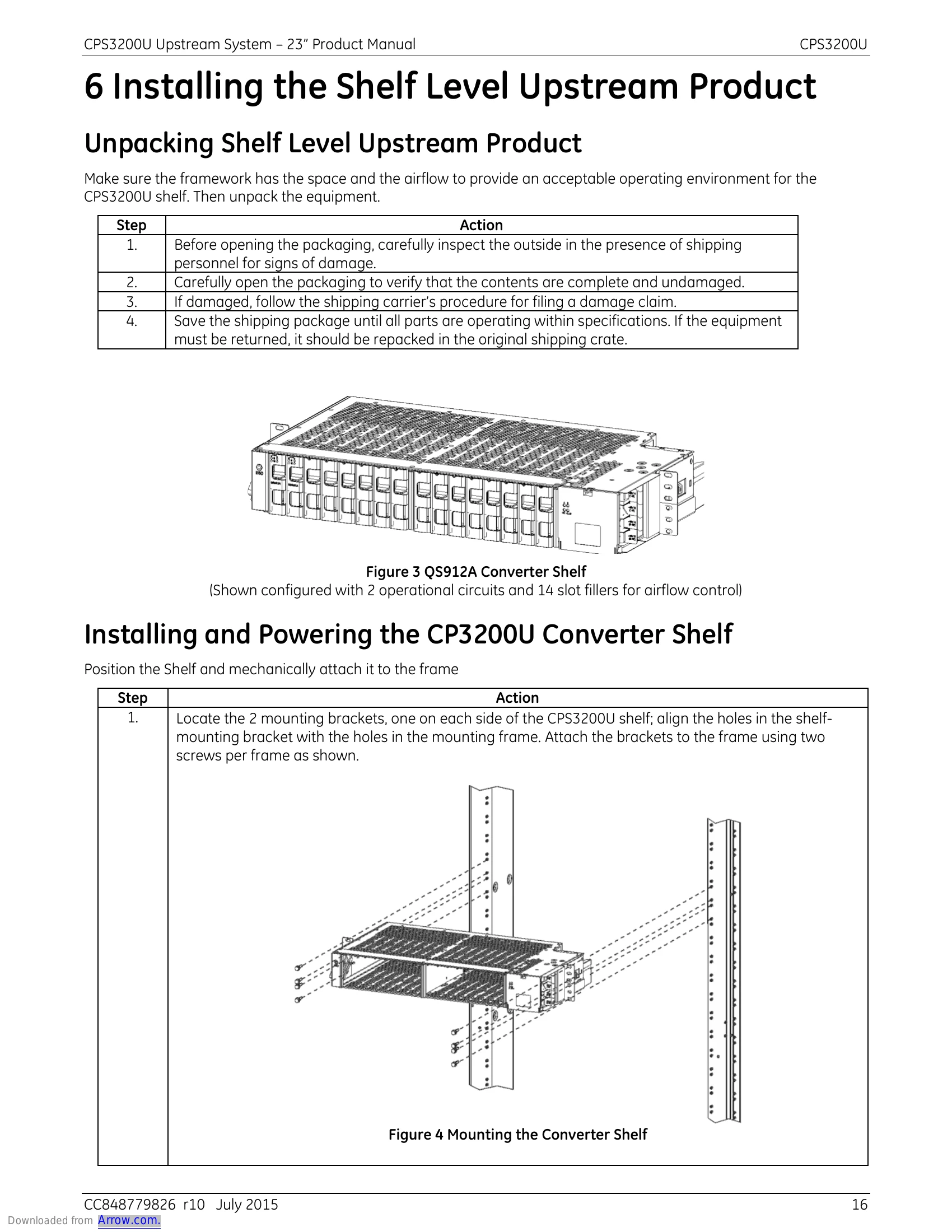

The CPS3200U Upstream System is a DC/DC converter for line powering FTTN networks, delivering power over telephone lines. It converts -48V DC input to ±190V DC output, with each output safety limited to 100VA and ground fault protected. The system consists of 16 converter/limiter cards in a 2 RU shelf and is designed for applications requiring reliable powering of electronics at a distance from the source. It supports up to 24 shelves managed by a central controller.

Troubleshooting and error codes

Alarm DisplayWhat it meansQS941 LED StateAlarm Card Relay StateConverter Card LED StateCorrective Action
LED StateRelay StateOK LED StateALM LED StateAlarm LED State
Circuit FailShort + to -YellowMinYellowMinGreenFlashing YellowMake sure each converter has an independent isolated send and return path.
Circuit FailShort to GroundYellowMinYellowMinFlashing RedFlashing RedMake sure each converter has an independent isolated send and return path.
Communication Fail1 Card RemovedYellowMinYellowMinGreenOffCheck to see that all cards are seated. Replace non-functioning cards.
Communication Fail2 Cards RemovedRedMajRedMajGreenOffCheck to see that all cards are seated. Replace non-functioning cards.
Communication FailCable RemovedRedMajFlashing RedGreenOffCheck communication path from alarm cards to QS941 controller. If no controller is present, set alarm card rotary switch to position 0 for contact closures only.
Communication FailAlarm Card Removed StandbyRedMajGreenFlashing RedGreenYellowRemove unit from standby if desired using QS941 or Ethernet interface.
Circuit FailOpen FuseYellowMinYellowMinGreenFlashing YellowReplace unit. Note: Restoring service to one line will interrupt service to the other line served by that card.
Circuit FailUnder VoltageYellowMinYellowMinFlashing YellowReplace unit. Note: Restoring service to one line will interrupt service to the other line served by that card.
Fan Fail1 Fan Tray FailedYellowMinYellowMinGreenOffReplace fan tray.
Fan Fail1 of 6 fans Failed on one Fan TrayYellowMinYellowMinGreenOffReplace fan tray.
Fan Fail2 Fan Trays FailedRedMajRedMajGreenOffReplace fan trays.
Input PowerA1-8 Power FailYellowMinA RedMinGreenOffReconnect DC input power flowing to the A1-8 input terminal.
Input PowerB1-8 Power FailYellowMinB RedMinGreenOffReconnect DC input power flowing to the B1-8 input terminal.
Input PowerA9-16 Power FailYellowMinA RedMinGreenOffReconnect DC input power flowing to the A9-16 input terminal.
Input PowerB9-16 Power FailYellowMinB RedMinGreenOffReconnect DC input power flowing to the B9-16 input terminal.
Input Power Mul Circuit FailA1-8 & B1-8 Power FailRedMajA Red B RedMajGreenOffReconnect DC input power flowing to the A1-8 input terminal and Reconnect DC input power flowing to the B1-8 input terminal.
Input Power Mul Circuit FailA9-16 & B9-16 Power FailRedMajA Red B RedMajGreenOffReconnect DC input power flowing to the A9-16 input terminal. Reconnect DC input power flowing to the B9-16 input terminal.
Load DropLoad DropYellowMinA, B & OKGreenGreenOffCheck the integrity of the circuits going to the load. Or Adjust load drop threshold to 0 to disable this feature.
Load ShareAs set of circuits assigned to one remote destination are not sharing current as would be expectedYellowMinA, B & OKGreenGreenOffCheck the integrity of the circuits going to the load. Or Adjust load share threshold to disable this feature.
Line TestOK, Fail or AbortedYellowMinA, B & OKGreenGreenOffEstimated line resistance has increased since last measurement.
Loss Of RedundancyYellowMinA, B & OKGreenGreenOffThe loss of n additional circuits will cause customers to lose service. Check redundancy threshold in the configuration.
