Monitor Operation Summary

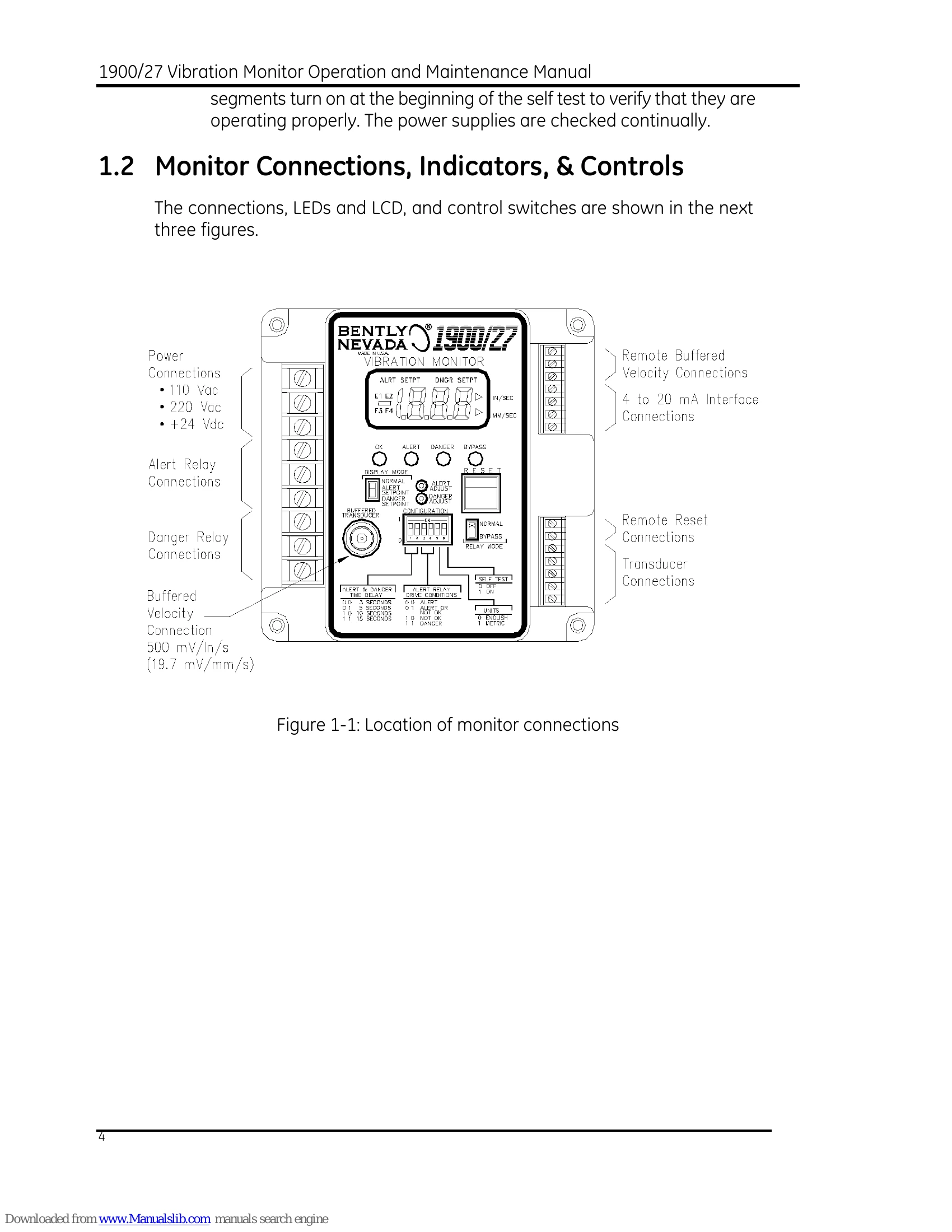

The 1900/27 Vibration Monitor provides continuous vibration monitoring for machinery. It utilizes a transducer to measure shaft vibration transmitted to the case, serving as a key indicator of overall mechanical condition. The monitor can detect various malfunctions like imbalance, misalignment, and bearing wear. It features a digital LCD display for overall vibration or setpoints, status LEDs for OK, alarm, or bypass conditions, and a remote reset option. Programmable features include relay behavior (latching/non-latching, energized/de-energized), time delays for alarms, alert relay configurations, and unit selection (English/Metric). The monitor also includes a self-test function for troubleshooting.

Troubleshooting and error codes

Problem

Possible Solution

E3 error is displayed on LCD (NOT OK Condition detected).

Verify that connectors are firmly seated and free of corrosion
Verify transducer is properly wired
Verify no shorts exist between wires at connector
Verify that the transducer power supply is working properly by measuring the voltage between transducer PWR(RED)and COM(BLK). Acceptable range is 4.9 to 5.2 Vdc
Verify that the transducer cable is working properly by replacing it with a known good cable
Verify that the transducer is working properly by either replacing it with a known good transducer or by testing the existing transducer for proper operation on a shake table.
