Manual for FCM5, FCM7, FCM9

Manual for FCM5, FCM7, FCM9

Brand: GE

Category: Freezer

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:16 p.m.

Warranty Information

1-year full warranty on parts and labor, 5-year on sealed system, plus food spoilage coverage with limits.

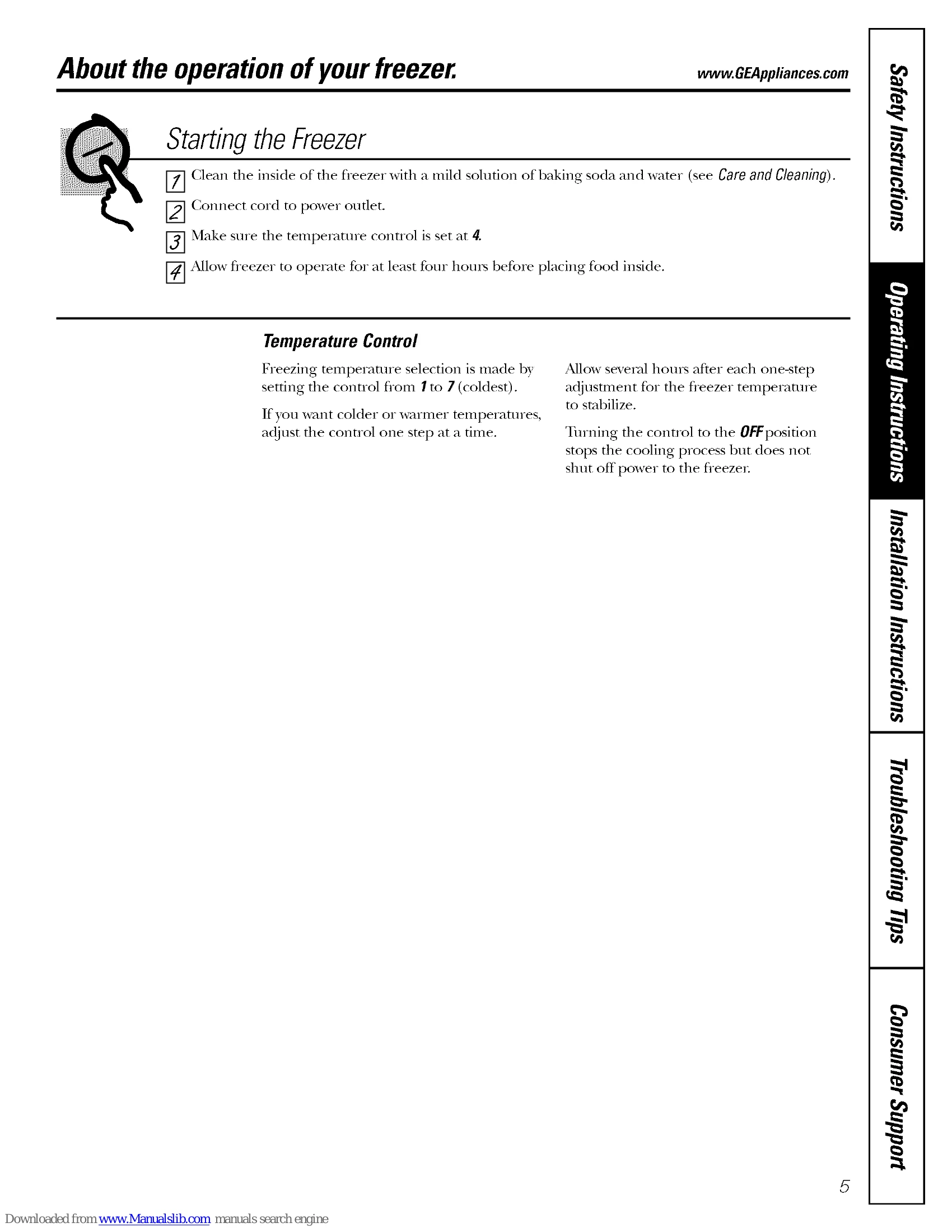

  • Starting the Freezer: Clean inside, connect power, set temp control to 4, and allow to run for 4 hours before loading food.
  • Temperature Control: Settings range from 1 (warmest) to 7 (coldest). Adjust one step at a time and allow hours for stabilization. OFF stops cooling but not power.
  • Features: Power-On Light indicates electrical connection. Key-Ejecting Lock has a spring-loaded key.
  • Defrosting: Recommended twice a year when frost reaches 1/2 inch. Turn control to OFF, unplug, remove food, use hot water to loosen frost, drain water, clean, and restore.
  • Cleaning: Outside: Polish with appliance wax. Inside: Use warm water and baking soda solution. Use baking soda box to absorb odors.
  • Extended Power Failure: Keep lid closed, add dry ice if needed.
  • Moving/Vacation: Disconnect power, defrost, clean, secure items. For vacations, ensure power is on or move food.
  • Light Bulb Replacement: Unplug, remove screws, replace bulb.

Troubleshooting and error codes

Problem Possible Causes What To Do
Freezer does not operate or Power-On Light is not on Temperature control in OFF position. Freezer is unplugged. The fuse is blown/circuit breaker is tripped. • Move the control to a temperature setting.
• Push the plug completely into the outlet.
• Replace fuse or reset the breaker.
Freezer starts/stops too frequently Door/lid left open. Too frequent or too long door/lid openings. Temperature control set too cold. • Check to see if package is holding door/lid open.
• See About the operation of your freezer.
Freezer operates too long Door/lid left open. Too frequent or too long door/lid openings. Temperature control set too cold. Inadequate air circulation space around cabinet. • Check to see if package is holding door/lid open.
• See About the operation of your freezer.
• See Preparing to install the freezer.
Noisy operation or cabinet vibrates Floor may be weak, causing freezer to vibrate when compressor is on. Cabinet is not positioned solidly on floor. • Placing 2 X 4's (51 mm X 102 mm) under the length of the freezer will help support it and may reduce vibration.
• Adjust Legs. See Preparing to install the freezer. Or use shims for uneven floor.
Freezer temperature too warm Door/lid left open. Too frequent or too long door/lid openings. • Check to see if package is holding door/lid open.
Foods defrosting Temperature control in OFF position. Freezer is unplugged. The fuse is blown/circuit breaker is tripped. Door/lid left open. Too frequent or too long door/lid openings. • Move the control to a temperature setting.
• Push the plug completely into the outlet.
• Replace fuse or reset the breaker.
• Check to see if package is holding door/lid open.
Freezer temperature too cold Temperature control set too cold. • See About the operation of your freezer.
Moisture forms on outside of cabinet Not unusual during periods of high humidity. • Wipe surface dry.
Interior light does not work (on some models) No power at outlet. Freezer is unplugged. Light bulb burned out. • Replace fuse or reset the breaker.
• Push the plug completely into the outlet.
• Replace bulb.
Door/lid won't fully close by itself Package holding door/lid open. • Check to see if package is holding door/lid open.
Slow starting time after being off Built-in overload protection.
Excessive frost build-up Door/lid left open. Too frequent or too long door/lid openings. Not unusual during periods of high humidity. • Check to see if package is holding door/lid open.
