Brand: GE
Category: Dryer
Document Type: Parts/Service
Language: EN
Parts/Service for DCVH480EK0WW
Uploaded: Nov. 21, 2025, 6:34 p.m.
Manual Publish Date: 2009-11-12
Warranty Information
The dryer has a one-year limited warranty covering parts and labor for defects in materials or workmanship.

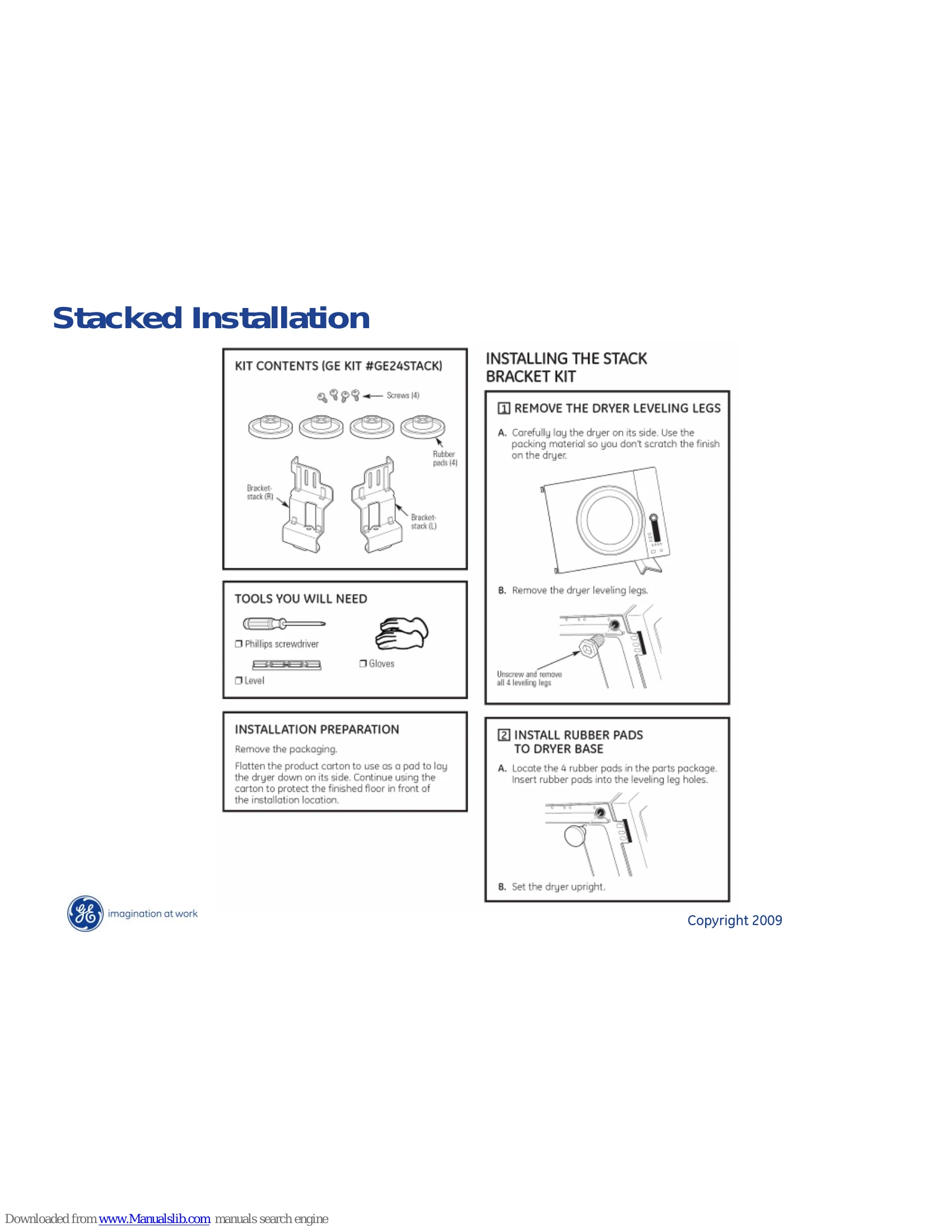

The document provides service and installation information for the GE 24" DCVH480 Series Dryer. It covers safety notices, installation of stacking kits, electrical connections, door swing reversal, lint screen access, door switch testing, PCB component locations and testing, and service test modes.
Troubleshooting and error codes
| Error Code | Component, System, or Test | Description and Corrective Action |
| E00 | No Error | There are no errors to display. |
| tS | Thermistor Short | Thermistor voltage is over 4.8 VDC for more than 5 seconds. Check the PCB, wire, and thermistor. |
| t0 | Thermistor Open | Thermistor voltage is under 0.2 VDC for more than 5 seconds. Check the PCB, wire, and thermistor. |
| dE | Door Fail | Door interrupt voltage is continuously low level. Check the PCB. |
| od | Over Dry | The time of dry process and cooling process is over 240 minutes. Check the PCB. |
| HE | Heating Error | Heating temperature is over 75 degrees Celsius for more than 10 seconds. Check the PCB. |
| FE | Power Frequency Error | Power frequency is 50 Hz for more than 15 seconds. Check the power frequency and PCB. |
| bE2 | Button Error | When button is continuously pressed for more than 30 seconds. Check the button and PCB. |
| 3E1 | Motor Relay Open | When the motor state is running, the control detects the higher motor signal within the 120 seconds. Check the PCB, wire, and motor. |
| 3E2 | Motor Relay Stuck | When the motor state is stop, the control detects the zero cross motor signal within the 60 seconds. Check the PCB, wire, and motor. |
