Brand: GE
Category: Air Conditioner
Document Type: Installation Guide
Language: EN
Installation Guide for AZ9VH
Uploaded: Nov. 21, 2025, 8:24 p.m.
Warranty Information
Limited one-year warranty on parts and labor, with a five-year limited warranty on the sealed refrigeration system.
This manual provides instructions for the installation and operation of the GE Zoneline Vertical Air Conditioner, model AZ9VH. It covers safety information, features, care and cleaning, installation steps, electrical connections, auxiliary controls, troubleshooting, and warranty.

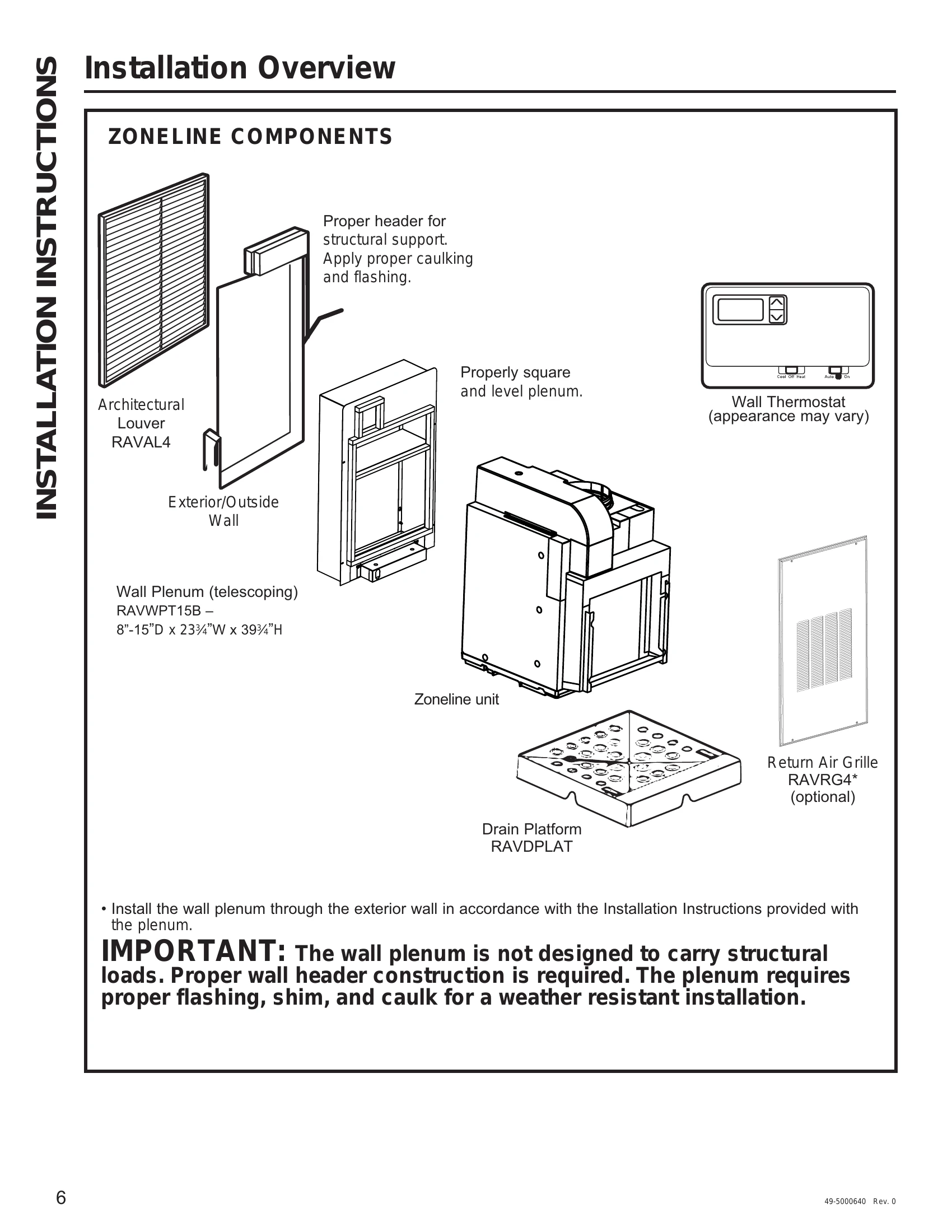

Key features include temperature control, heat pump operation, quick heat recovery, and various modes for fan speed, heating, and cooling settings. The installation section details components, wall plenum installation, drain connections, ductwork, and electrical hookups. Troubleshooting guides normal sounds and potential issues, while auxiliary controls allow customization of unit functions.
Troubleshooting and error codes
| Problem | Possible Causes | Correctives |
|---|---|---|
| Zoneline does not start. | Direct connect harness is not attached securely. | Remove junction box cover and ensure the black connector on the power cord is inserted securely. |
| The air conditioner or heating of the Zoneline is insufficient. | Indoor airflow is restricted. | Ensure the front of the Zoneline is not blocked by curtains, blinds, or furniture. |
| A burning smell is perceived at the beginning of operation in heating mode. | Dust is present on the heating elements. | Dust can cause a burning smell at the beginning of heating mode. This should disappear rapidly. |
| The air is not always hot or cold during operation. | The temperature in the room was perhaps too low or too high. | Adjust the temperature to a lower or higher value. The temperature limiter may restrict the range of values. |
| The air seems not warm enough in heating mode. | The heat pump alone supplies air that is slightly less warm than desired. | Use the Boost Heat (Mode 9 AUX) or All Electric Heat (Mode 8 AUX) option. Note: Using these options will increase energy consumption. |
| The unit does not blow air. | The fan setting (ventilator) of the wall thermostat is perhaps set to "auto". | If you want air to circulate even when the Zoneline is not actively heating or cooling the room, set the wall thermostat to "on". |
| Electric heating and ventilation functions do not work. | The Personality jumper is not securely connected. | Remove the junction box cover and ensure the black connector on the power cord is inserted securely. |
| The unit does not operate after the remote wall thermostat installation. | Incorrect thermostat connections. | Verify that the wiring between the thermostat and the unit's thermostat connector is correct. |
| The heat pump operates with electric heat only during heating. | Auxiliary mode 8 is not set correctly. | Refer to the Auxiliary Control Settings section. Verify if auxiliary mode 8 is set to OFF for heat pump operation. |
