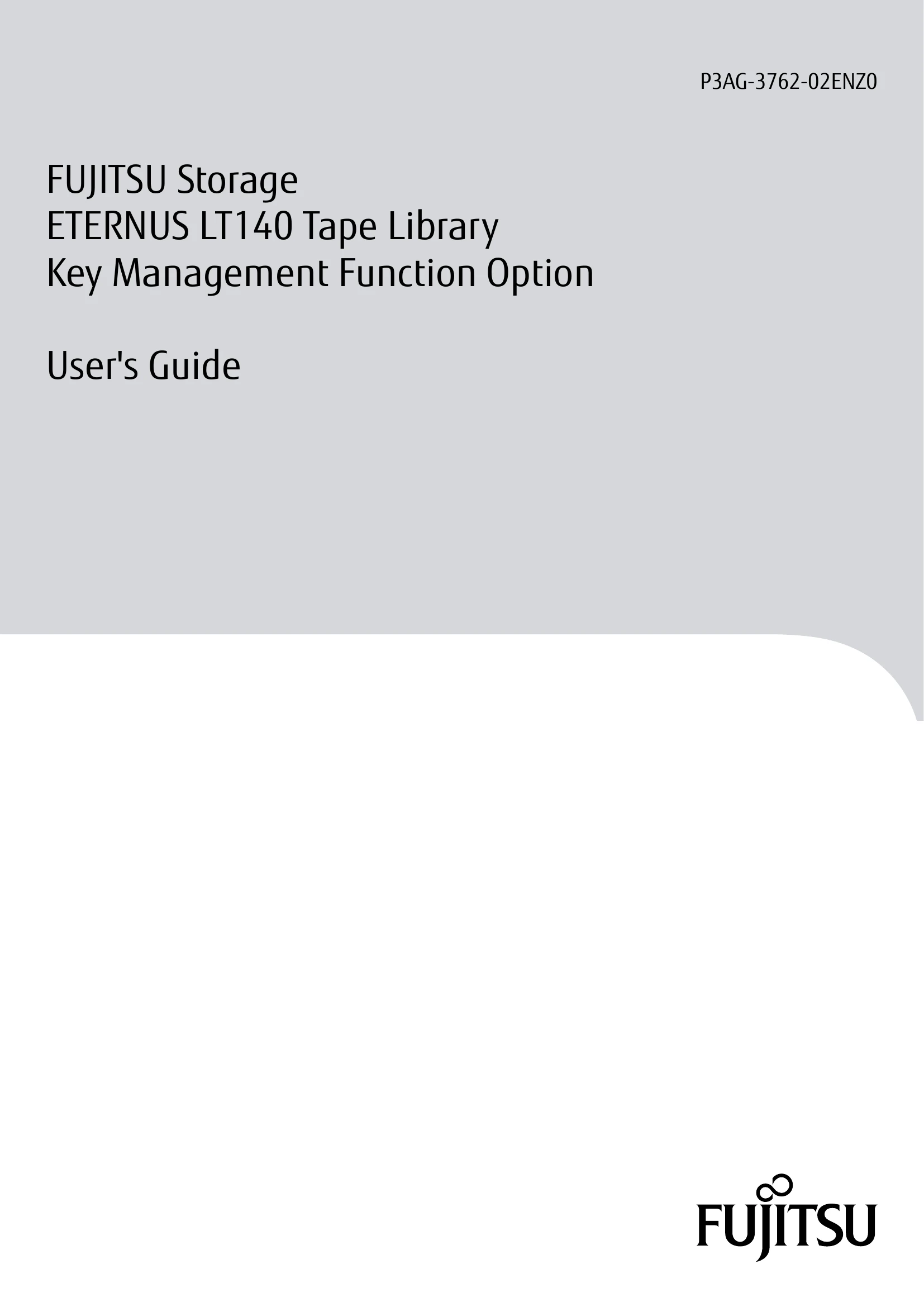

Manual for ETERNUS LT140

Manual for ETERNUS LT140

Brand: FUJITSU

Category: Computers

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:28 p.m.

Manual Publish Date: 2019-12-01

Basic Setup Procedure:
  1. Register the license key.
  2. Log in with the security administrator account.
  3. Enable the key management function.
  4. Set the master key.
  5. Export and import the encryption key.
  6. Export the master key.
Operational Examples:
  • Data Sharing between Centers: Setting the same master key for multiple tape libraries enables them to share data cartridges.
  • External Storage of Data Cartridges: Encrypted data cartridges can be stored at an external location for disaster recovery and can be read even if lost or stolen.
  • Encryption of Each Logical Library (or Partition): In a logical library/partition configuration, the master key can be assigned individually.
  • Interoperation among LT-series Models: Compatible master keys and encryption keys allow sharing of data and cartridges among LT-series tape libraries.

Troubleshooting and error codes

Problem Cause Corrective action
Encryption failed. Possible causes are:
1. Data was not recorded with an Ultrium5 or later tape drive.
2. An Ultrium3 or earlier data cartridge was used.
3. The appropriate settings for encryption have not been made. 		Confirm that:
1. The data was recorded with an Ultrium5 or later tape drive.
2. No Ultrium1, Ultrium2, or Ultrium3 data cartridge was used.
3. Appropriate settings for encryption have been made.
Refer
"2.3.4 Encryption Setting Information of the
Data Cartridge" (page 62)
An encryption key could not be exported. The encryption key has not been assigned to a data cartridge. An encryption key is generated and assigned when a data write process is performed to the
data cartridge.
Refer
"2.3.4 Encryption Setting Information of the
Data Cartridge" (page 62)
The menu for the [Configu-
ration > Encryption > LT
Encryption] screen could not be displayed. 		An account other than the security
account may have been used to log in. 		Log in with the security account.
Refer
"2.1.3.1 Basic Setup of the Key Management
Function" (page 31)
The following error mes-
sage appeared on the
[Configuration > Encryp-
tion > LT Encryption]
screen.
"Import Export functional-
ity is only available using
secure HTTPS connection." 		Instead of an https connection, an http
connection may have been used to log
in. 		Enable [SSL Secure Socket Layer] by selecting
the checkbox on the [Configuration > Web
Management] screen. After that, log out and
then log back in using https.
Refer
• "2.1.2.3 Enabling SSL" (page 26)
• "2.1.2.4 Connecting to the Remote Panel
after Enabling SSL" (page 29)
The following message
appeared on the [Configu-
ration of Encryption]
screen and the key man-
agement function cannot
be enabled or disabled.
"Note: Encryption configu-
ration changes cannot be
made while media is
loaded in any drive." 		The tape cartridge may have been
loaded in the tape drive. 		Check whether the tape cartridge is loaded in
the tape drive.
If the tape cartridge is loaded, move it from
the tape drive to the slot.
Refer
• "3.6.1 Moving Media" in "FUJITSU Storage
ETERNUS LT140 Tape Library User's Guide -
Panel Operation-`
• "3.7.2 Using Inventory Lists" in "FUJITSU
Storage ETERNUS LT140 Tape Library
User's Guide -Panel Operation-"
