Manual for AOU24RLXFZ
Uploaded: Nov. 21, 2025, 7:44 p.m.
Manual Publish Date: 2011.03.17
Warranty Information
Warranty information is not explicitly detailed in the provided pages.

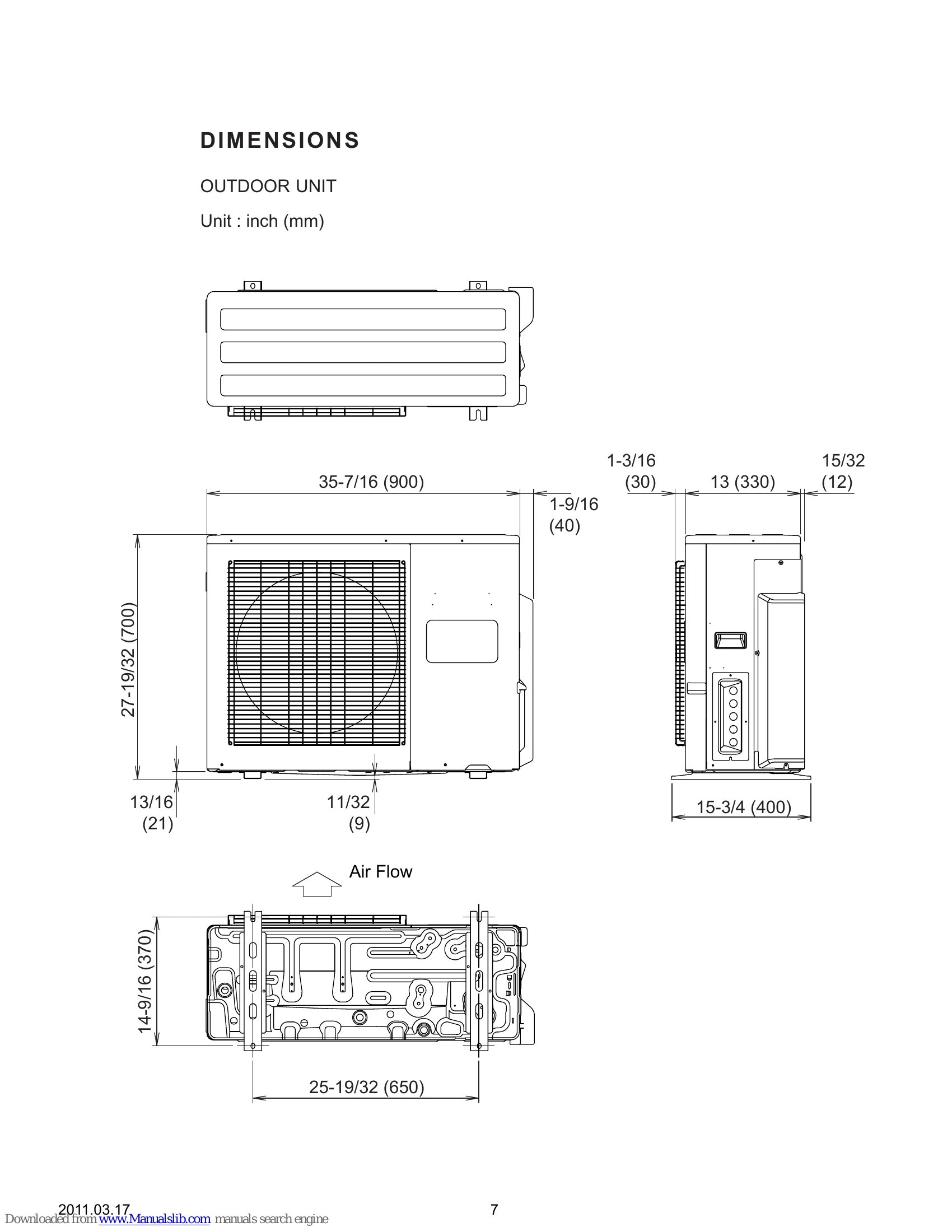

Refer to page 1 for the Table of Contents. Detailed specifications for the outdoor unit (AOU24RLXFZ) and various indoor units (ASU7RLF, ASU9RLF, ASU12RLF, ASU18RLF, AUU9RLF, AUU12RLF, AUU18RLF, ARU9RLF, ARU12RLF, ARU18RLF) are provided on pages 2-7. This manual includes electrical specifications, fan motor details, noise levels, and measurements for each model. Diagrams for the refrigerant system and circuit diagrams for outdoor and indoor units are presented on pages 14-30. Parts lists and exploded views for indoor units (compact cassette, wall mounted, slim duct) are found on pages 23-30. Accessories are detailed on pages 31-34.
Troubleshooting and error codes
| Error Code | Description |
|---|---|
| E0 | Outdoor unit PCB error. |
| E1 | Indoor unit PCB error. |
| E2 | Indoor unit error. |
| E3 | Outdoor unit error. |
| E4 | Compressor overcurrent. |
| E5 | Compressor lock. |
| E6 | Outdoor fan motor error. |
| E7 | Indoor fan motor error. |
| E8 | Communication error between indoor and outdoor units. |
| E9 | Overload or phase loss. |
