Brand: FUJI
Category: Camera
Document Type:
Language: EN

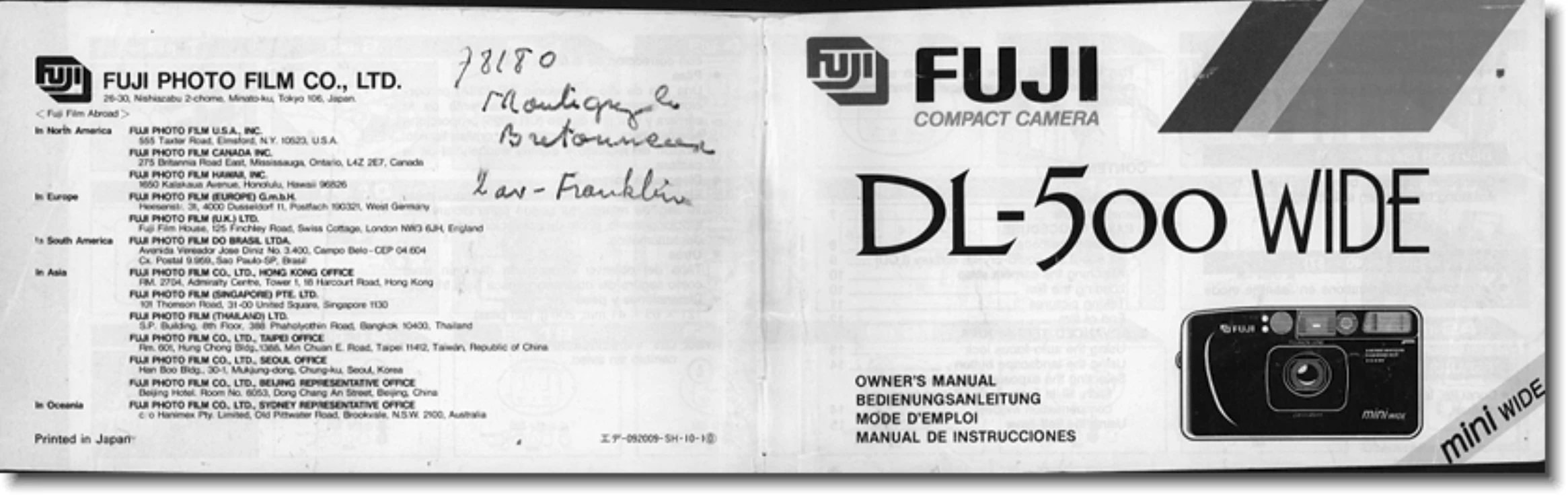

Manual for DL-500 WIDE
Uploaded: Aug. 9, 2025, 11:48 p.m.
Warranty Information
N/A
1. Load Battery: Open compartment, insert battery correctly, and close cover. 2. Load Film: Open camera back, drop film in chamber, adjust if needed, and close back. 3. Taking Pictures: Aim at subject, focus using auto-focus bracket, press shutter halfway to lock focus, then press fully to take photo. 4. End of Film: Film automatically advances and rewinds. Unload exposed film after last frame is exposed and camera stops.
Troubleshooting and error codes
| Faults | Possible Causes | Remedies | Page |
|---|---|---|---|
| 1. The shutter won't trip. | The battery is nearly spent (the Battery Low Sign() is showing in the LCD and all the marks and signs in it are blinking). | Replace the battery with a new one. | 8 |
| The Lens Cover is not open. | Open the Lens Cover. | 8 | |
| 2. The Exposure Counter blinks. (The film winds directly back into its cartridge the moment it is loaded) | A partly used roll of film was unloaded without winding it back into its cartridge. | Close the Camera Back and press in the Mid-roll Rewind Button (the camera motor will run for five seconds). Repeat until the Exposure Counter shows a blinking "E" sign then open the Camera Back and close it again. | 13 |
