Manual for FRSS2323AS

Manual for FRSS2323AS

Brand: FRIGIDAIRE

Category: Refrigerator

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:35 p.m.

Manual Publish Date: 2023-01-01

Warranty Information

Your appliance is covered by a one year limited warranty for parts and labor.

Refrigerator Operation Summary

This manual covers the operation and care of your Frigidaire refrigerator. It includes sections on:

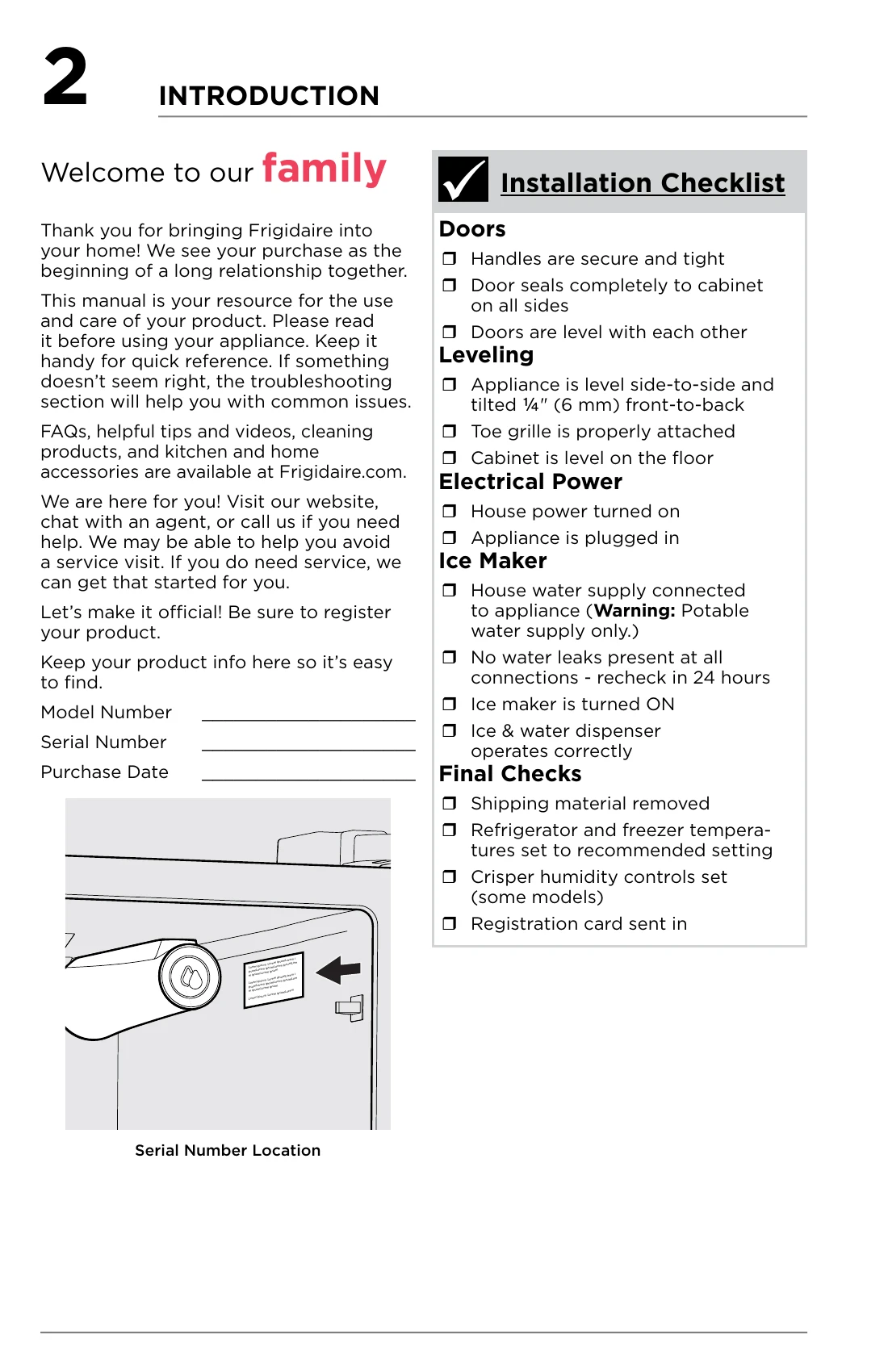

  • Introduction: Welcome and product registration.
  • Installation Checklist: Ensuring proper setup of doors, leveling, and electrical connections.
  • Safety Information: Crucial warnings and guidelines for safe use.
  • Features: Identification of various components like shelves, drawers, ice maker, and water dispenser.
  • Installation: Proper location, clearances, and leveling procedures.
  • Door Removal & Installation: Step-by-step instructions for door handling.
  • Water Supply Connection: Guidance on connecting the water line for ice makers and dispensers.
  • Controls and Settings: Understanding the user interface for ice, water, and temperature settings, including filter status.
  • Alarms: Explanations of power outage, door open, and high temperature alerts.
  • Normal Operating Sounds: Familiarizing yourself with typical sounds the refrigerator makes.
  • Filter Replacement: Instructions for replacing water and air filters.
  • Care and Cleaning: Recommendations for maintaining the appliance's appearance and hygiene.
  • Troubleshooting: Solutions for common concerns related to the ice maker, dispenser, temperature, and doors.
  • Limited Warranty: Details on the warranty coverage and exclusions.

Always refer to this manual for proper usage and maintenance to ensure optimal performance and longevity of your appliance.

Troubleshooting and error codes

CONCERN CAUSE SOLUTION
AUTOMATIC ICE MAKER
Ice maker is not making any ice.
  • Ice maker is not on.
  • Saddle valve on cold water pipe is clogged or restricted by foreign material.
  • Ensure the ice maker is on (green light).
  • The ice and water filter cartridge may be clogged. Replace filter cartridge.
  • Turn off household water line valve. Remove valve. Ensure that valve is not a self-piercing saddle valve. Clean valve. Replace valve if necessary.
Ice maker is not making enough ice.
  • Check to see if water dispenser is dispensing slower than normal.
  • Freezer control is set too warm.
  • If it is, replace the ice and water filter cartridge.
  • Set freezer control to colder setting to improve performance of the ice maker. Allow 24 hours for temperature to stabilize.
Ice maker will not stop making ice.
  • Ice maker arm is being held down by some item in the freezer.
  • Move item and release arm. Remove any ice cubes that are frozen together over the arm.
Ice cubes are freezing together.
  • Ice cubes are not being used frequently enough.
  • Ice cubes are hollow (partially frozen cubes with water inside).
  • Freezer control is set too warm.
  • Remove ice container and discard ice from container. Ice maker will produce fresh supply.
  • The ice and water filter cartridge may be clogged. Replace filter cartridge.
  • Set freezer control to colder setting. Allow 24 hours for temperature to stabilize.
DISPENSER (Ice & Water)
Dispenser will not dispense ice.
  • There is no ice in the bin to be dispensed.
  • The refrigerator doors are not completely closed.
  • Dispenser paddle has been pressed too long and the dispenser motor has overheated.
  • Not dispensing ice regularly may melt and refreeze ice causing ice clumping. Dispensing clumps could damage the ice bucket.
  • See the Ice maker is not making any ice section above.
  • Be sure to close the refrigerator completely.
  • The motor overload protector will reset in about 3 minutes and then ice can be dispensed.
  • Empty the ice bucket monthly or regularly dispense ice. For longer periods of time (vacation or vacant homes) see Ice Maker/Dispenser Tips in the AUTOMATIC ICE AND WATER DISPENSER section to turn off the ice maker.
Ice dispenser is jammed.
  • Ice has melted and frozen around auger due to infrequent use, temperature fluctuations, and/or power outages.
  • Ice cubes are jammed between ice maker and back of ice container.
  • Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate. See Cleaning the Ice Storage Bin in the AUTOMATIC ICE AND WATER DISPENSER section.
  • Remove ice cubes that are jamming the dispenser.
Dispenser will not dispense water.
  • Water filter not seated properly.
  • Water filter is clogged.
  • Household water line valve is not open.
  • Remove and reinstall the water filter. Be sure to push the filter firmly so that you hear it lock solidly into position. Replace filter cartridge. Be sure to remove protective caps and push the filter firmly so that you hear it lock solidly into position.
  • Open the household water line valve.
Water has an odd taste and/or odor.
  • Water has not been dispensed for an extended period of time.
  • Unit not properly connected to cold water line.
  • Draw and discard 10-12 glasses of water to freshen the supply.
  • Connect unit to cold water line that supplies water to the kitchen faucet.
Water pressure is extremely low.
  • Cut-off and cut-on pressures are too low (well systems only).
  • Reverse osmosis system is in regenerative phase.
  • Have someone turn up the cut-off and cut-on pressure on the water pump system (well systems only).
  • It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.
Water not cold enough.
  • As warmer tap water goes through the filter and enters the water tank the chilled water is pushed through to the dispenser. Once the chilled water is used up it will take several hours to bring the freshly replaced water to a cooler temperature.
  • Some models are designed without a water tank, these water dispensing systems are not designed to chill water.
  • See the WATER SUPPLY CONNECTION section.
  • Add ice to cup or container before dispensing water.
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will not close.
  • Door was closed too hard, causing other door to open slightly.
  • Refrigerator is not level. It rocks on the floor when moved slightly.
  • Refrigerator is touching a wall or cabinet.
  • Close both doors gently.
  • Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.
  • Ensure floor is level and solid, and can adequately support the refrigerator. Contact a carpenter to correct a sagging or sloping floor.
Drawers are difficult to move.
  • Food is touching shelf on top of drawer.
  • Track that drawers slide on is dirty.
  • Remove top layer of items in drawer.
  • Ensure drawer is properly installed on track. Clean drawer, rollers, and track. See CARE AND CLEANING.
RUNNING OF REFRIGERATOR
Compressor does not run.
  • Freezer control is set to OF or 0.
  • Refrigerator is in defrost cycle.
  • Plug at electrical outlet is disconnected.
  • House fuse blown or tripped circuit breaker.
  • Power outage.
  • Set freezer control.
  • This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.
  • Ensure plug is tightly pushed into outlet.
  • Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker. Check house lights. Call local electric company.
Refrigerator runs too much or too long.
  • Room or outside weather is hot.
  • Doors are opened too frequently or too long.
  • Refrigerator/freezer door may be slightly open.
  • Freezer control is set too cold.
  • Refrigerator/freezer gasket is dirty, worn, cracked, or poorly fitted.
  • Condenser is dirty.
  • It's normal for the refrigerator to work longer under these conditions.
  • Warm air entering the refrigerator causes it to run more. Open doors less often.
  • Ensure refrigerator is level. Keep food and contains from blocking door. See CONCERN column OPENING/CLOSING OF DOORS/DRAWERS.
  • Set Refrigerator control to warmer setting until refrigerator temperature is satisfactory. Allow 24 hours for temperature to stabilize.
  • Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in order to maintain desired temperatures.
  • Clean condenser. See CARE AND CLEANING.
Appliance seems to run continuously.
  • Today's refrigerators are designed with a variable speed compressor to be more energy efficient than previous models. This means your compressor reacts quickly to temperature fluctuations and circulates cold air based off your use and room temperature.
  • This is normal for a variable speed compressor refrigerator; however, if you have concerns, call 1-800-374-4432 (United States) Frigidaire.com or 1-800-265-8352 (Canada) Frigidaire.ca.
DIGITAL TEMPERATURE DISPLAY
Digital temperature displays are flashing.
  • Electronic control system has detected a performance problem.
  • Call your Frigidaire service representative, who can interpret any messages or number codes flashing on the digital displays.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture collects on inside of refrigerator walls.
  • Weather is hot and humid.
  • Door is slightly open.
  • The rate of frost buildup and internal sweating increases.
  • See CONCERN column OPENING/CLOSING OF DOORS/DRAWERS.
Water collects on bottom side of drawer cover.
  • Vegetables contain and give off moisture.
  • It is not unusual to have moisture on the bottom side of the cover. Move humidity control (some models) to lower setting.
Water collects in bottom of drawer.
  • Washed vegetables and fruit drain while in the drawer.
  • Dry items before putting them in the drawer. Water collecting in bottom of drawer is normal.
Stored products on top shelf freeze
  • Fresh food temperature setting too cold.
  • Certain products stored too close to damper/air filter housing.
  • Adjust fresh food temperature settings.
  • Reconfigure top shelf storage to allow proper diffusion of air. See Damper/Air Filter Housing in the FILTER REPLACEMENT section.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture collects on outside of refrigerator or between doors.
  • Weather is humid.
  • Door is slightly open, causing cold air from inside refrigerator to meet warm air from outside.
  • This is normal in humid weather. When humidity is lower, the moisture should disappear.
  • See CONCERN column OPENING/CLOSING OF DOORS/DRAWERS.
