Brand: FRIGIDAIRE
Category: Microwave Oven
Document Type: Manual
Language: EN

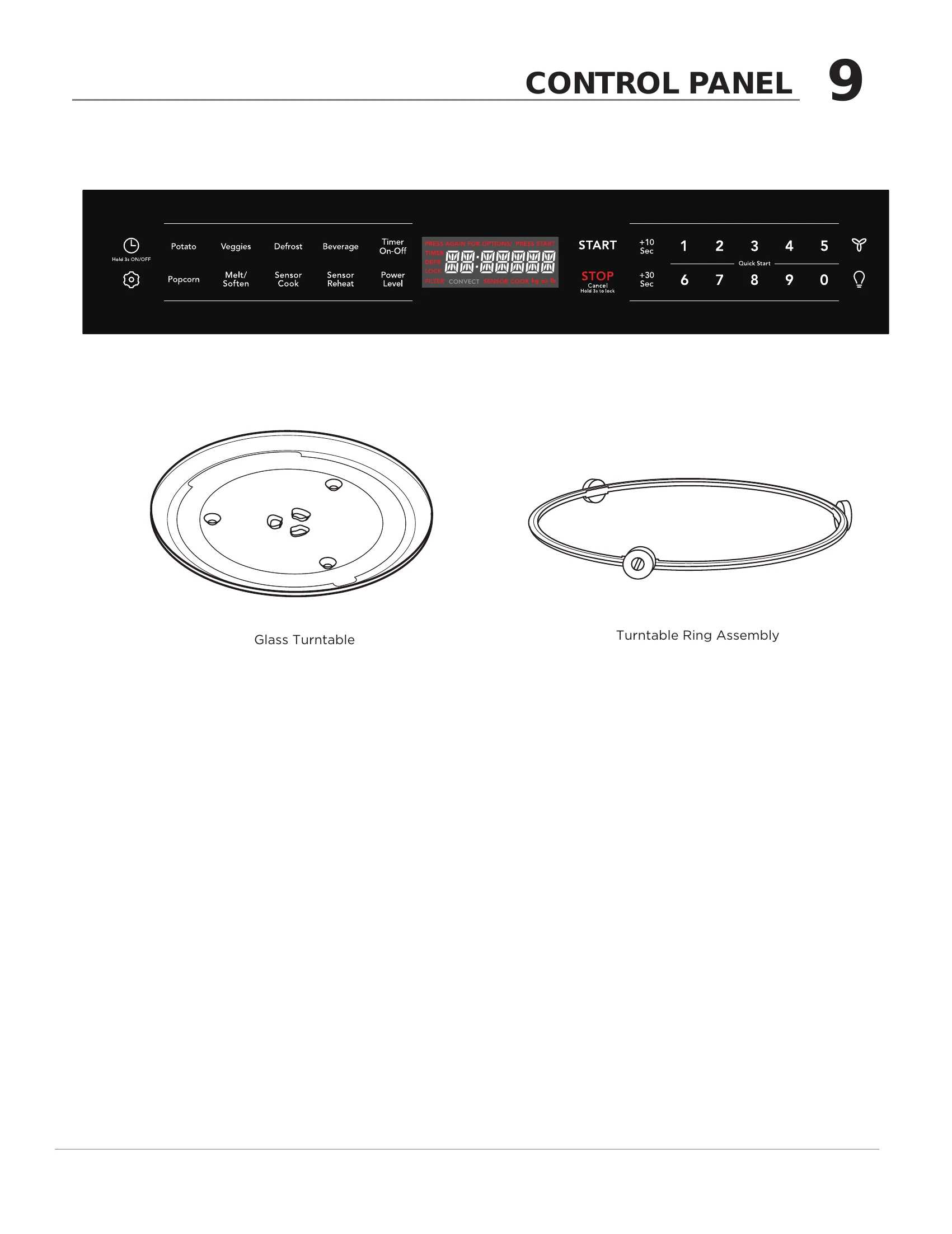

Manual for A06823455(January 2023)
Uploaded: Nov. 21, 2025, 7:01 p.m.
Manual Publish Date: 2023-01-01
Warranty Information
One year limited warranty covering defects in materials or workmanship.
Setting the Clock
Touch the clock pad, enter time using number pads, then touch START.
Setting the Clock ON/OFF
To turn off: Touch and hold the clock pad for 3 seconds. 'OFF' will display. To turn on: Hold clock button for 3s.
VENT FAN & SURFACE LIGHT
Touch corresponding pads multiple times to adjust settings from HIGH to OFF.
SENSOR COOK
Touch 'Sensor Cook' pad multiple times to select food type (Bacon, Frozen Dinner, Rice, Frozen Breakfast), then press START.
POPCORN
Touch 'Popcorn' pad, then press START to pop 3.3 oz bag.
VEGGIES, POTATO, BEVERAGE
Touch corresponding pads, select options, then press START.
MELT/SOFTEN
Touch 'Melt/Soften' pad, select amount, then press START.
AUTO DEFROST
Touch 'Defrost' pad, select type (Meat, Poultry, Fish), enter weight, then press START.
MICROWAVE COOKING
Set time, select power level, then press START.
USER SETTING VOLUME
Touch volume pad to scroll through settings (LOW, MED, HIGH, OFF), press START.
TURNTABLE ON/OFF
Touch turntable pad, then press START to turn ON or OFF.
SETTING WEIGHT LB/KG
Touch weight pad, select unit (lb or kg), then press START.
SETTING LANGUAGE
Touch language pad, select language (English/French), then press START.
DEMO SETTING
Touch Demo Mode pad, then press START to turn ON or OFF.
SETTING FILTER
Touch filter pad, scroll through options (ON, YES, OFF, RESET), then press START.
ONE TOUCH START
Touch number 1-9 for minutes of cooking, starts automatically.
SETTING THE TIMER
Use Timer On-Off pad to set kitchen timer up to 99:99.
MULTI-STAGE COOKING
Program two power level stages by setting time and power level for each stage, then press START.
Troubleshooting and error codes
| SERVICE CALL CHECK | |
| Please check the following before calling for service: Place one cup of water in a glass measuring cup in the microwave oven and close the door securely. Operate the microwave oven for one minute at HIGH 100%. | |
| A Does the microwave oven light come on? | YES ___ NO ___ |
| B Does the cooling fan work? (Put your hand on the louver above the Control Panel.) | YES ___ NO ___ |
| C Does the turntable rotate? (It is normal for the turntable to turn in either direction.) | YES ___ NO ___ |
| D Is the water in the microwave oven warm? | YES ___ NO ___ |
| If "NO" is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit breaker. If they are functioning properly, CONTACT YOUR NEAREST ELECTROLUX AUTHORIZED SERVICER. A microwave oven should never be serviced by a "do-it-yourself" repair person. | |
