Brand: FRIGIDAIRE
Category: Dryer
Document Type: Manual
Language: EN

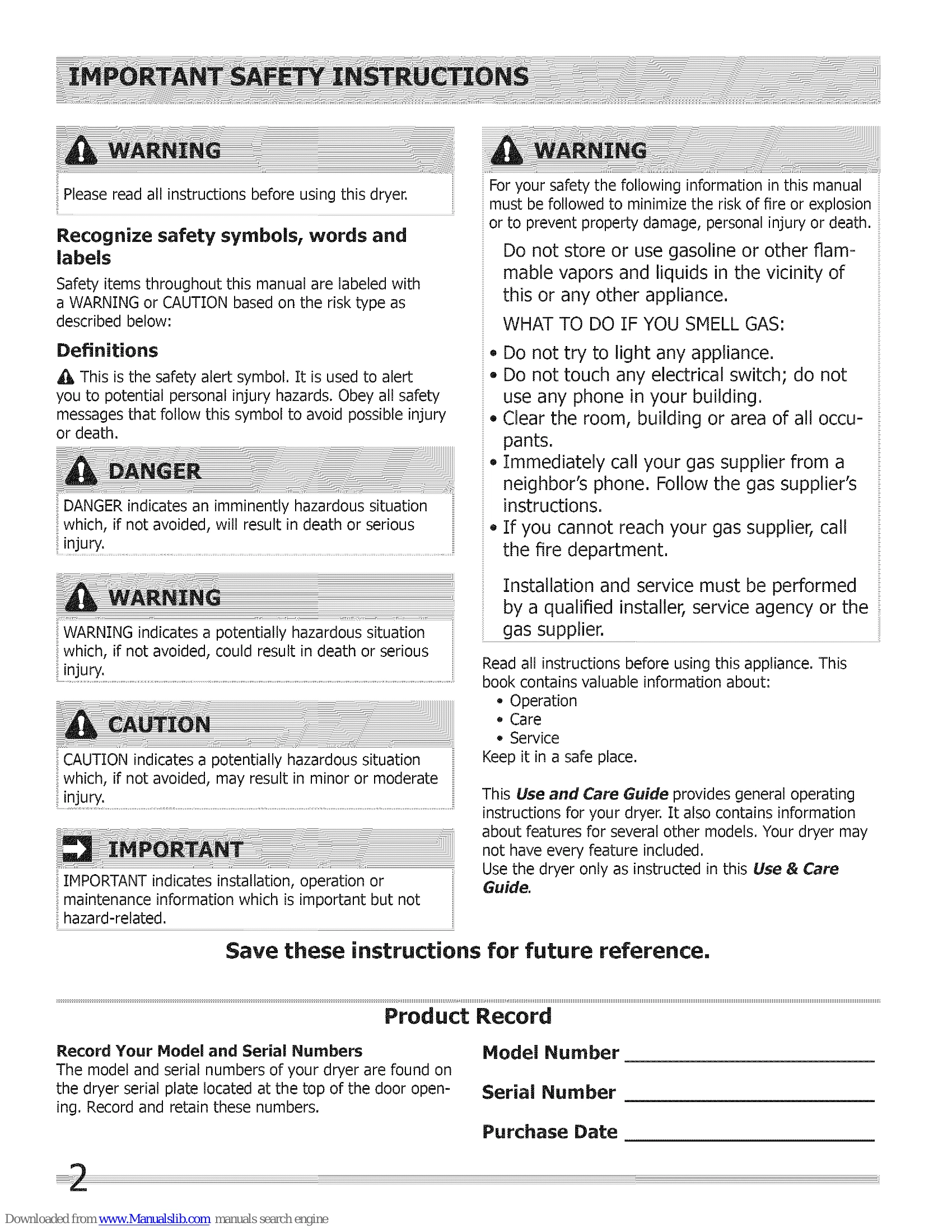

Manual for 137337600A (1004)
Uploaded: Sept. 12, 2025, 4:18 a.m.
Warranty Information
This appliance is covered by a one-year limited warranty for parts and labor when installed and used according to instructions.
Normal Operating Sounds:
Your dryer may make normal operating sounds such as suspension roller noise, air flow system sounds, clicking of the gas valve (gas models), and burner sounds (gas models).
Operating Your Dryer:
- Prepare load for drying: Sort similar fabrics, check for stains, place delicates in a mesh bag, and ensure items are heatproof.
- Check lint filter: Ensure the lint filter is clean and in place.
- Load the dryer: Load items loosely (1/3 to 1/2 full), add fabric softener sheets if desired, and do not overload. For large items, dry only two or three at a time.
- Select cycle and settings: Choose the appropriate cycle using the cycle selector knob. Auto Dry cycles use moisture sensors to determine drying time. Timed Dry cycles allow manual time selection.
- Start the cycle: Press Start. Items can be added or removed by opening the door; press Start to resume.
- End of cycle: Remove items immediately after the cycle ends and hang or fold.
Other Features:
- Drying Rack: Use for items that should not be tumble dried.
- Control Lock: Press Options and Select to lock/unlock controls.
- Status Display/Status Lights: Shows estimated cycle time and cycle progress.
- Drum Light: Illuminates the drum when the door is opened.
- Reversible Door: The door can be hinged on either the right or left side.
Troubleshooting and error codes
| OCCURRENCE | POSSIBLE CAUSE | SOLUTION |
|---|---|---|
| Dryer does not start. | Electrical power cord is not securely plugged in or plug may be loose. | Make sure the plug fits tightly in wall outlet. |
| House fuse blown or circuit breaker tripped. | Reset circuit breaker or replace fuse. | |
| Dryer runs but won't heat. | Thermal limiter tripped. | Call authorized service person for replacement. |
| There are 2 house fuses in the dryer circuit. If 1 of the 2 fuses is blown, the drum may turn but the heater will not operate. (electric models) | Replace fuse. | |
| Gas supply valve is not open (gas models). | Check to make sure supply valve is open. See INSTALLATION INSTRUCTIONS for procedure. | |
| Dryer does not have enough air supply to support the burner flame (gas models). | See INSTALLATION INSTRUCTIONS. | |
| LP gas supply tank is empty or there has been a utility interruption of natural gas (gas models). | Refill or replace tank. Dryer should heat when utility service is restored. | |
| Drying cycle takes too long, outside of the dryer feels too hot or smells hot. | Lint filter is clogged with lint. | Make sure all lint has been removed from the dryer lint filter before starting each cycle. |
| Exhaust duct requirements have not been met. | Exhaust duct must be at least 4 inches in diameter and made of rigid or semi-rigid metal. When in place, the duct must have no more than two 90° bends and must not exceed length listed in INSTALLATION INSTRUCTIONS. | |
| Electric dryer is connected to a 208 volt circuit. | Drying time will be 20% longer than drying on a 240 volt circuit. | |
| Excessive wrinkling. | Drying procedures have not been followed. | See "Operating Instructions." |
| Outside exhaust hood or exhaust duct may be clogged or restricted. | Clean out any obstruction. | |
| High humidity. | Use a dehumidifier near the dryer. | |
| Dryer is overloaded. | Do not overload. See "Operating Instructions." | |
| Items left in dryer too long. | Remove items as soon as cycle ends. | |
| Insufficient sorting of items. | See "Operating Instructions." | |
| Drying temperature too high. | Follow fabric care label instructions. | |
| Scratching or chipping of the drum finish. | Foreign objects such as coins, pins, clips or buttons are inside the dryer.* | Always remove foreign objects from pockets before laundering. Remove objects from drum and restart dryer. |
| Permanently attached items such as belt buckles, zippers and fasteners may be hitting the inside of the drum.* | It may be necessary to sew a scrap of material securely around ornaments before drying to prevent scratching and damage to the dryer. |
