Manual for LFID2426TF1A

Manual for LFID2426TF1A

Brand: FRIGIDAIRE

Category: Dishwasher

Document Type: Manual

Language: EN

Uploaded: Sept. 12, 2025, 4:17 a.m.

Manual Publish Date: 2017-02-01

Warranty Information

One year limited warranty covering parts and labor for defects in materials or workmanship.

Getting Started

  1. Load dishwasher.
  2. Add detergent.
  3. Add rinse aid (if needed).
  4. Select desired cycle.
  5. Select desired option.
  6. Run hot water faucet until 120ºF (49°C).
  7. Press START/CANCEL.
  8. Close door.

Wash Cycle Selections: Cycles include Heavy Wash, Normal Wash, Top Rack, and Rinse Only. Times vary with options.

Option Selections: Hi-Temp Wash option increases water temperature for better cleaning and drying. Sanitize option raises water temperature to 155°F (68°C) for 9 minutes. Delay Start allows for delayed operation (2-6 hours). Air Dry deactivates the heater for drying, potentially reducing drying effectiveness.

Child Lock Controls: Press and hold AIR DRY for 3 seconds while the door is open to lock/unlock controls.

To Cancel a Cycle: Press and hold START/CANCEL for 3 seconds.

Status Indicator Lights: WASHING, DRYING, SANITIZED, CLEAN lights indicate cycle status.

Dish Preparation: Scrape food, loosen burned-on foods, and empty liquids from cups. Pre-rinse acidic foods if not running the dishwasher immediately.

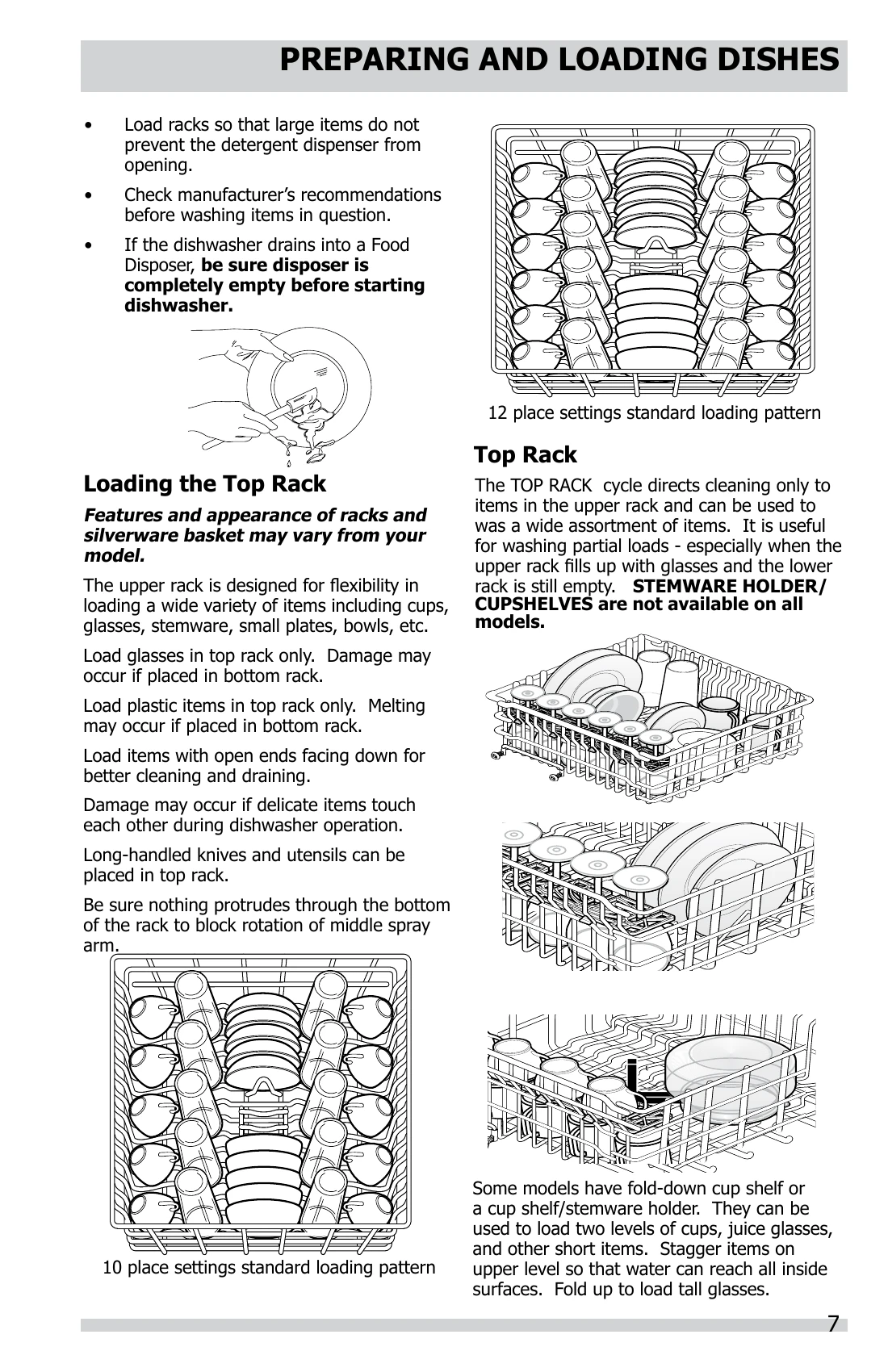

Loading: Load racks to avoid blocking the dispenser. Place items with open ends down. Load sharp items pointing down in the silverware basket.

Troubleshooting and error codes

Problem Area Possible Causes & Solutions
Food Soils Left on Dishes
  • Choose another cycle.
  • Check rack loading.
  • Water pressure may be too low.
  • Incoming water temperature may be too low.
  • Water hardness may require a water softener.
  • Use fresh detergent.
  • Items blocking spray arms.
  • Overloading dishwasher.
  • Glass trap not maintained.
Dishes Not Dry
  • Rinse aid dispenser may be empty.
  • Increase rinse aid setting.
  • Incoming water temperature may be too low.
  • Improper loading (nesting items).
  • Cups may not be tilted for drainage.
  • Plastic items may need towel drying.
Glassware/Flatware Spotted or Cloudy
  • Water hardness may require a water softener.
  • Water temperature may be low.
  • Overloading or improper loading.
  • Use fresh detergent.
  • Rinse aid dispenser may be empty.
  • Incorrect amount of detergent.
  • Home water pressure may be too low.
Dishware Chipped
  • Careful loading, avoid overload.
  • Place delicate items in top rack.
  • Place glasses securely.
  • Load items securely so they don't jar loose.
  • Tall items may not clear the tub top.
  • Fine antique china/crystal may need hand-washing.
Vapor at Vent
  • Spilled rinse aid can cause foam/overflow.
Dishware Stained or Discolored
  • Tea/coffee stains: hand wash with bleach solution.
  • Iron deposits: a special filter may be needed.
  • Aluminum utensils: load properly.
  • Acidic foods: use Rinse Only cycle or hand wash.
  • Mixing stainless steel and silver may cause pitting.
Water in Bottom of Tub
  • Dishwasher may not be draining properly.
Cycle Takes a Long Time
  • Cycle may be lengthened for temperature.
  • Delay Start option selected.
  • Choose lower temperature options.
  • Soil-sensing cycles adjust automatically.
Etching
  • Too much detergent in soft water.
  • Adjust detergent based on water hardness.
  • Lower water temperature.
Detergent Left in Cups
  • Detergent may be old.
  • Load doesn't block spray from entering cup.
  • Cycle may not be completed.
  • Items may prevent dispenser from opening.
Dishwasher Leaks
  • Door gasket not seated properly.
  • Spilled rinse aid.
  • Dishwasher not level.
  • Oversudsing.
Normal Sounds You Will Hear
  • Water fill, spray, draining, motor sounds.
  • Sound changes between spray arms.
  • Pauses between spray arm actions.
Dishwasher Won't Run
  • Circuit breaker tripped or fuse blown.
  • Water supply not on.
  • Cycle not set correctly.
  • Delay Start option active.
  • Door not closed/latched.
  • START/CANCEL pad not pressed.
Dishwasher Won't Fill
  • Water supply not on.
  • Overfill protector not moving freely.
Dishwasher Does Not Drain Properly
  • Food waste disposer not empty.
  • Knockout plug not removed from disposer inlet.
  • Drain hose kinked.
  • Cycle not complete (pause).
  • Glass trap clogged or not installed properly.
Dishwasher has an Odor
  • Soiled dishes left too long.
  • "New" smell when first installed (normal).
  • Check if unit is draining properly.
Stains on Tub Interior
  • Tomato-based soil can cause pink/orange stains.
  • Pre-rinsing or Rinse Only cycle helps.
  • No heat dry option lessens staining.
Opening the door during cycle
  • Press START/CANCEL and shut door immediately.
  • Must be within 10 minutes to continue cycle.
Removing Spots and Film
  1. Load clean dishes (no metal).
  2. Do not add detergent.
  3. Select NORMAL WASH, press START/CANCEL.
  4. Allow to run until second water fill (approx. 8 mins).
  5. Pour 2 cups white vinegar into bottom.
  6. Close door and allow cycle to finish.
