Brand: FRIGIDAIRE
Category: Dishwasher
Document Type: Manual
Language: EN

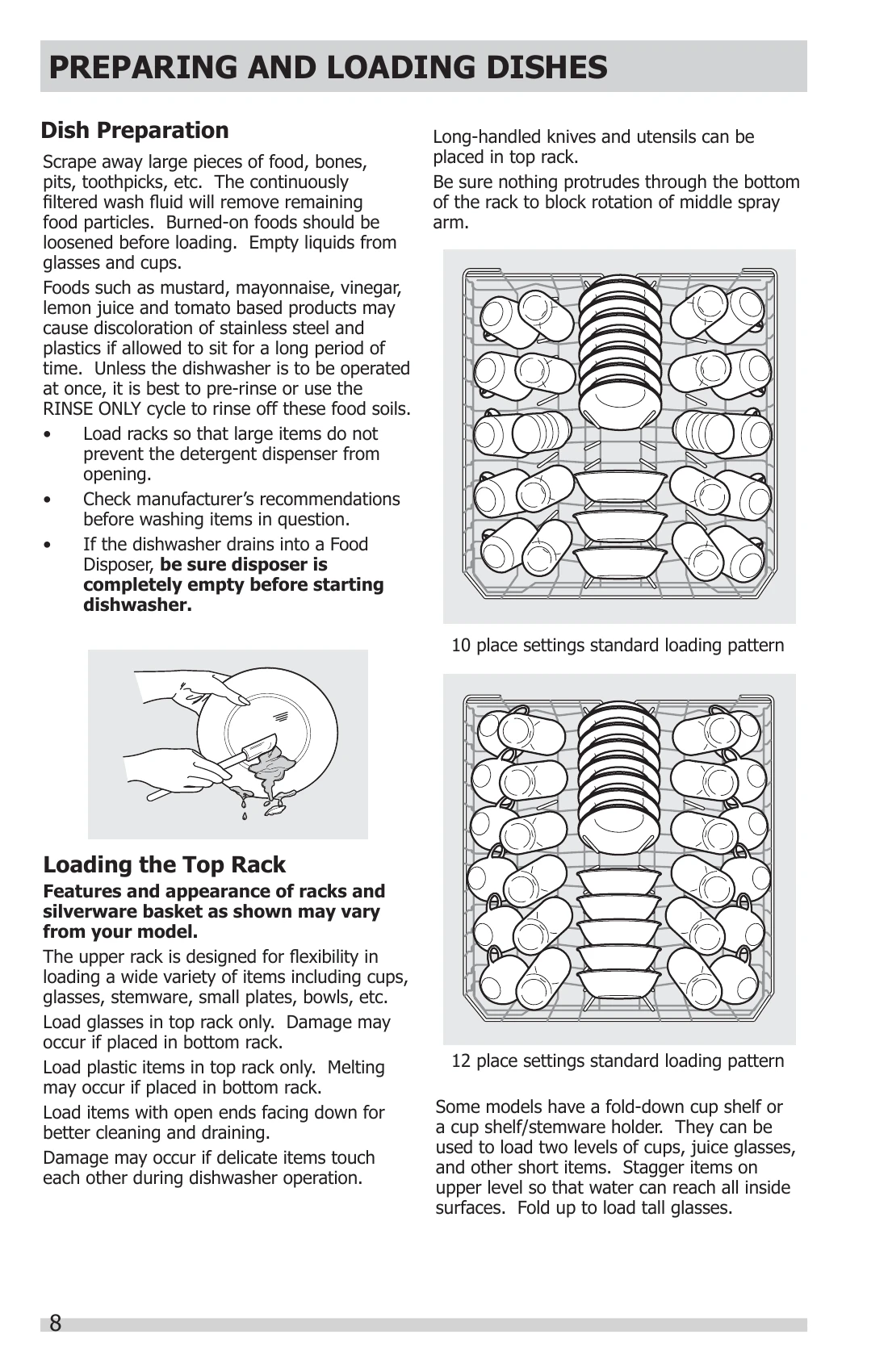

Manual for GALLERY SERIES
Uploaded: Sept. 12, 2025, 4:17 a.m.
Manual Publish Date: 2019-06-01
Warranty Information
One-year limited warranty covering defective parts and workmanship when installed and used correctly.
Getting Started: Load dishes, add detergent and rinse aid if needed. Select desired CYCLE and OPTION. Run hot water faucet until it reaches 120°F (49°C), then turn off. Press START/CANCEL and close door firmly within 4 seconds. The dishwasher is quieter than most and features a Direct Feed Wash System. Energy-efficient units may have longer cycles. The dishwasher remembers the last cycle used. Console lights stay on during operation. Options like Hi-Temp Wash, MaxBoost Dry, and Sanitize offer enhanced cleaning and drying. Delay Start allows you to schedule a cycle up to 24 hours in advance. Child Lock prevents accidental changes. Status indicators and window provide cycle information.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Food Soils Left on Dishes | Longer cycle needed; improper loading; low water pressure; low water temperature; incorrect detergent; spray arms blocked. | Choose longer cycle; check loading; ensure 20-120 psi water pressure; ensure 120°F (49°C) water temp; use fresh detergent; ensure spray arms rotate. |
| Dishes Not Dry | Heat Dry or MaxBoost Dry not selected; rinse aid empty or setting too low; low water temperature. | Select drying option; refill rinse aid dispenser; increase rinse aid setting; ensure 120°F (49°C) water temp. |
| Glassware/Flatware Spotted or Cloudy | Hard water; low water temperature; improper loading; old detergent; rinse aid empty; incorrect detergent amount. | Install water softener if needed; ensure 120°F (49°C) water temp; avoid overloading; use fresh detergent; refill rinse aid; use correct detergent amount. |
| Dishware Chipped | Improper loading; overloading; delicate items not placed carefully. | Load with care, do not overload; place delicate items on top rack; secure glasses; move racks slowly; hand-wash fine china. |
| Vapor at Vent | Spilled rinse aid. | Wipe up spills with a damp cloth. |
| Dishware Stained or Discolored | Certain foods (tomato-based); iron deposits; aluminum utensils; mixing stainless steel and silver. | Pre-rinse or use Rinse Only cycle; install water filter for iron; load properly; avoid mixing metals. |
| Water in Bottom of Tub | Dishwasher not draining properly. | Check drain hose, glass trap, and ensure cycle is complete. |
| Cycle Takes a Long Time | Cool water supply; large load; Delay Start selected; soil-sensing adjustments. | Ensure adequate water temp; check Delay Start; select lower temp options for faster cycles. |
| Etching | Too much detergent, especially in soft water. | Adjust detergent based on water hardness; lower water temperature. |
| Detergent Left in Cups | Old detergent; dish load blocking dispenser; cycle not complete; dispenser blocked. | Use fresh detergent; ensure dispenser is not blocked; check cycle completion. |
| Dishwasher Leaks | Door gasket issue; spilled rinse aid; unit not level; oversudsing. | Check gasket seal; clean up rinse aid spills; ensure unit is level; use correct detergent. |
| Dishwasher Won't Run | Tripped breaker/blown fuse; water supply off; cycle not set correctly; Delay Start active; door not closed. | Check breaker/fuse; turn on water supply; set cycle correctly; disable Delay Start; close door firmly. |
| Dishwasher Won't Fill | Water supply off; overfill protector stuck. | Turn on water supply; check overfill protector. |
| Dishwasher Does Not Drain Properly | Food waste disposer full; knockout plug not removed; drain hose kinked; cycle paused; clogged glass trap. | Empty disposer; remove plug; straighten hose; ensure cycle is complete; clean glass trap. |
| Dishwasher has an Odor | Soiled dishes left too long; 'new' smell. | Use Rinse Only cycle; 'new' smell is normal. |
| Stains on Tub Interior | Tomato-based soil. | Pre-rinse or use Rinse Only cycle; use no heat dry. |
| Opening the door during cycle | Door opened while running. | Press START/CANCEL and close door within 10 mins. |
| Removing Spots and Film | Hard water buildup. | Use vinegar rinse with Normal Wash cycle. |
