Brand: FRIGIDAIRE
Category: Air Conditioner
Document Type: Parts/Service
Language: EN
Parts/Service for LRA127CT1
Uploaded: Sept. 12, 2025, 4:14 a.m.
Manual Publish Date: 2028-06-12
Warranty Information
Warranty information is not explicitly detailed in this parts catalog.
This manual provides a parts catalog and wiring diagram for the Frigidaire LRA127CT1 Room Air Conditioner. It lists product numbers, series, color, volts, and BTU-Cooling for various models (LRA127CT113, LRA127CT114, LRA127CT115, LRA127CT116). It also details recommended spare parts with their corresponding part numbers and descriptions, categorized by position number. The manual includes a wiring diagram illustrating the electrical connections for the control board, sensors, fan motor, power supply, and compressor.
Troubleshooting and error codes

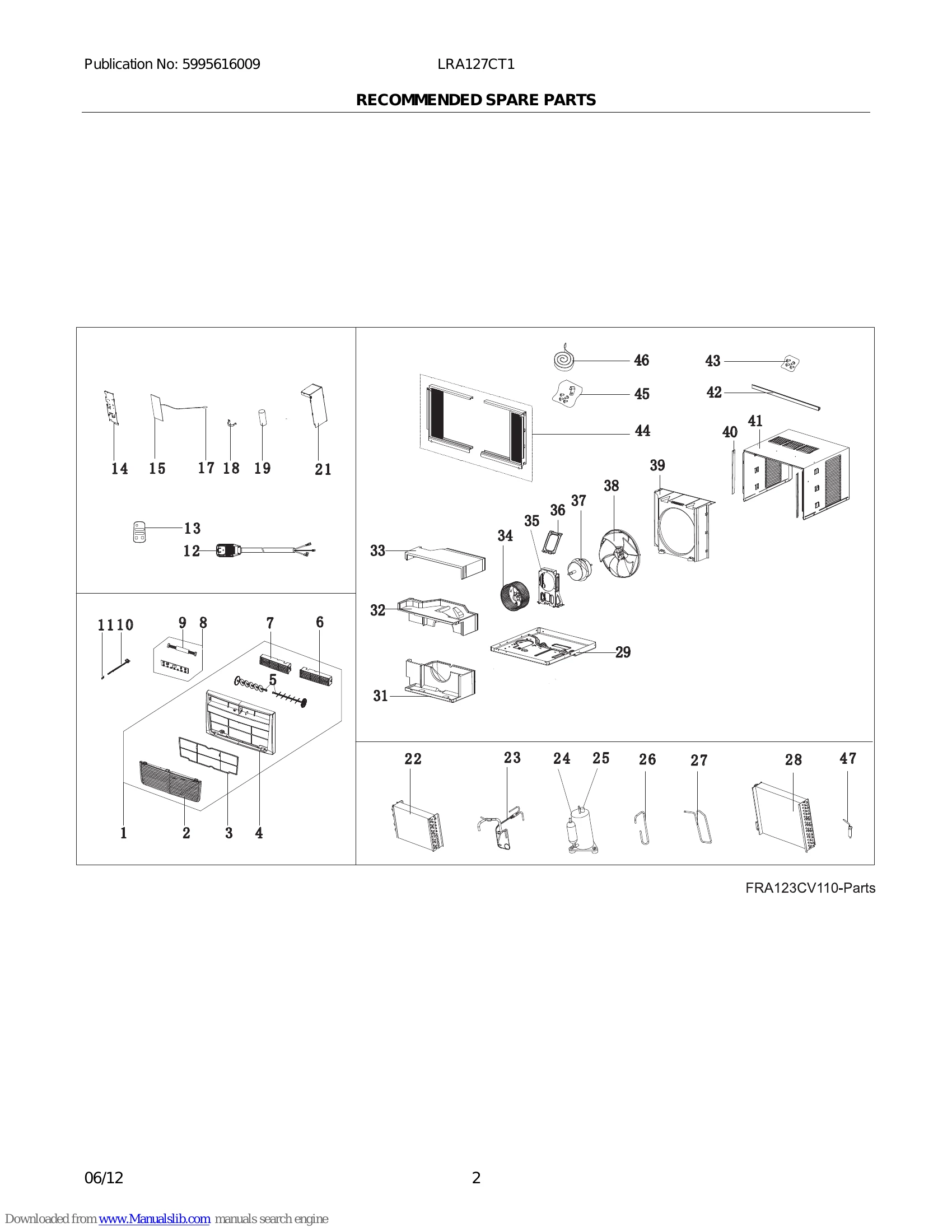

| POS. NO | PART NO. | DESCRIPTION |
|---|---|---|
| 1 # | 5304476859 | Front Assembly, complete panel |
| 2 | 5304476860 | Panel, front grille, tilt-out |
| 3 # | 5304476861 | Filter, air, plastic frame |
| 4 | 5304476862 | Frame, front assembly |
| 5 # | 5304476863 | Louver, vertical |
| 6 # | 5304476864 | Louver, horizontal, left |
| 7 # | 5304476865 | Louver, horizontal, right |
| 8 # | 5304476177 | PC Board, display/input |
| 9 # | 5304482356 | Wire, connecting |
| 10 # | 5304476178 | Door, vent control, with lever |
| 11 # | 5304476179 | Sleeve, vent door assy, guide |
| 12 # | 5304476180 | Power Cord, electric, LCDI |
| 13 # | 5304487535 | Remote Control, transmitter |
| 14 | 5304476182 | Cover, control box |
| 15 # | 5304487221 | PC Board, main, control/power |
| 17 # | 5304476053 | Sensor, ambient temp, thermistor |
| 18 | 5304471203 | Strap, capacitor clamp |
| 19 # | 5304476066 | Capacitor |
| 21 | 5304487222 | Control Box |
| 22 # | 5304485981 | Evaporator |
| 23 # | 5304487538 | Tube, capillary |
| 24 # | 5304476069 | Compressor, with overload |
| 25 # | 5304476296 | Overload Protector, compressor |
| 26 # | 5304485982 | Tube, suction |
| 27 # | 5304476232 | Tube, discharge |
| 28 # | 5304476233 | Condenser |
| 29 | 5304485966 | Base, unit chassis |
| 31 | 5304485967 | Scroll, blower housing, bottom |
| 32 | 5304485968 | Scroll, blower housing, middle |
| 33 | 5304485969 | Scroll, blower housing, top |
| 34 # | 5304485443 | Blower Wheel, centrifugal fan |
| 35 | 5304476194 | Support, motor mount, left |
| 36 | 5304476195 | Support, motor mount, right |
| 37 # | 5304485442 | Motor, fan |
| 37 # | 5304485973 | Motor, fan |
| 38 # | 5304476059 | Fan Blade, axial |
| 39 | 5304487223 | Shroud, condenser fan |
| 40 | 5304476197 | Retainer, shutter, cabinet sides |
| 41 | 5304476198 | Cabinet, wrapper/sleeve |
| 42 | 5304476843 | Rail, shutter track, top |
| 43 | 5304472191 | Screw Kit, top rail mount |
| 44 | 5304476200 | Window Filler Kit, slider panels, accordion |
| 45 | 5304472192 | Hardware, mounting, screws/locks |
| 46 | 5304472211 | Seal Kit, foam, sash filler |
| 47 # | 5304476201 | Dryer-filter |
