Brand: Electrolux
Category: Washing Machine
Document Type: Parts/Service
Language: EN
Parts/Service for EFLS617SIW / EFLS517SIW / EFLS417SIW
Uploaded: Sept. 12, 2025, 4:19 a.m.
Manual Publish Date: 2016-05-01

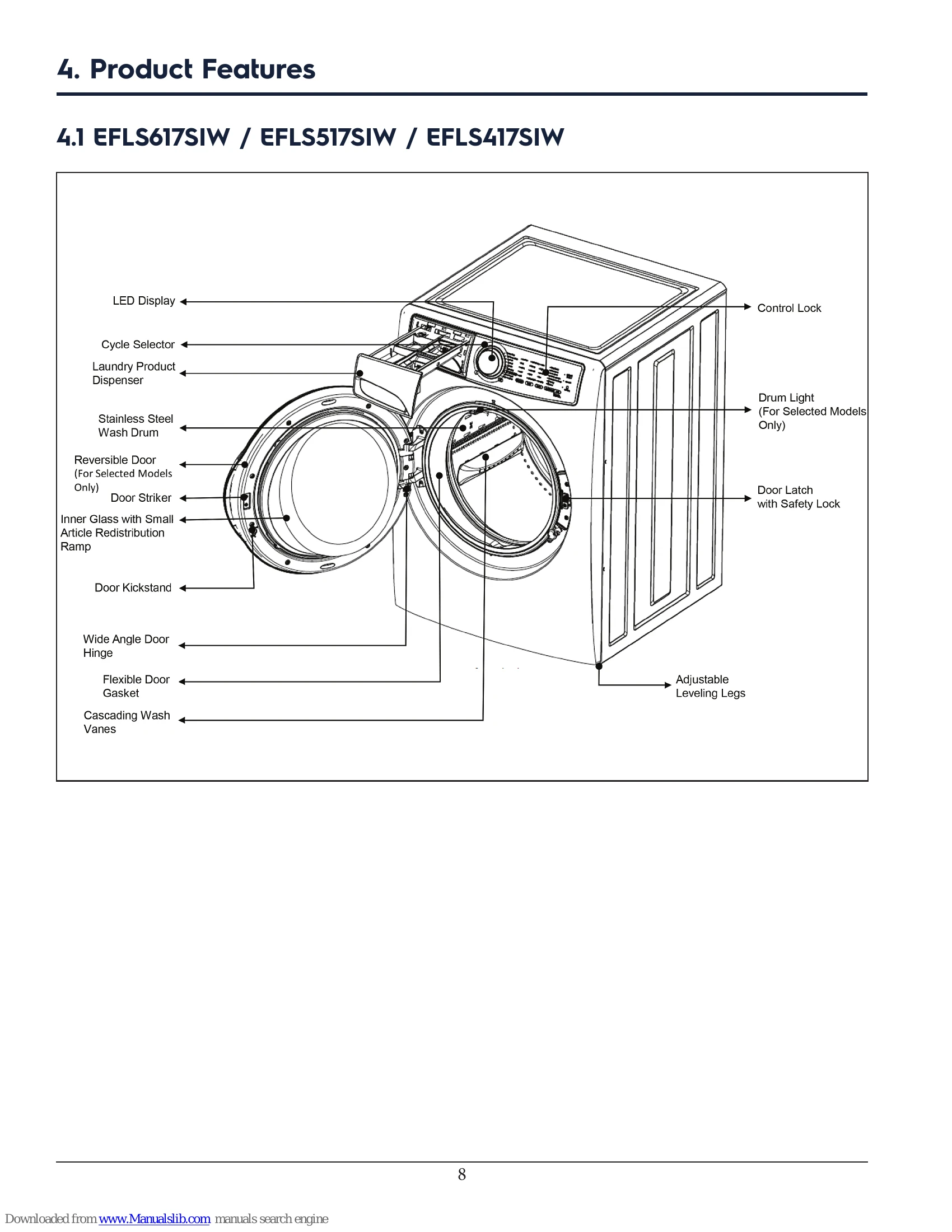

The manual provides technical service information for Electrolux Front Load Washing Machines. It details product features, model specifications, electrical characteristics, and schematics. Key components like pumps, heating elements, and control boards are described. The manual also includes a diagnostic system with error codes and troubleshooting procedures to identify and resolve issues with the washing machine. Specific sections cover accessibility of various parts and their technical specifications, ensuring proper servicing by qualified professionals.
Troubleshooting and error codes
| Error Code | Description | Troubleshooting Steps |
|---|---|---|
| E5A | High Temperature on Control Due to Overload | Check power supply, laundry load, drum rotation, and motor resistance. Check wiring and replace components if necessary. |
| E5B | Motor Control Under Voltage | Measure main voltage. Check connectors and replace Motor Control Board or Main Control Board if voltage is out of range. |
| E5C | High Voltage experienced by Motor Control | Measure main voltage. Check connectors and replace Motor Control Board or Main Control Board if voltage is out of range. |
| E5D | Communication Problem with Motor Control | Check connectors between Main Control Board and Motor Control Board. Check wiring continuity and replace boards or wiring if necessary. |
| E5E | Communication Problem from Motor Control | Check connectors between Main Control Board and Motor Control Board. Check wiring continuity and replace boards or wiring if necessary. |
| E5F | Motor Control is Continuously Resetting | Check connectors between Main Control Board and Motor Control Board. Check wiring continuity and replace boards or wiring if necessary. |
| E62 | Wash Temperature Too High | Measure NTC resistance. Check wiring to Main Control Board. Check heating element resistance and ground resistance. Replace NTC, wiring, heating element, or Main Control Board as needed. |
| E66 | Heater Relay Problem | Check heating element resistance, wiring resistance to Main Control Board, and ground resistance. Replace heating element, wiring, or Main Control Board. |
| E68 | Current Leakage to Ground on Heater or Wiring | Check heating element resistance, wiring resistance to Main Control Board, and ground resistance. Replace heating element, wiring, or Main Control Board. |
| E69 | Heater Open | Check heating element resistance, wiring resistance to Main Control Board, and ground resistance. Replace heating element, wiring, or Main Control Board. |
| E6A | Heater Relay Sensing Problem | Check heating element resistance, wiring resistance to Main Control Board, and ground resistance. Replace heating element, wiring, or Main Control Board. |
| E71 | Drum Water NTC Failure (Tub Heater) | Measure Drum water NTC resistance. Check wiring to Main Control Board. Check heating element resistance and ground resistance. Replace NTC, wiring, heating element, or Main Control Board. |
| E74 | Wash Temperature Does Not Increase | Measure Drum water NTC resistance. Check wiring to Main Control Board. Check heating element resistance and ground resistance. Replace NTC, wiring, heating element, or Main Control Board. |
| E84 | Recirculation Pump TRIAC Series | Check input power supply to Recirculation Pump. Check wiring between Main Board and Pump. Measure pump resistance. Replace wiring, pump, or Main Control Board. |
| E85 | Recirculation Pump TRIAC | Check input power supply to Recirculation Pump. Check wiring between Main Board and Pump. Measure pump resistance. Replace wiring, pump, or Main Control Board. |
| E83 | Wrong Selector Reading | Check installation of control boards and wiring. Replace boards or wiring if configuration is incorrect. |
| E86 | Incorrect User Interface Selection Table | Check installation of control boards and wiring. Replace boards or wiring if configuration is incorrect. |
| E87 | User Interface Micro-Controller Fault | Check installation of control boards and wiring. Replace boards or wiring if configuration is incorrect. |
| E91 | Communication Error User Interface to Control Board | Disconnect J16. Check if error reappears. Check wiring between Main Control Board and User Interface Board. Replace Main Control Board or User Interface Board, or repair wiring. |
| E92 | User Interface, Main Board Communications Error | Disconnect J16. Check if error reappears. Check wiring between Main Control Board and User Interface Board. Replace Main Control Board or User Interface Board, or repair wiring. |
| E93 | Console or Main Board Control Problem | Check installation of control boards and wiring. Replace boards or wiring if configuration is incorrect. |
| E94 | Main Board Control Problem | Check installation of control boards and wiring. Replace boards or wiring if configuration is incorrect. |
| E97 | Console or Main Board Control Problem | Check installation of control boards and wiring. Replace boards or wiring if configuration is incorrect. |
| E98 | Console Control Problem | Check connectors of Main Control Board and Motor Control Board. Check wiring continuity. Replace Motor Control Board, wiring, or Main Control Board. |
| E9C | User Interface Configuration Problem | Disconnect J16 and J5. Check if error reappears. Check wiring between Main Control Board and User Interface Board. Replace Main Control Board, User Interface Board, or repair wiring. |
| E9E | Key Stuck or Contaminated | Clean buttons and spring alignment. Replace User Interface Board if necessary. |
| EH1 | Frequency of Power Out of Limits | Measure main voltage/frequency. Check power wiring to motor and main boards. Replace Motor Control Board or Main Control Board. |
| EH2 | Supply Voltage Too High | Measure main voltage/frequency. Check power wiring to motor and main boards. Replace Motor Control Board or Main Control Board. |
| EH3 | Supply Voltage Too Low | Measure main voltage/frequency. Check power wiring to motor and main boards. Replace Motor Control Board or Main Control Board. |
| EHE | Control Relay Fault | Measure main voltage/frequency. Check power wiring to motor and main boards. Replace Motor Control Board or Main Control Board. |
| EHF | Control Relay Sense Fault | Measure main voltage/frequency. Check power wiring to motor and main boards. Replace Motor Control Board or Main Control Board. |
| EF2 | Too Much Soap or Wrong Type | Check connectors. Advise customer on correct detergent usage and cleaning of filter/drain circuit. |
| EF5 | Load Unbalanced | Check power supply, laundry load, drum rotation, and motor resistance. Check wiring and replace components if necessary. |
| EF6 | Control Reset | Check wiring to main board. Unplug and retry. Replace Main Control Board if problem persists. |
| EF9 | Hot Valve Warning | Check water supply line continuity. Ensure Hot and Cold hoses are correctly connected. Check hot water temperature. Replace Main Control Board if necessary. |
