Brand: Electrolux
Category: Refrigerator
Document Type: Parts/Service
Language: EN

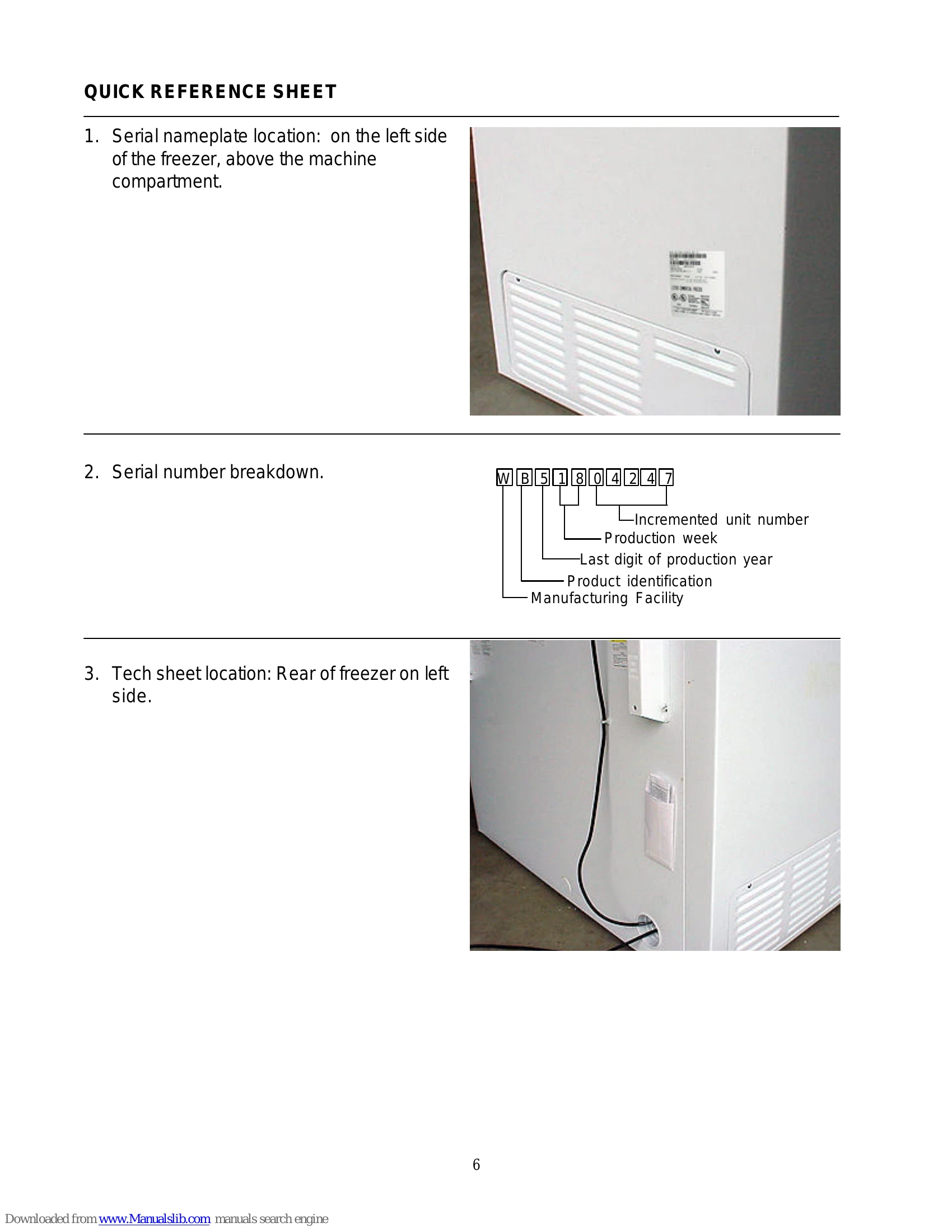

Parts/Service for FROST-FREE CHEST FREEZER
Uploaded: Sept. 12, 2025, 4:19 a.m.
Manual Publish Date: 2005-07-01
Warranty Information
Electrolux provides a limited warranty for parts and labor for one year, with extended coverage for specific components.
- Installation: Place near a grounded outlet, ensure adequate air circulation (3 inches on all sides), and level the unit.
- Temperature Control: Factory preset, but adjustable. Turn towards COLD-EST for colder temperatures.
- Cool Down Period: Allow 4 hours for the freezer to cool completely before loading food.
- Loading: Freeze no more than 3 pounds of fresh food per cubic foot at a time.
- Care and Cleaning: Clean interior and exterior with mild detergent and warm water. Do not use harsh cleaners or abrasive pads. Unplug before cleaning.
- Vacation/Moving: For short vacations, leave the freezer running. For long vacations, remove food and unplug. When moving, disconnect power, remove food, secure items, and transport upright.
Troubleshooting and error codes
| OCCURRENCE | SOLUTION |
|---|---|
| Freezer Does Not Run. | Check for plugged-in status, ground fault interrupt, loose plug, blown fuse/tripped breaker, or power outage. |
| Freezer Runs Too Much or Too Long. | Consider room/outside temperature, recent large warm food loads, frequent lid openings, or a misaligned lid seal. Adjust temperature control if set too cold. |
| Temperature Inside Freezer is Too Cold. | Adjust temperature control to a warmer setting. |
| Temperature Inside Freezer is Too Warm. | Adjust temperature control to a colder setting. Consider frequent lid openings, recent warm food loads, or if the freezer was recently disconnected. |
| Temperature of External Freezer Surface is Warm. | Normal operation while the compressor transfers heat. |
| Louder Sound Levels Whenever Freezer is ON. | Normal operation, especially in quieter environments. |
| Louder Sound Levels When Compressor Comes ON. | Normal operation during higher pressure at the start of the cycle. |
| Popping or Cracking Sound When Compressor Comes ON. | Normal due to metal expansion and contraction. |
| Bubbling or Gurgling Sound, Like Water Boiling. | Normal refrigerant circulation. |
| Vibrating or Rattling Noise. | Ensure the freezer is level, the floor is adequate, and the freezer is not touching walls. |
| Moisture Forms On Inside Freezer Walls. | Normal in hot, humid weather. Ensure lid is not slightly open or kept open too long. |
| Moisture Forms On Outside of Freezer. | Ensure lid is slightly open, causing condensation. See "Lid Problems". |
| Odor In Freezer. | Clean the interior. Ensure foods with strong odors are tightly covered. |
| Lid Problems. | Ensure the freezer is level, the floor is adequate, and the lid is properly sealing. |
| Light Bulb is Not On. | Check if bulb is burned out or if there is no electrical current reaching the freezer. |
