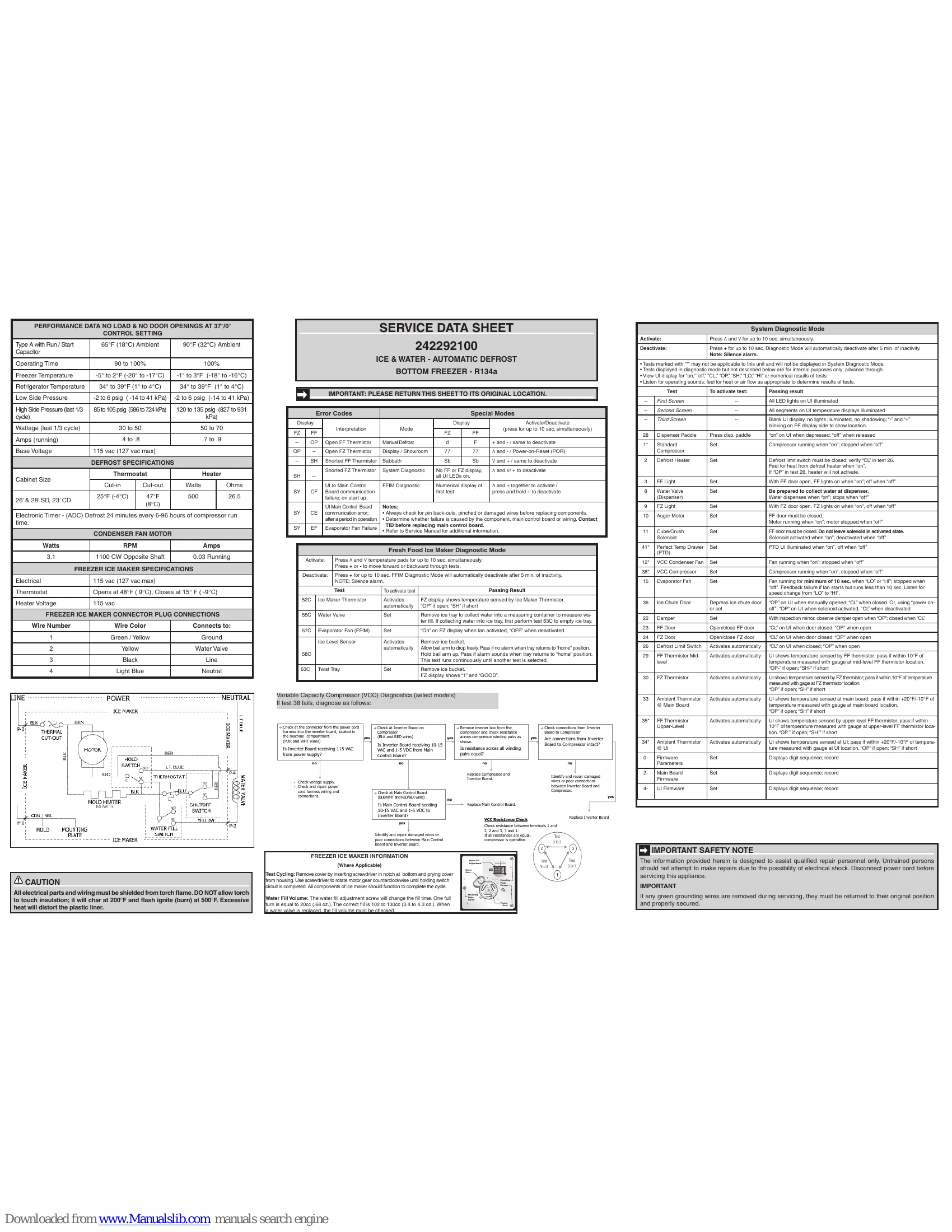

Spec Sheet for 242292100
Uploaded: Nov. 21, 2025, 8:56 p.m.
Manual Publish Date: null
Warranty Information
null
This document provides performance data, defrost specifications, and ice maker specifications for the Electrolux Ice & Water Automatic Defrost Bottom Freezer R134a. It includes details on operating temperatures, pressures, wattages, and amperage under various ambient conditions. The defrost section outlines thermostat and heater specifications, while the ice maker section details its electrical requirements and components. System diagnostic modes and error codes are also explained to aid in troubleshooting.
Troubleshooting and error codes
| Error Codes | Interpretation | Special Modes | Activate/Deactivate | Mode | Display | Interpretation |
|---|---|---|---|---|---|---|
| FZ FF | OP Open FF Thermistor | Manual Defrost | d | |||
| SH Shorted FF Thermistor | + and-/same to deactivate | |||||
| SH Shorted FZ Thermistor | Sabbath | Sb | Sb | |||
| No FF or FZ display, all UI LEDs on. | Ul to Main Control | V and +/ same to deactivate | ||||
| SY CF Board communication failure; on start up | FFIM Diagnostic | A and V/ + to deactivate | ||||
| SY CE communication error; after a period in operation | UI Main Control Board first test | A and + together to activate / press and hold + to deactivate | ||||
| SY EF Evaporator Fan Failure | Compressor | |||||
| Defrost Heater | Set | |||||
| System Diagnostic | Set | |||||
| UI Light | Set | "on" on Ul when depressed; "off" when released | ||||
| Water Valve (Dispenser) | Set | Compressor running when \"on\"; stopped when \"off\" | ||||
| FZ Light | Set | Defrost limit switch must be closed; verify \"CL\" in test 26. | ||||
| Auger Motor | Set | Feel for heat from defrost heater when \"on\". | ||||
| Cube/Crush Solenoid | Set | If \"OP\" in test 26, heater will not activate. | ||||
| Perfect Temp Drawer (PTD) | Set | PTD UI illuminated when \"on\", off when \"off\" | With FF door open, FF lights on when \"on\"; off when \"off\" | |||
| VCC Condenser Fan | Set | Fan running when \"on\"; stopped when \"off\" | Be prepared to collect water at dispenser. | |||
| VCC Compressor | Set | Compressor running when \"on\"; stopped when \"off\" | Water dispenses when \"on\"; stops when \"off\" | |||
| Evaporator Fan | Set | Fan running for minimum of 10 sec. when \"LO\" or \"HI\"; stopped when \"off\". Feedback failure if fan starts but runs less than 10 sec. Listen for speed change from \"LO\" to \"HI\". | With FZ door open, FZ lights on when \"on\", off when \"off\" | |||
| Ice Chute Door | Set | "OP" on Ul when manually opened; "CL" when closed. Or, using "power on-off", "OP" on Ul when solenoid activated, "CL" when deactivated | Motor running when \"on\"; motor stopped when \"off\" | |||
| Damper | Set | With inspection mirror, observe damper open when \"OP\"; closed when \"CL\" | FF door must be closed. Do not leave solenoid in activated state. | |||
| FF Door | Activates automatically | "CL" on Ul when door closed; "OP" when open | ||||
| FZ Door | Activates automatically | "CL" on Ul when door closed; "OP" when open | ||||
| Defrost Limit Switch | Activates automatically | "CL" on Ul when closed; "OP" when open | ||||
| FF Thermistor | Activates automatically | Ul shows temperature sensed by FF thermistor; pass if within 10°F of temperature measured with gauge at mid-level FF thermistor location. "OP-" if open; "SH-" if short | ||||
| FZ Thermistor | Activates automatically | Ul shows temperature sensed by FZ thermistor, pass if within 10°F of temperature measured with gage at FZ thermistor location. "OP" if open: "SH" if short | ||||
| Ambient Thermistor | Activates automatically | Ul shows temperature sensed at main board; pass if within +20°F/-10°F of temperature measured with gauge at main board location. | ||||
| FF Thermistor Upper-Level | Activates automatically | Ul shows temperature sensed by upper level FF thermistor; pass if within 10°F of temperature measured with gauge at upper-level FF thermistor loca-tion. "OP"" if open; "SH" if short | ||||
| Ambient Thermistor UI | Activates automatically | Ul shows temperature sensed at UI; pass if within +20°F/-10°F of temperature measured with gauge at UI location. "OP" if open; "SH" if short | ||||
| Firmware Parameters | Set | Displays digit sequence; record | ||||
| UI Firmware | Set | Displays digit sequence; record |
