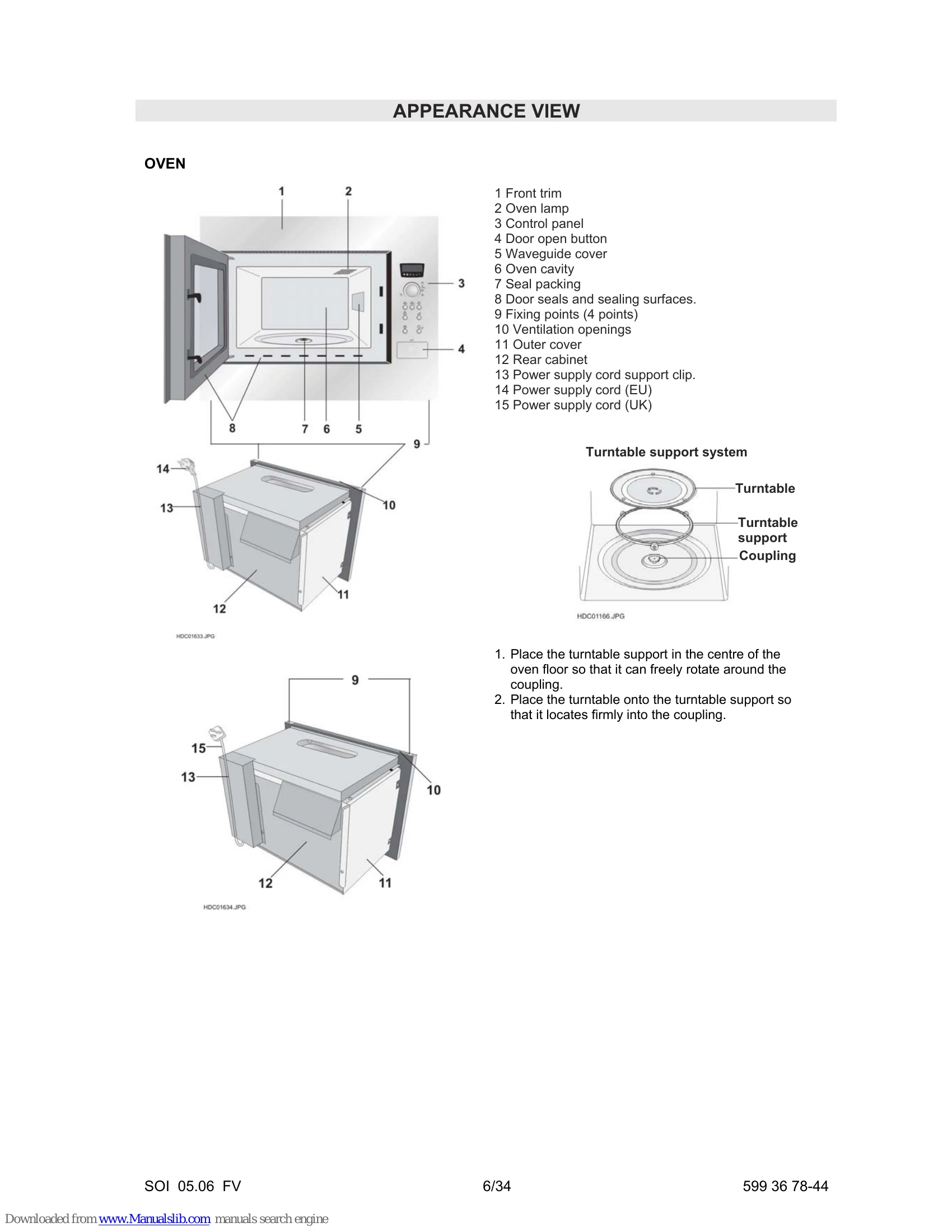

OFF CONDITION
When the oven door is closed, the monitor switch contacts COM - NC must be open. When the microwave oven is plugged in a wall outlet (230V (EU) / 230-240V (UK) 50Hz), the noise filter is energized. NOTE: When the oven door is opened, the oven lamp comes on at this time.HIGH COOKING
Enter a desired cooking time by rotating the time/weight knob and start the oven by touching START pad.Power Transformer Operation
The line voltage is supplied to the primary winding of the power transformer. The voltage is converted to about 3.3 volts A.C. output on the filament winding and high voltage of approximately 2000 volts A.C. on the secondary winding. The filament winding voltage (3.3 volts) heats the magnetron filament and the high voltage (2000 volts) is sent to the voltage doubling circuit, where it is doubled to negative voltage of approximately 4000 volts D.C.. The 2450 MHz microwave energy produced in the magnetron generates a wave length of 12.24 cm. This energy is channelled through the waveguide (transport channel) into the oven cavity, where the food is placed to be cooked. When the cooking time is up, a single tone is heard and the relays RY1 + RY3 + RY4 go back to their home position. The circuits to the oven lamp, power transformer, fan motor and turntable motor are cut off.Troubleshooting and error codes
| CONDITION | PROBLEM | MAGNETRON | HIGH VOLTAGE TRANSFORMER | H.V. RECTIFIER ASSY | HIGH VOLTAGE CAPACITOR | MONITORED LATCH SWITCH | MAG THERMAL CUT-OUT 125°C | THERMAL CUT-OUT 125°C (OVEN) | MONITOR SWITCH | H.V. HARNESS | STOP SWITCH | TURNTABLE MOTOR | TC TRANSFORMER | NOISE FILTER | FOIL PATTERN ON P.W.B. | CONTROL UNIT | POWER SUPPLY CORD | RELAY RY1,3,4 | SWITCH UNIT | FAN MOTOR | OPENED WIRE HARNESS | FUSE F1 | OVEN LAMP | BLOCKED VENTILATION OPENINGS | WRONG OPERATION | MIS-ADJUSTMENT OF SWITCHES | NO POWER AT WALL OUTLET | HOME FUSE OR BREAKER | BLOKED COOLING FAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OFF CONDITION | Home fuse blows when power cord is plugged into wall outlet. | • | • | • | |||||||||||||||||||||||||
| "88:88"does not operate in display when power cord is plugged into wall outlet. | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||||||||||||
| Display does not operate properly when STOP button is touched. | • | • | • | • | • | ||||||||||||||||||||||||
| Oven lamp does not light, when door is opened. (Display operates). | • | • | • | • | • | • | |||||||||||||||||||||||
| Oven does not start when START button is touched. (Display operates). | • | • | • | • | • | • | • | • | • | ||||||||||||||||||||
| Fan motor does not operate (Oven lamp lights). | • | • | • | • | • | • | • | • | • | • | |||||||||||||||||||
| Turntable motor assembly does not operate (Oven lamp lights). | • | • | • | • | • | ||||||||||||||||||||||||
| Oven or electrical parts does not stop when timer knob is at "0" or STOP button is touched. | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||||||||
| CONDITION | Display operates properly but all electrical parts do not operate. | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||||||||
| COOKING | Oven goes into cook cycle but shuts down before end of cooking cycle. | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | ||||||
| Oven seems to be operating but little or no heat is produced in oven load (Microwave power control is set at HIGH). | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||||||
| Oven does not seem to be operating properly during variable cooking condition(Oven operates properly at HIGH). | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |||||||
| Fuse F8A blows (F2) | • | • |
