Brand: Electrolux
Category: Dryer
Document Type: Manual
Language: EN

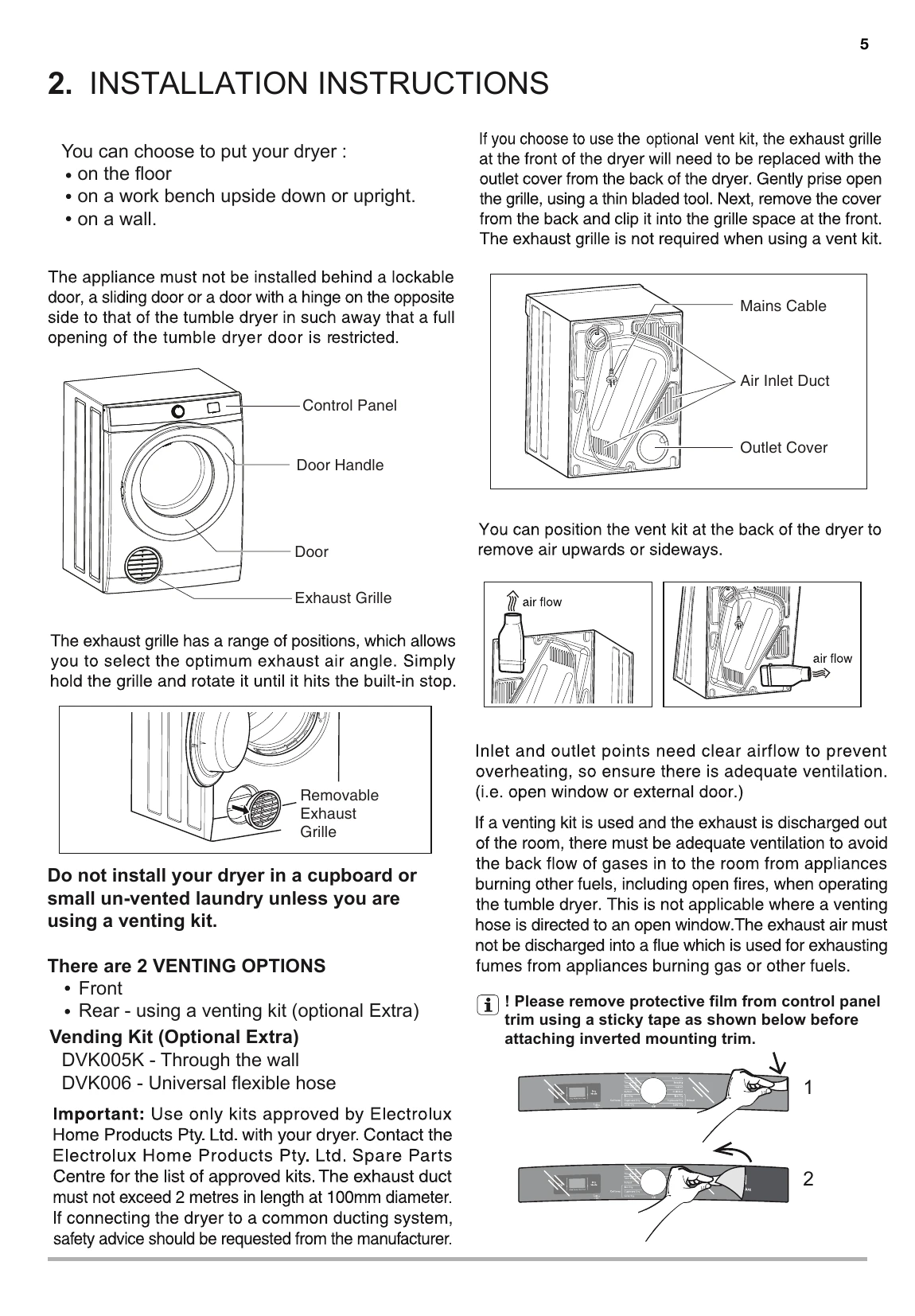

Manual for EDV705H3WB
Uploaded: Sept. 12, 2025, 4:20 a.m.
Warranty Information
This warranty covers Electrolux dryers for 24 months from the date of purchase in Australia and New Zealand.
Dryer Operation Summary
1. Preparation: Ensure the lint filter is clean and the load is spun thoroughly. Load the dryer loosely, not exceeding two-thirds capacity.
2. Program Selection: Use the Program Selector knob to choose the desired drying program (e.g., Cottons Dry, Mixed Dry, Synthetics). The display will show the estimated drying time. You can also select drying modes like Low, Mid, High, or Airing.
3. Starting the Dryer: Press the Start/Pause button to begin the cycle. The dryer will not start unless the door is fully closed.
4. During the Cycle: You can open the door to check dryness or add/remove clothes, but for best results, do this at the beginning of the cycle. The dryer features a reversing action for even drying and an anti-crease cycle at the end.
5. End of Cycle: The dryer will automatically switch off the heater at the end of the cycle, followed by a cooling cycle. The display will show "End". Remember to clean the lint filter after each load.
6. After Use: Turn the Program Selector knob to "OFF" and switch off at the power point when finished. It's recommended to power off when not in use.
Troubleshooting and error codes
| Problem | Possible causes |
|---|---|
| The dryer will not start: |
• Plug is not firmly in socket, or power not turned on. • You have blown a fuse. Check the power point with another appliance. • You have not closed the dryer door or pushed in the door safety switch button. |
| Your clothes are still wet/not fully dried |
• Load is too small for autosensing program or load consists of some multilayered items. Use Time Dry program to complete drying, refer Hints in section 4. • The selected drying time was insufficient. Select a longer time setting. • Longer time may be needed when the room temperature is 10 °C or less. • Check that the lint filter is not blocked. • Check to see that you have read all the instructions carefully. • Contact the Service Center if you are still having problems. Write down the model and serial numbers and the date of purchase before you ring. The Service Center will need this information. |
