Brand: Electrolux
Category: Cooktop
Document Type: Manual
Language: EN

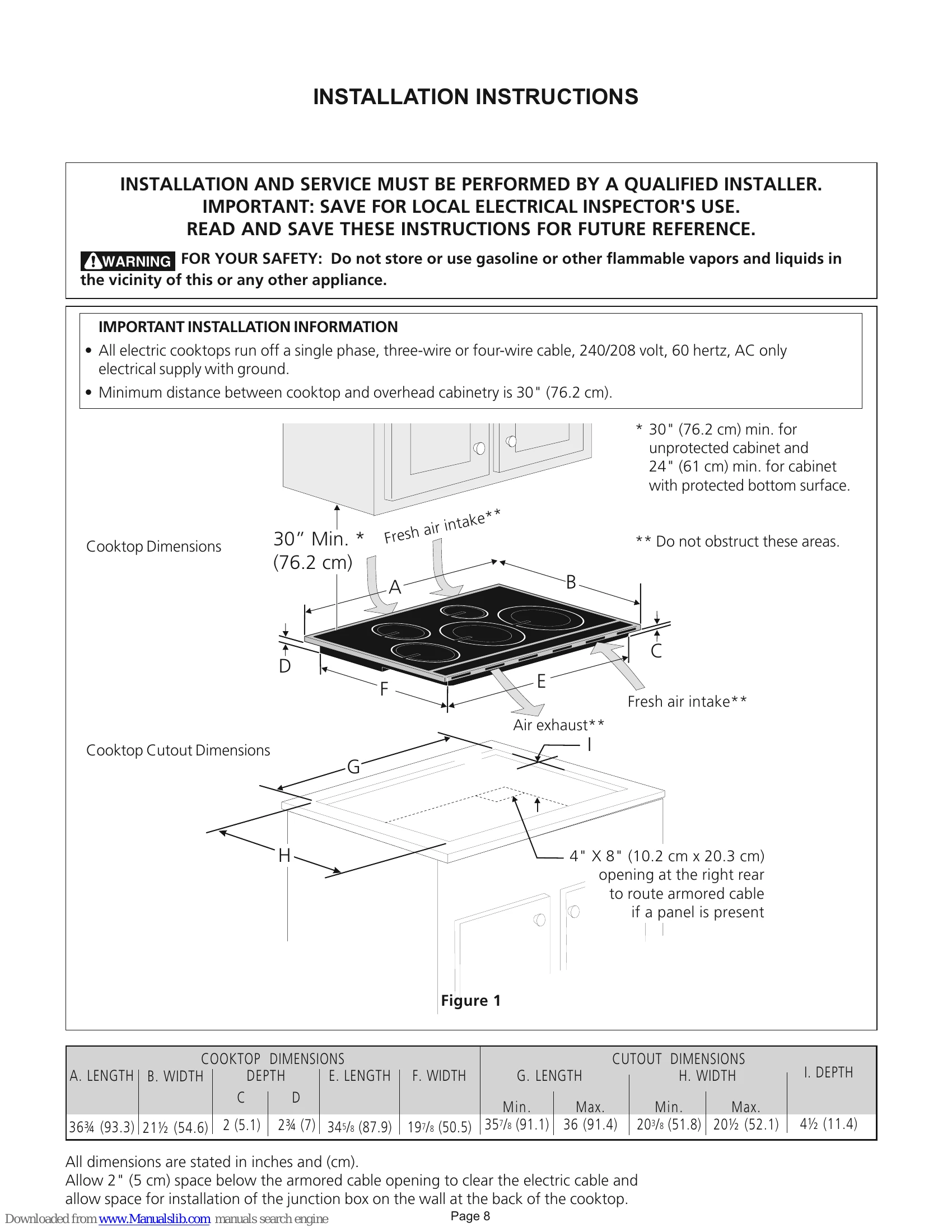

Manual for E36IC75FSS
Uploaded: Nov. 21, 2025, 8:51 p.m.
Manual Publish Date: 2007-05-01
Warranty Information
None
- Using the Touch Control: Lightly contact touch pads with the flat part of your fingertip.
- Operating Cooking Zones: Place cookware on the desired zone, touch and hold POWER for 2 seconds. Touch the desired zone ON/OFF pad. Adjust power level using + or - pads.
- Turning Off Cooking Zones: Touch the ON/OFF pad for the desired zone.
- Keep Warm Feature: Touch the zone ON/OFF pad, then touch the WARM key pad. Display will show 'L'.
- Minute Timer: Use the UP/DOWN arrow key pads to set time from 1-99 minutes.
Troubleshooting and error codes
| Error | Possible Cause or Condition | Suggested Corrective Action |
|---|---|---|
| 2 | LF zone control defective key sensor | Test cables and connections between left side cook zones control and main power control. |
| 3 | LF zone control defective key sensor | |
| 4 | LF zone control key sensor defective | |
| 6 | LR zone control defective key sensor | Replace left side cook zones touch control |
| 7 | LR zone control defective key sensor | |
| 8 | LR zone control key sensor defective | |
| 10 | Center zone control defective key sensor | Test cables & connections between center/right rear cook zone control and main power touch control. |
| 11 | Center zone control defective A key sensor | |
| 12 | Center zone control key sensor defective | |
| 14 | RR zone control defective key sensor | Replace center/right rear cook zone control touch control |
| 15 | RR zone control defective key sensor | |
| 16 | RR zone control key sensor defective | |
| 17 | RF zone control key sensor defective | Test cables & connections on main power/right front cook zone touch control. |
| 18 | RF zone control + key sensor defective | |
| 19 | RF zone control key sensor defective | |
| 21 | Timer key sensor defective | Replace main power/right front cook zone touch control |
| 22 | Timer + key sensor defective | |
| 23 | Keep warm key sensor defective | |
| 24 | Lock key sensor defective | |
| 25 | Main power key sensor defective | |
| 30 | AC input voltage too high at the 3 cook zones induction module. | -Verify AC input voltage at the cooktop input. -Verify AC main input cables, screws and jumpers. -Replace the filter board in the 3 zones induction module |
| 31 | Internal generator error, sync in the 3 cook zones induction module / left side cooking zones. | -Test cables & connections on left side generator circuit board (dual). -Replace the generator circuit board (LF/LR) in the 3 zones induction module |
| 32 or 72 | Low voltage output from 12V supply on filter board in the 3 cook zone induction module. | -Test all cables & connections on filter circuit board in the 3 zones induction module. -Replace the filter circuit board in the 3 zones induction module. |
| 33 or 73 | Improper voltage output from filter board in the 3 cook zone induction module. | Replace generator circuit boards in the 3 zones induction module |
| 34 | Communication failure between filter board and power boards in the 3 cook zones induction module / left side cooking zones. | -Check cable between filter board X12 and generator board X10 -Replace the filter circuit board in the 3 zones induction module. -Replace generator circuit board in the 3 zones induction module. |
| 35 or 75 | AC input voltage too low in the 3 cook zones induction module. | -Verify AC input voltage at the cooktop input. -Verify AC main input cables, screws and jumpers. -Replace the filter board in the 3 zones induction module |
| 36 | Communication error between main touch control and filter board. (3 cook zones induction module / left side cooking zones) | Verify all communication cables between user interface and both induction generator modules. -Replace the filter circuit board in the 3 zones induction module . -Replace generator circuit board (dual) in the 3 zones induction module. |
| 37 | Heat sink temperature sensor break (3 zones induction module / left side cooking zones) | Replace the generator circuit board (LF/LRI) in the 3 zones induction module |
| 39 | Configuration mismatch between the User Interface and the induction module (occurs when one of the 2 zone induction modules is replaced) | To resolve this error, Press and hold WARM key, then press Right Front zone ON key until beep (keep holding WARM) release Right Front zone ON key and press Left Front zone ON key until beep & config starts. Replace the filter circuit board in the 3 zones induction module . |
| 40 | Communication failure between main touch control and filter board. | Verify AC input at the (2 zones induction housing) (X50 / X52). Verify Lin Bus harness cable from X68/X67 on right side filter board (2 zones induction module) to X20 on the left side filter board (3 zones induction module). Verify the lin communication wire at the timer input at X4/X5 pin 2. |
| 45 | Incoming power supply low voltage | Verify incoming power supply to cooktop |
| 51 | LF Element temperature sensor break | Verify Element temperature sensor is correctly connected to the generator circuit board. |
| 52 | LR Element temperature sensor break | Replace element if temperature sensor resistor value is not approximatively 1000 ohms (blue wires) at room temperature. Replace associated generator circuit board. |
| 53 | Center Element temperature sensor break | |
| 54 | RR Element temperature sensor break | |
| 55 | RF Element temperature sensor break | Replace main power touch control. |
| 60 | Touch: general hardware error, keys | Replace cook zones touch controls |
| 61 | LF Element temperature sensor too hot | Verify cooktop ventilation is correct (airway and fan). |
| 62 | LR Element temperature sensor too hot | Verify Element temperature sensor is correctly connect to the generator circuit board. |
| 63 | Center Element temperature sensor too hot | Replace element if temperature sensor resistor value is not approximatively 1000 ohms (blue wires) at room temperature. Replace associated generator circuit board. |
| 64 | RR Element temperature sensor too hot | |
| 65 | RF Element temperature sensor too hot | |
| 70 | See error 30 | See error 30 |
| 71 | Internal generator error, sync (center cooking zone) | -Test cables & connections on center generator circuit board (single). -Replace the generator circuit board (single) in the 3 zones induction module . |
| 72 | See error 32 | See error 32 |
| 73 | See error 33 | See error 33 |
| 74 | Internal generator error, communication (3 zones induction module) | -Check cable between filter board X13 and generator board X10 -Replace the filter circuit board in the 3 zones induction module. -Replace generator circuit board in the 3 zones induction module |
| 75 | See error 35 | See error 35 |
| 76 | Communication Error in the 3 cook zones induction module for the center cooking zones. | Verify all communication cables between user interface and both induction generator modules. -Replace the filter circuit board in the 3 zones induction module . -Replace generator circuit board for the center cook zone in the 3 zones induction module |
| 77 | Heat sink temperature sensor break in the 3 cook zones induction module for the center cooking zones. | Replace the generator circuit board for the center cook zone in the 3 zones induction module |
| 80 | Flash/Rom check fail (EEPROM data) | Replace main power touch control |
| 90 | AC input voltage too high in the 2 cook zones induction module. | -Verify AC input voltage at the cooktop input. -Verify AC main input cables, screws and jumpers. -Replace the filter board in the 2 zones induction module |
| 91 | Internal generator error, sync in the 2 cook zones induction module. | Test cables & connections on right generator circuit board. Replace the right side generator circuit board |
| 92 | 12V on the service section too low in the 2 cook zones induction module. | Test all cables & connections on filter circuit board in the 2 zones induction module . -Replace the filter circuit board in the 2 zones induction module. |
| 93 | 5V overcurrent on the switched 5V on the service section (2 zones induction module). | Replace generator circuit boards in the 2 zones induction module |
| 94 | Internal generator error, communication in the 2 cook zones induction module. | Verify cable between filter board X58 and generator board X10 on the 2 zones induction module. -Verify the heat sink thermal cutout in the 2 zones induction module is connected and resistance is approximately 0 ohms. -Replace the filter circuit board in the 2 zones induction module. -Replace generator circuit board in the 2 zones induction module |
| 95 | AC input voltage too low in the 2 cook zones induction module. | Verify AC input voltage at the cooktop input. -Verify AC main input cables, screws and jumpers. -Verify the fuse resistance is approximatively 0 ohms in the 2 zones induction module. -Replace the filter circuit board in the 2 zones induction module |
| 96 | Communication Error in the 2 cook zones induction module. | Verify all communication cables between user interface and both induction generator module. -Replace the filter circuit board in the 2 zones induction module. -Replace generator circuit board in the 2 zones induction module |
| 97 | Heat sink temperature sensor break in the 2 cook zones induction module. | Replace the generator circuit board in the 2 zones induction module |
| Additional Failure Conditions | ||
| Pan does not heat up. | Normal operation | Pan too small for proper pan detection and only works with low power. Use larger pan or this pan on a smaller cooking zone. Refer to owners guide for proper pan selection. |
| Flashing "F" and pan does not heat. | Pan not detected. Check whether the pots or pans are suitable for induction. Refer to owners guide for proper pan selection. | |
| Induction Coil not correctly connected or Induction Coil open. Check the coil wire terminal connections. Ensure that they are properly connected and tightened. Test continuity of coil (should be less than 12). | ||
| Distance between coil and glass ceramic too large. Check whether the coil is properly positioned and touching the glass cooktop surface. | ||
| Individual buttons cannot be used or cannot always be used. | None | 1. Follow instructions for proper use of touch controls on page 16 2. Check wires and connectors. 3. Replace Touch Control. |
| Cooking power too low or cooktop shuts down prematurely. | None | Auto Shut Off Activated. Cooktop will automatically shut off after 18 hours of continuous use. Restart cooktop in normal manner. |
| Fluids spilled or object lying on control panel keypads. | Clean up spills or remove objects. Restart cooktop in normal manner. | |
| - - Seen in Cook Zone display | Cookzone surface temperature above 240°C (464°F). May be caused by boil dry or empty pan on cook zone. Remove Pan and allow cook zone to cool. | |
| Normal operation | Ventilation Slots Obstructed. Clear vent openings | |
| Unsuitable pots (bottom bent). Follow owners guide for proper pan selection | ||
| Distance between coil and glass ceramic too large. Check whether the glass ceramic was pushed down when being screwed in position and the coil has been correctly positioned. | ||
| No Operation / Dead | No Display . No indicators light when power is applied. | Fan does not start. 1. Check the fan for foreign objects, remove these where appropriate. 2. If necessary, replace fan. 3 Replace power generator board. 4 Replace Filter Board. |
| Heat sink thermal cut out open* or unplugged. *If thermal cut out is open check for proper operation of cooling fan and possible vent obstructions. |
1. Verify proper incoming power supply. 2. Check connection of heat sink thermal cutout. 3. Test cut out for < 1 Ω resistance. Replace if open. |
|
| "H" in display when cooking zone is cold and switched off. | "H" | 1.Test Coil RTD for approx. 1ΚΩ at room temperature. Replace coil if resistance is incorrect. 2. Replace power generator board. |
