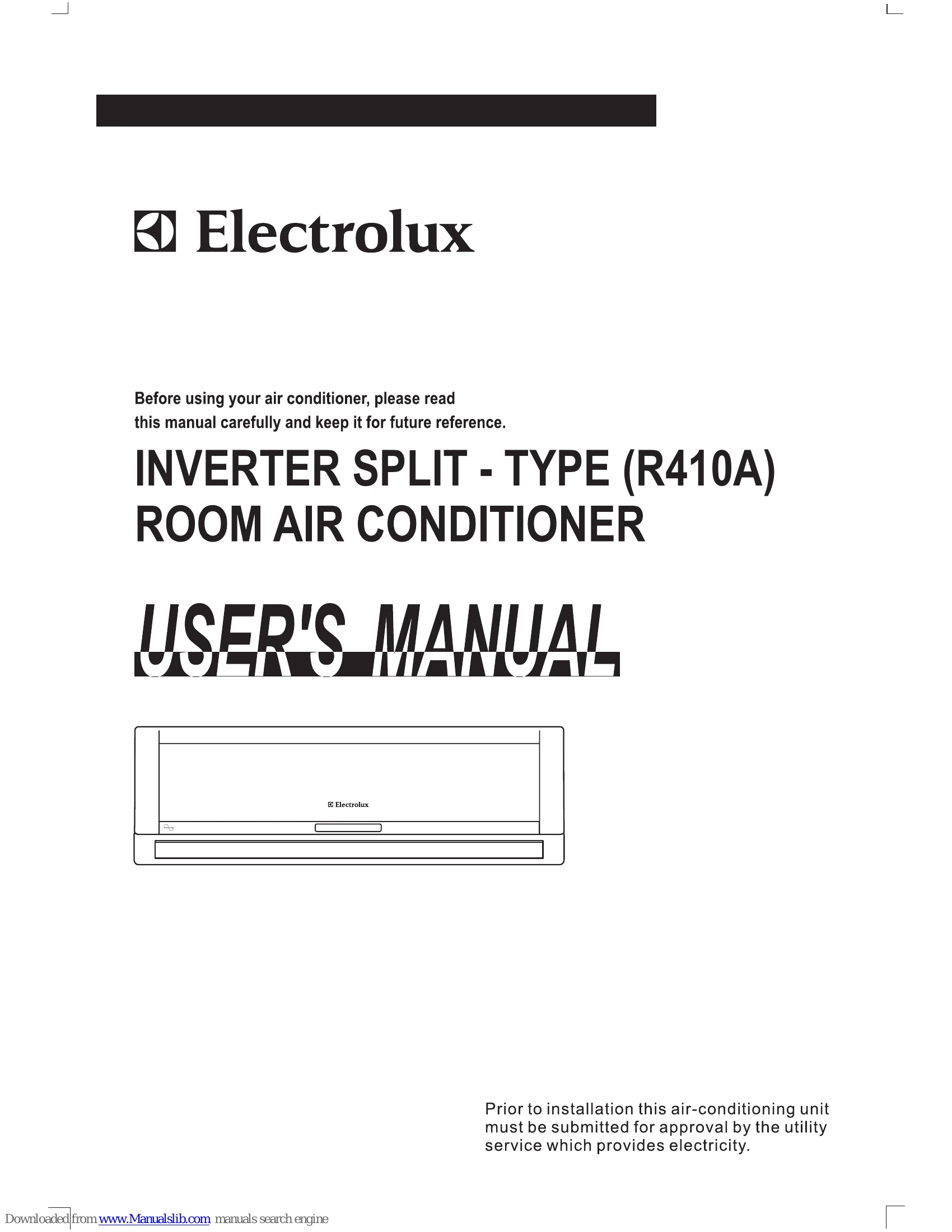

Manual for INVERTER SPLIT - TYPE (R410A) ROOM AIR CONDITIONER
Uploaded: Nov. 21, 2025, 8:11 p.m.
Warranty Information
Contact your local dealer or authorized service center for warranty information and service.
Basic Operation
Starting and Stopping:
- Press the ON/OFF button on the remote to start or stop the air conditioner.
Modes:
- AUTO: Automatically selects cooling, heating, or fan only based on temperature.
- COOL: For cooling the room.
- HEAT: For heating the room.
- DRY: For dehumidifying the room.
- FAN ONLY: Circulates air without cooling or heating.
Fan Speed:
- Adjustable speeds: LOW, MED, HIGH, AUTO.
Temperature Control:
- Use the UP/DOWN buttons to set the desired temperature.
Timers:
- TIMER ON: Sets the unit to turn on automatically.
- TIMER OFF: Sets the unit to turn off automatically.
Other Functions:
- SWING: Activates oscillating louvers for air direction.
- ECONOMY: Energy-saving mode.
- TURBO: For rapid cooling.
- LOCK: Locks remote control settings.
- RESET: Resets settings to factory defaults.
- DIGITAL DISPLAY: Turns the indoor unit display on/off.
Troubleshooting and error codes
| Malfunctions | Cause | What should be done? |
|---|---|---|
| Unit does not start | Power cut | Wait for power to be restored. |
| Unit may have become unplugged. | Check that plug is securely in wall receptacle. | |
| Fuse may have blown. | Replace the fuse. | |
| Battery in Remote controller may have been exhausted. | Replace the battery. | |
| The time you have set with timer is incorrect. | Wait or cancel timer setting. | |
| Unit not cooling or heating (Cooling/ heating models only) room very well while air flowing out from the air conditioner | Inappropriate temperature setting. | Set temperature correctly. For detailed method please refer to "Using remote control" section. |
| Air filter is blocked. | Clean the air filter. | |
| Doors or Windows are open. | Close the doors or windows. | |
| Air inlet or outlet of indoor or outdoor unit has been blocked. | Clear obstructions away first, then restart the unit. | |
| Compressor 3 minutes protection has been activated. | Wait. |
