Brand: Dometic
Category: Absorption Refrigerator
Document Type: Manual
Language: EN
Manual for RM 6270 (L)
Uploaded: Sept. 12, 2025, 4:14 a.m.
Manual Publish Date: 2002-07-01
Warranty Information
Warranty arrangements in accordance with EC Directive 44/1999/CE. Contact Dometic Service for servicing.

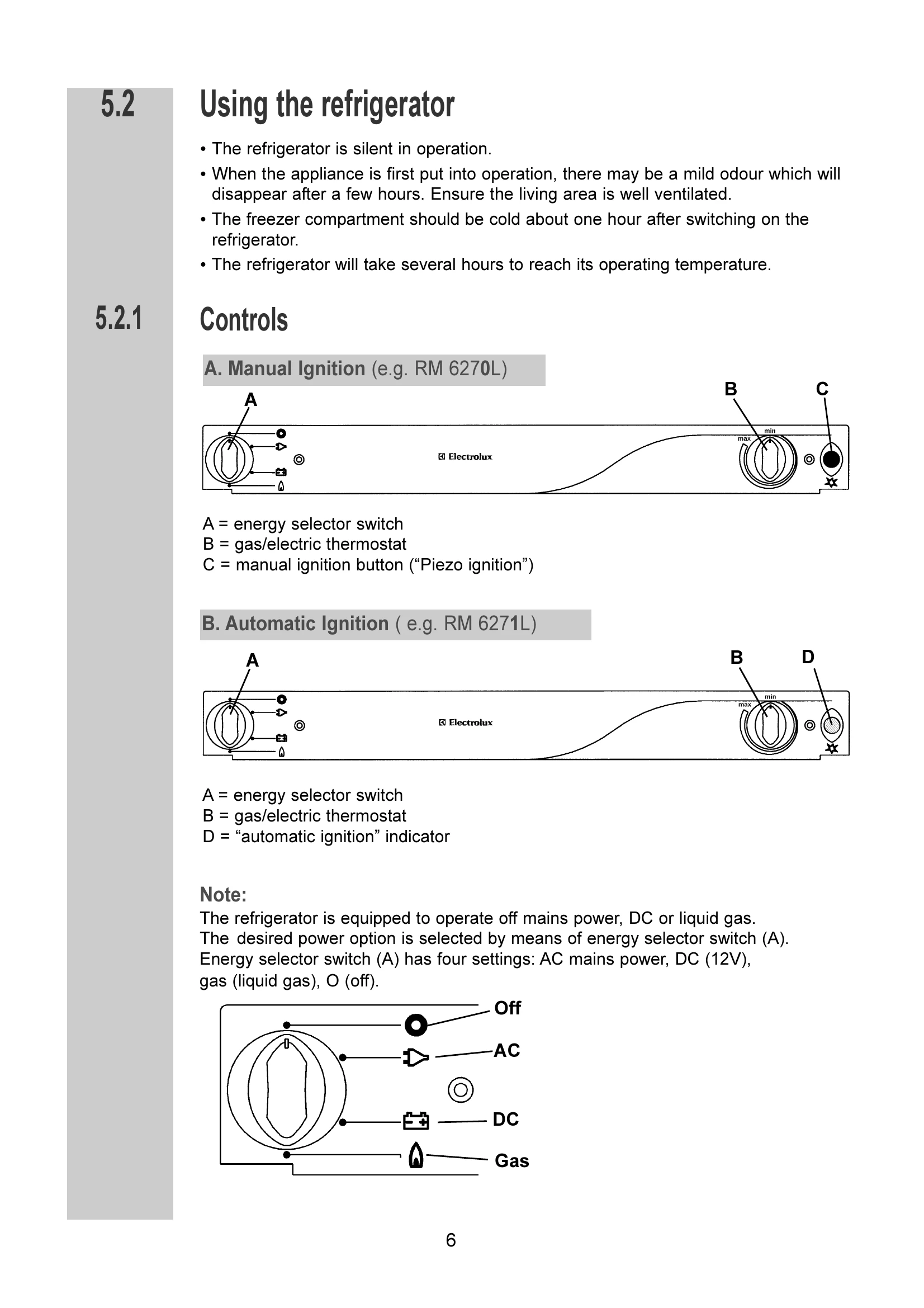

Using the Refrigerator:
The refrigerator operates silently. A mild odor may be present initially, dissipating with ventilation. The freezer compartment chills within an hour, and the main compartment reaches operating temperature in several hours.
Controls:
Manual Ignition (e.g., RM 6270L): Features an energy selector switch (A), gas/electric thermostat (B), and manual ignition button (C).
Automatic Ignition (e.g., RM 6271L): Includes an energy selector switch (A), gas/electric thermostat (B), and an 'automatic ignition' indicator (D).
The refrigerator can run on mains power, DC, or liquid gas. The energy selector switch (A) allows choosing between AC mains, DC (12V), gas, or OFF.
Electrical Operation:
12V DC: Use only while the motor is running. Operates without thermostatic control.
Mains Power: Ensure voltage matches the data plate. Rotary switch (B) regulates temperature.
Gas Operation:
Use only liquid gas (propane/butane). Prohibited in petrol stations. Requires opening gas cylinder and shut-off valves. Ignition can be manual (Piezo) or automatic. All models have automatic flame protection.
The refrigerator operates silently. A mild odor may be present initially, dissipating with ventilation. The freezer compartment chills within an hour, and the main compartment reaches operating temperature in several hours.
Controls:
Manual Ignition (e.g., RM 6270L): Features an energy selector switch (A), gas/electric thermostat (B), and manual ignition button (C).
Automatic Ignition (e.g., RM 6271L): Includes an energy selector switch (A), gas/electric thermostat (B), and an 'automatic ignition' indicator (D).
The refrigerator can run on mains power, DC, or liquid gas. The energy selector switch (A) allows choosing between AC mains, DC (12V), gas, or OFF.
Electrical Operation:
12V DC: Use only while the motor is running. Operates without thermostatic control.
Mains Power: Ensure voltage matches the data plate. Rotary switch (B) regulates temperature.
Gas Operation:
Use only liquid gas (propane/butane). Prohibited in petrol stations. Requires opening gas cylinder and shut-off valves. Ignition can be manual (Piezo) or automatic. All models have automatic flame protection.
Troubleshooting and error codes
| Problem | Possible Cause | Action You Can Take |
|---|---|---|
| The refrigerator does not work in gas operation mode. | a.) Gas bottle empty. | a.) Change gas bottle. |
| b.) Is the supply cut-out device open?. | b.) Open the cut-out device. | |
| The refrigerator does not work on 12V. | a.) On-board fuse defective. | a.) Fit new fuse. |
| The refrigerator does not cool sufficiently. | a) Inadequate ventilation to the unit. | a) Check that the ventilation grilles are not covered. Check whether the refrigerator was installed properly (Installation Guide). |
| b) The thermostat setting is too low. | b) Turn the thermostat to a higher setting. | |
| c) There is too much ice on the condenser. | c) Check that the refrigerator door seals when shut. | |
| d) Too much warm food put inside. | d) Let food cool down first. |
