Manual for DVI73BP
Uploaded: Nov. 21, 2025, 8:29 p.m.
Manual Publish Date: 2001-01-01

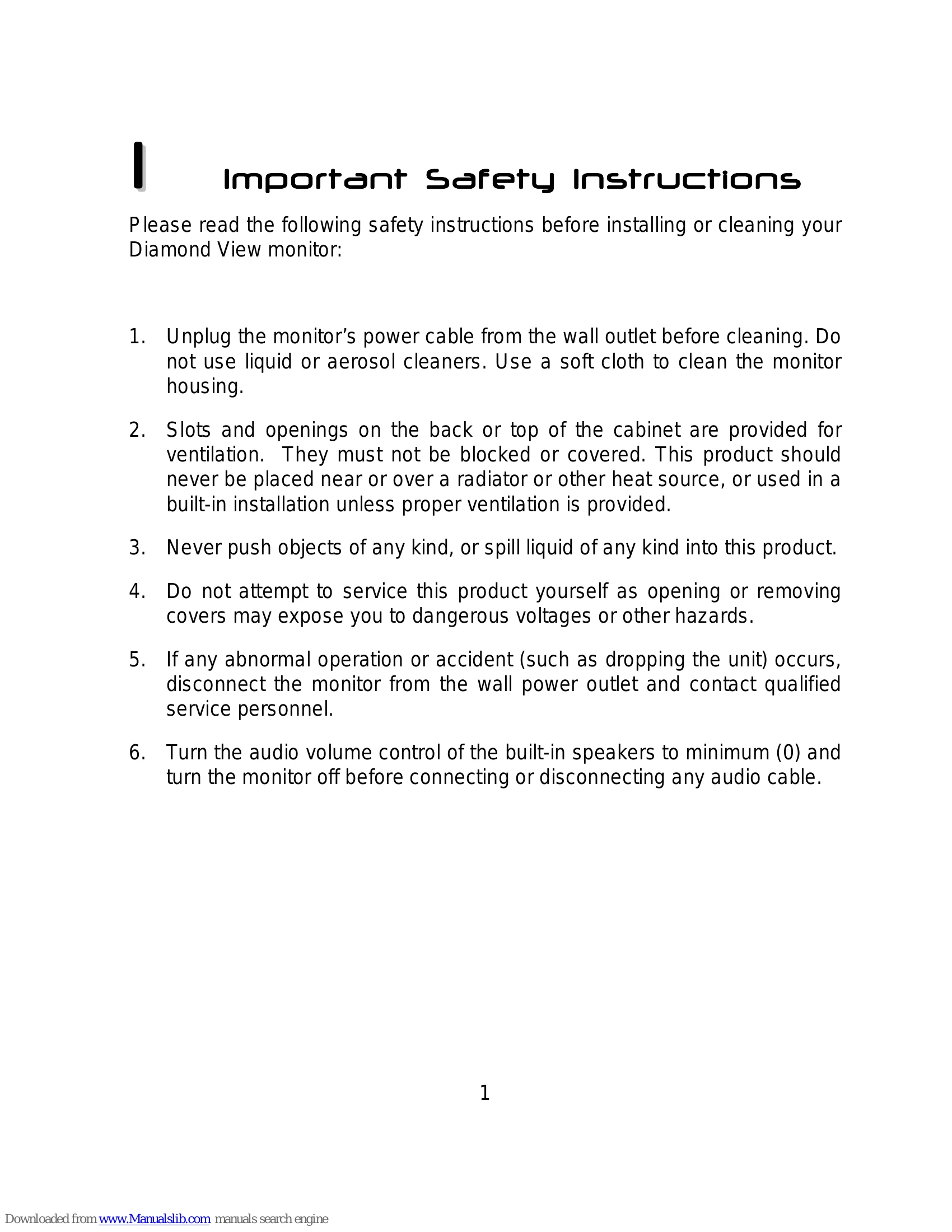

- Important Safety Instructions: Unplug before cleaning, ensure proper ventilation, do not spill liquids, avoid self-servicing, disconnect in case of malfunction, and turn audio volume to minimum before connecting audio cables.
- Features: XGA resolution, high brightness and contrast, true color display, ratiometric expansion, auto-adjustment, Plug and Play compatibility, slim design, low weight and power consumption, power saving mode, on-screen display, and built-in speakers.
- Hardware Installation: Connect power to computer and monitor, connect the monitor's D-sub cable to the computer's VGA output, connect the audio cable, and plug the power cord into an AC socket.
- Windows Driver Installation: For Windows 95, 98, 2000, Me, and XP, the system automatically detects the monitor and loads native Plug and Play drivers.
- Setting the Display Resolution: Use the monitor's native resolution (1280 x 1024) for optimal performance. Adjust resolution in Windows Display Properties or MacOS System Preferences.
- Adjusting the Monitor: Use the 'Auto' button for initial optimization, or manually adjust using the On-Screen Display (OSD) menu for brightness, contrast, position, color, and tracking.
- Restoring Factory Defaults: Access the OSD, select 'Setup', then 'Reset' to restore factory settings.
Troubleshooting and error codes
| Problem | Solution |
|---|---|
| Image is blurred | Read Chapter 6 (Setting the Display Resolution) and Chapter 7 (Adjusting the Monitor). Ensure correct resolution and refresh rate. Check VGA extension cable. Use native resolution if blurriness occurs at lower resolutions. |
| Image looks yellow, blue, or pink | Check for a loose VGA signal cable or connector. Inspect the VGA signal cable for damage. |
| No image is displayed | Check if the power LED is lit and green. If 'NON PRESET MODE' appears, check Chapter 6. If LED is orange, it's in power saving mode; wake the computer. Ensure the monitor is plugged in and the power switch is on. |
| Image is distorted, flashes, or flickers | Ensure the monitor's signal cable is securely connected. Check Chapter 6 and 7 for correct resolution, refresh rate, and adjustments. |
| Image is displaced in one direction | Use the 'Hor. Position' adjustment in the monitor's OSD Geometry menu. Ensure correct resolution, refresh rate, and make adjustments. |
